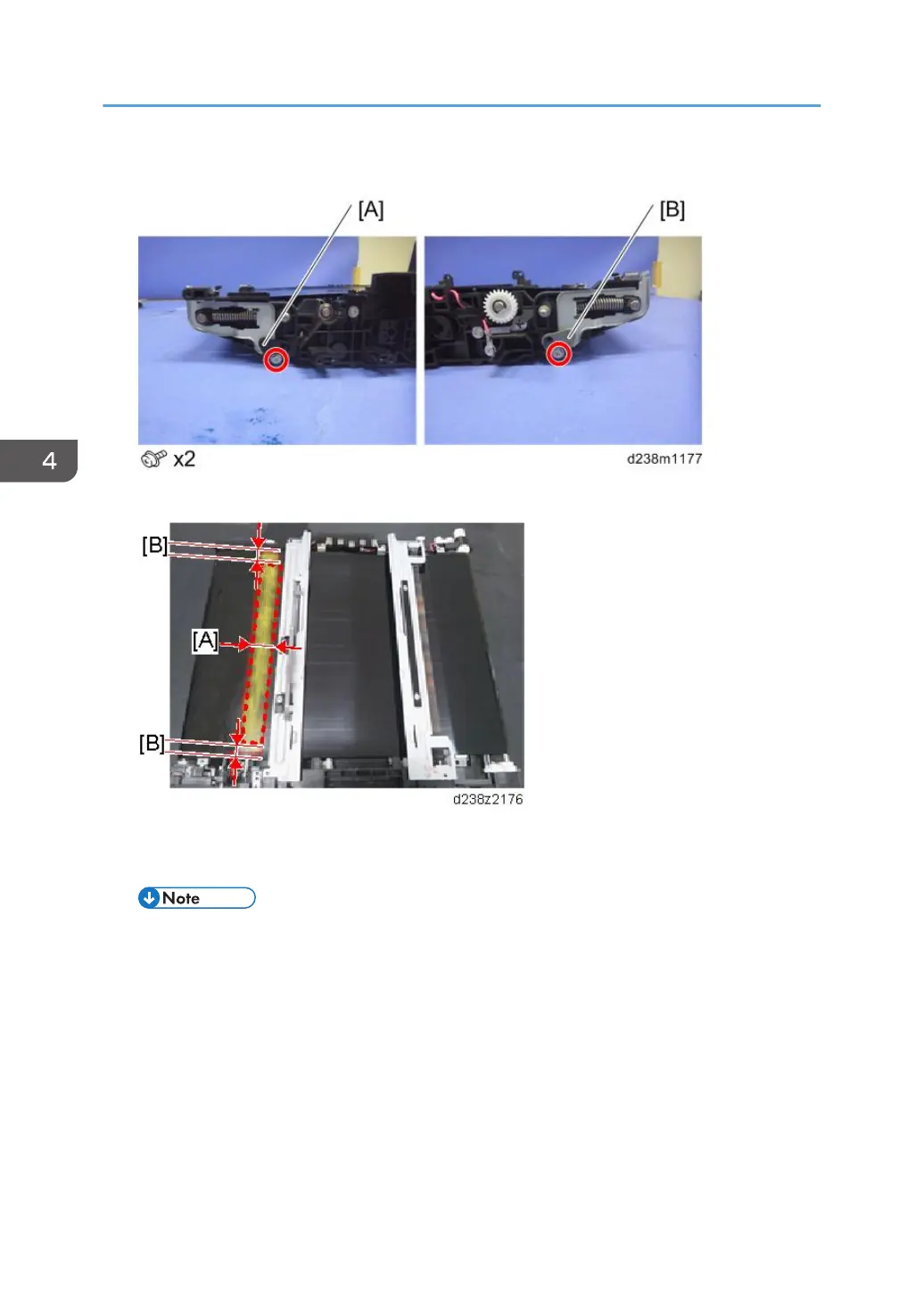

6. Attach the tension fixing frames [A] and [B] (front side: black, rear side: gray).
7. Put toner on the image transfer belt.
[A]: 20mm or more
[B]: About 5mm
• It is not necessary to specify the color of the toner, though yellow toner is used in the example
above.
8. Attach the image transfer cleaning unit. (page 570)
