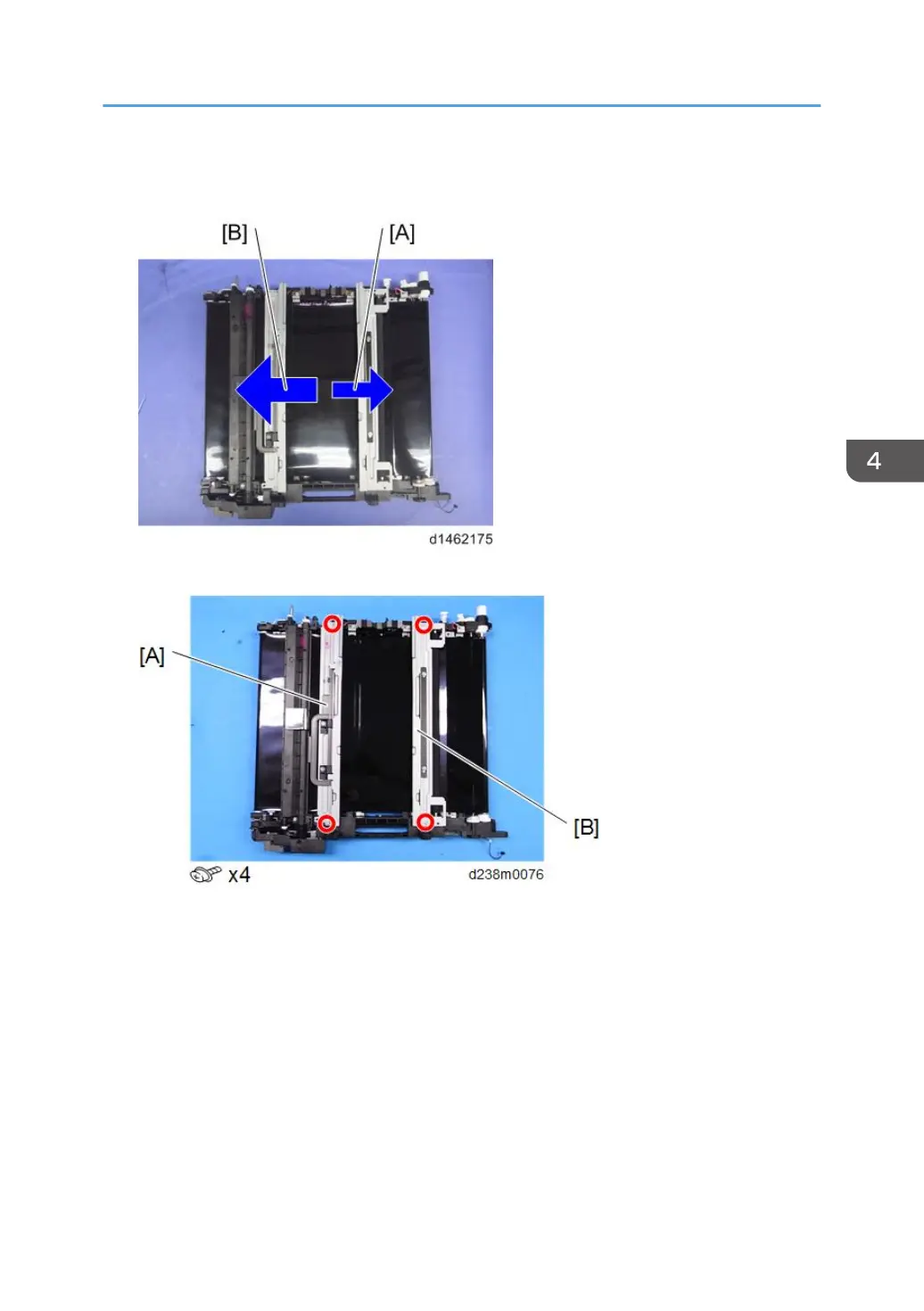

9. Rotate the image transfer belt about 10mm [A] in the reverse direction, then turn it

forward one complete turn [B].

10. Attach the brackets [A] [B]

Image Transfer Unit

581
