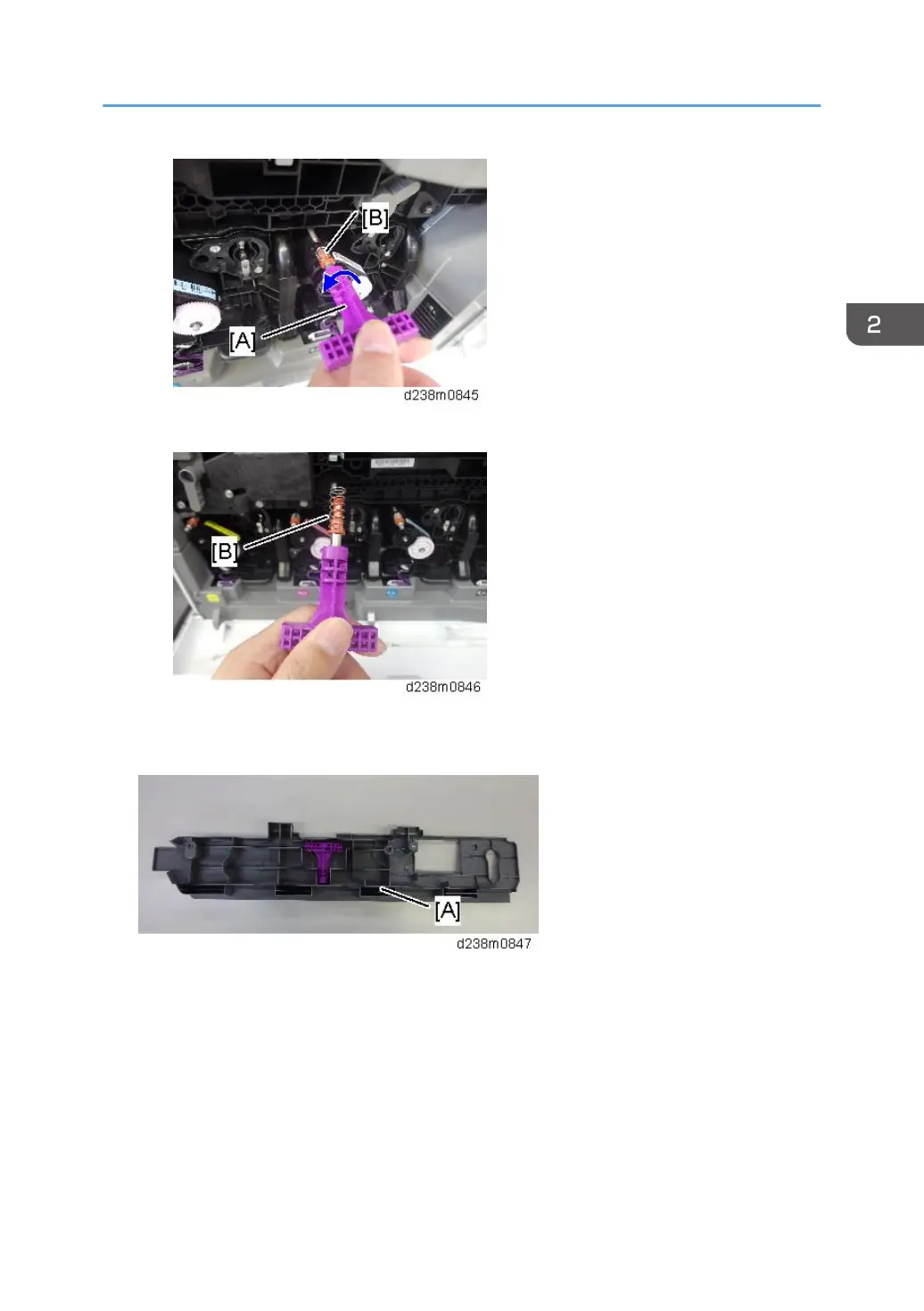

• Keep winding until the pin [B] is removed from the PCDU. Discard the pin.
2. Wind up the other seals (Y, M, and C) in the same way.
3. Store the winding lever in the back of the image transfer front cover [A] as shown.
