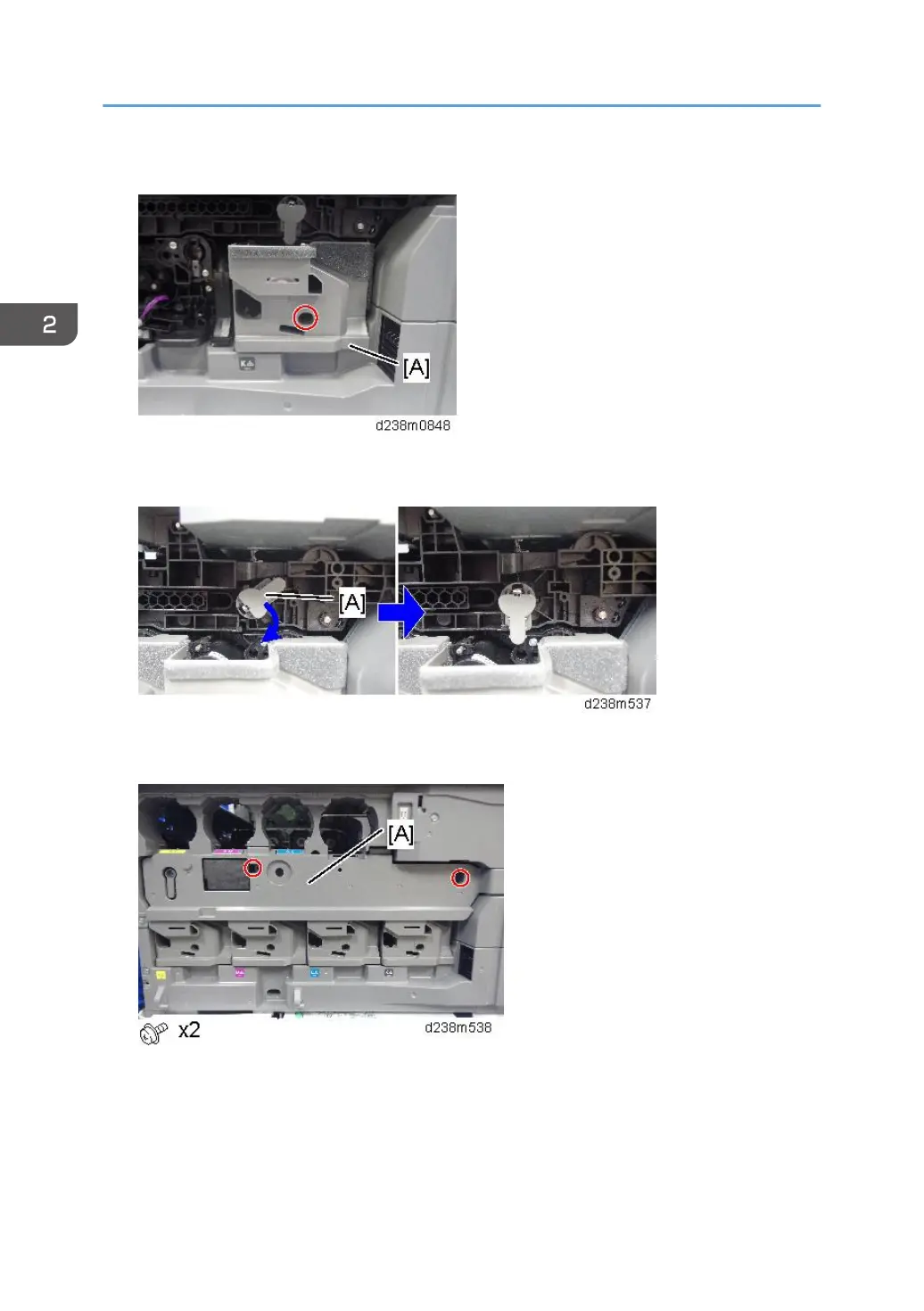

4. Attach the PCDU cover [A] provided with the accessories (all PCDUs).
5. Rotate the ITB contact/separation lever [A] clockwise, and set it to the position in the
following picture.
6. Attach the image transfer front cover [A] with the two screws (M3×8; provided with the
accessories).
7. Close the front cover.
