Operator Manual
40
of 44 SPR2-310.620.30.02.02
System Description

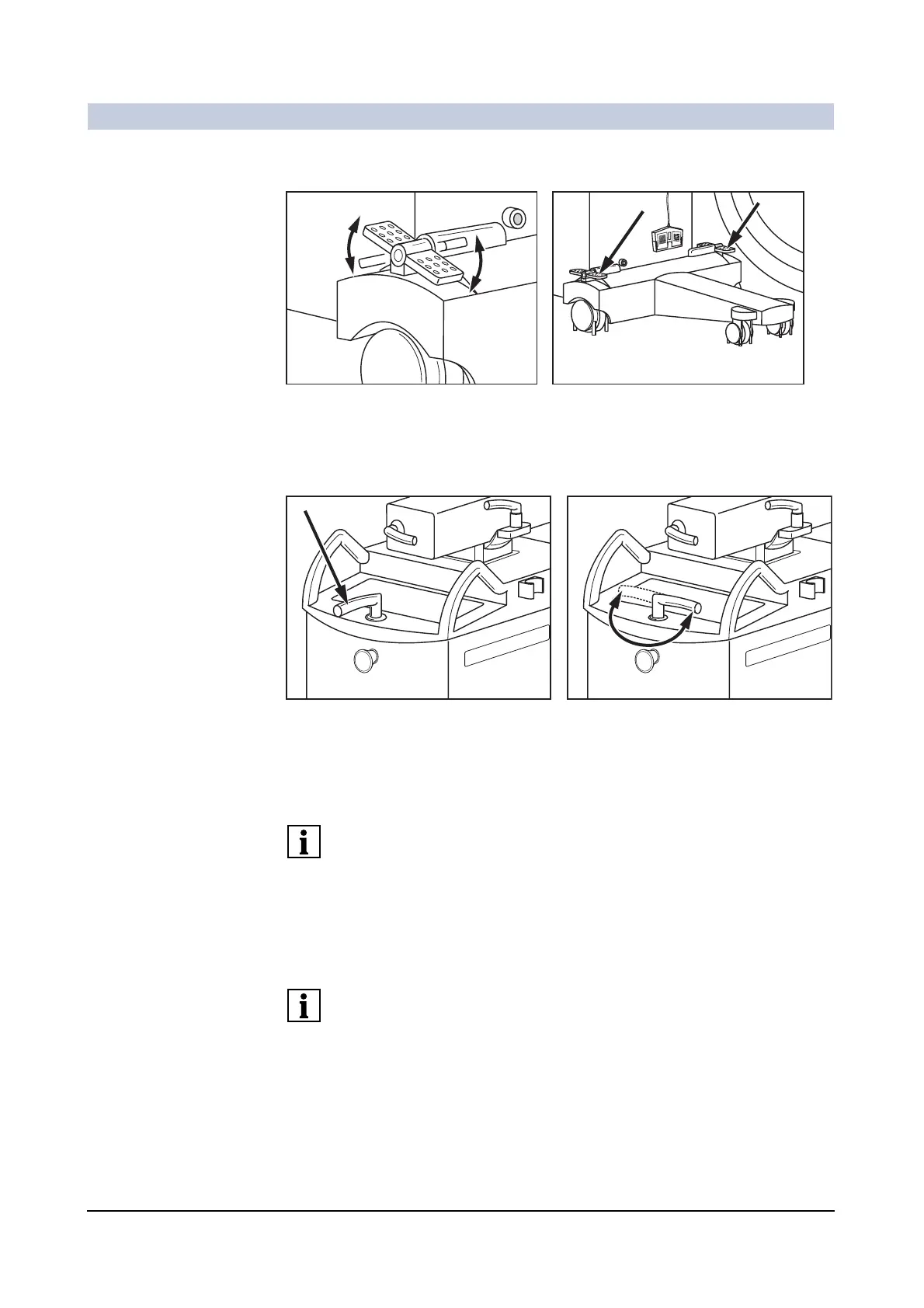

Driving the unit
(1) Foot brake locked (pedal tilted)
(2) Foot brake released (pedal horizontal)
â—† Release the foot brake.
(1) Steering lever shown in the position for forward travel
(2) The steering lever can be locked into position for transverse travel to the right
or left
â—† Lift the steering lever and turn it in the desired direction.
The steering lever can be locked into three different positions. One is for move-
ment straight ahead, the others for transverse travel to the right or left.
â—† Move the C-arm system by hand.
– If the steering lever is in a transverse position, the C-arm system moves
parallel to the lever position.
When transporting the C-arm system make sure there are no obstructions on the
floor.
(1)
(2)
STOP
(1)
STOP
(2)
