Benelli TNT125 Service Manual

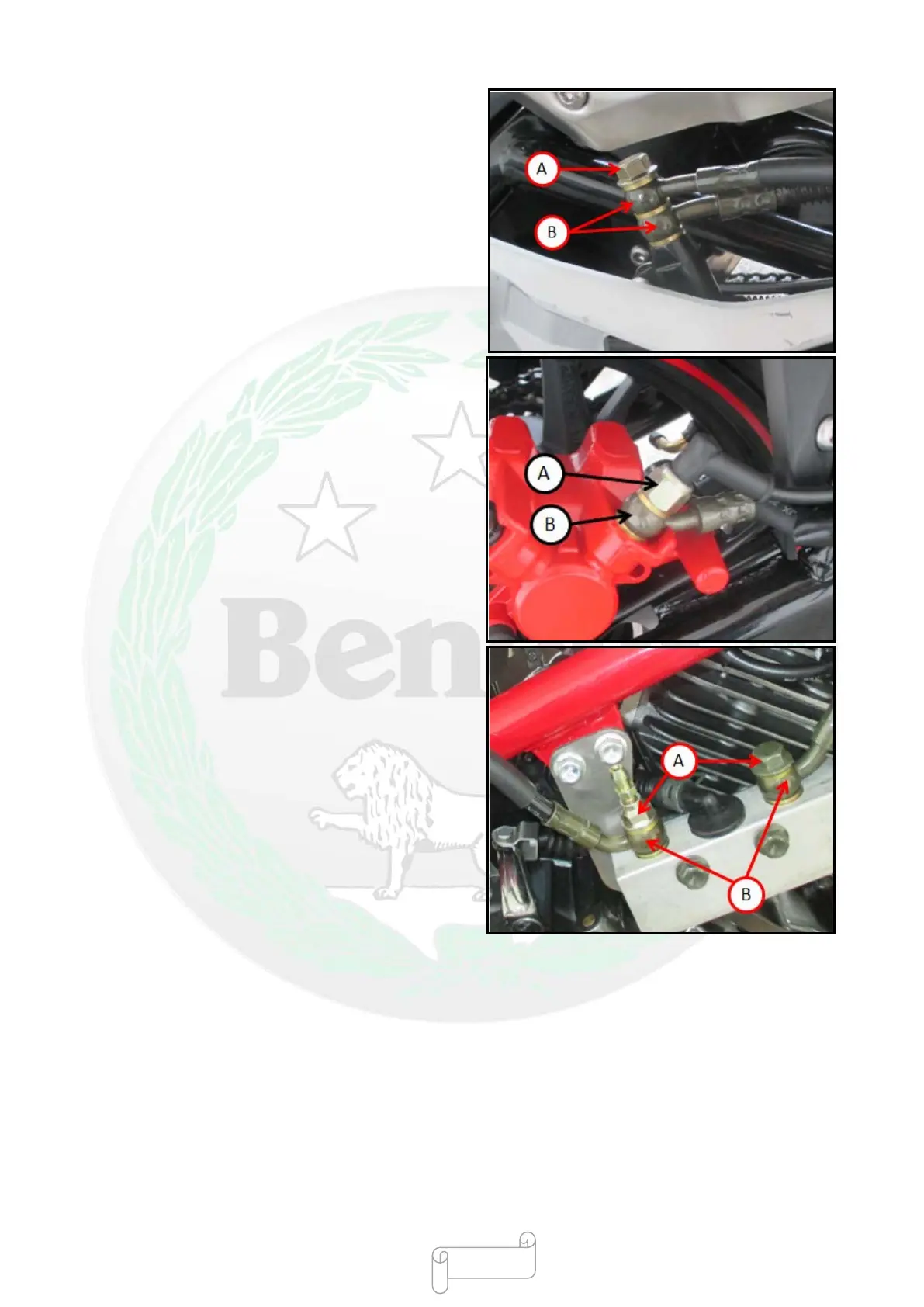

●All sides of brake pipe accessory are equipped with
gasket. The gasket shall be replaced with a new one
during installation.
●Tightening:
Locking torque of hollow bolt of brake hose: 30 N·m
Locking torque of joint nut of brake pipe: 18 N·m
(vehicle model equipped with CBS)
●When the brake hose is installed, avoid significant
bending, kinking, extrusion or twisting and arrange it
according to the section in the “Appendix” chapter:
“Winding Method of Cable, Wire and Hose”.
●Fill the brake hose with brake fluid after the brake
hose is installed. (See “Replacing Brake Fluid”).
- 102 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
