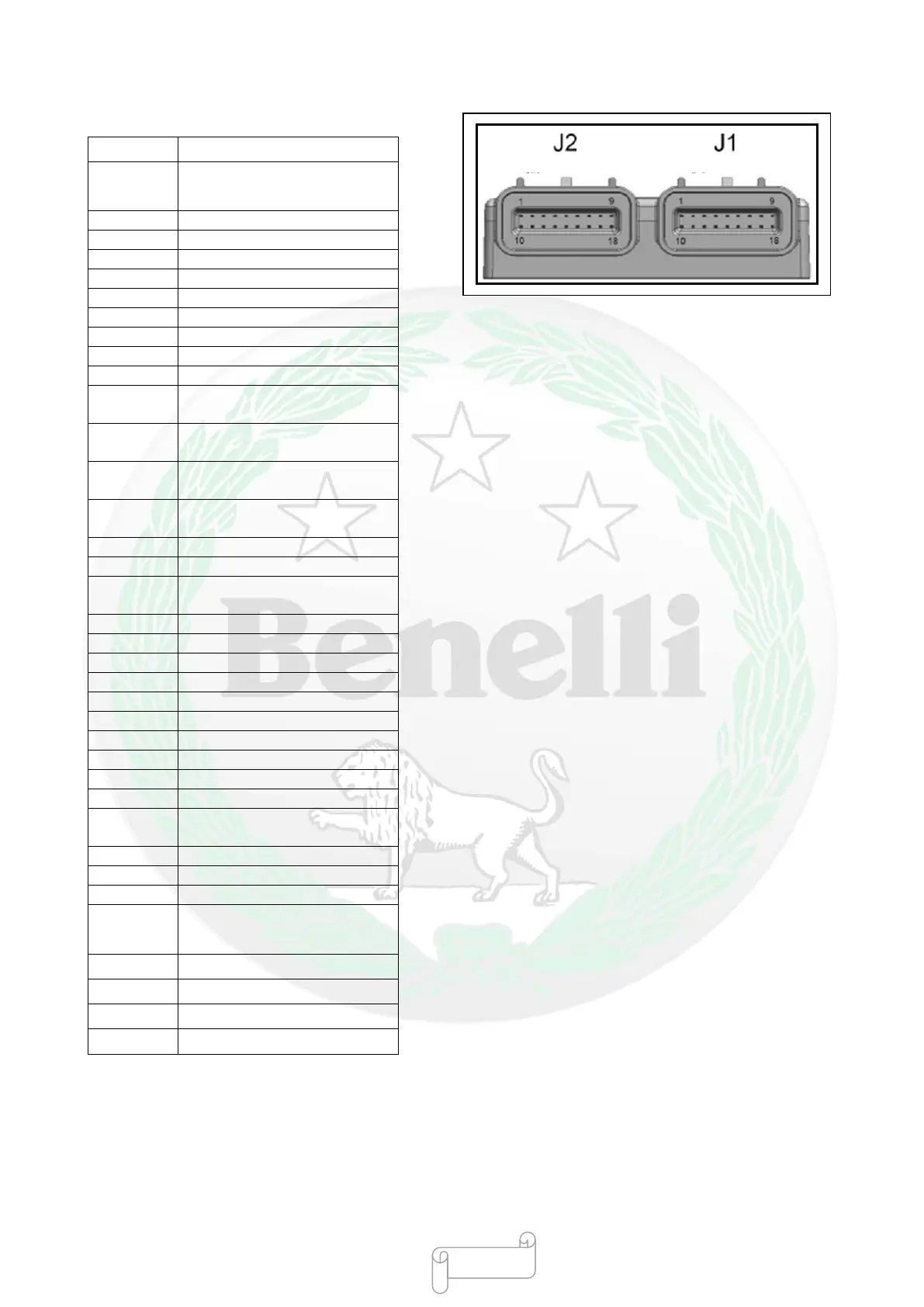

Number of ECU connector
Connector
Function description
J1-1
Idle speed control valve A
(high)
J1-2
Canister solenoid valve
J1-3
Fault light
J1-4
J1-5
J1-6
Tachometer
J1-7
CAN line signal (low)
J1-8
CAN line signal (high)
J1-9
Power (system) grounding
J1-10
J1-11
Idle speed control valve A
(low)
J1-12
Idle speed control valve B
(high)
J1-13
Idle speed control valve B
(low)
J1-14
Tipping sensor
signal (optional)
J1-15
J1-16
J1-17
Fuel pump control signal
circuit
J1-18
Neutral switch
J2-1
A Ignition coil drive A
J2-2
Power (system) grounding
J2-3
K line communication pin
J2-4
23 gear signal (low)
J2-5
A Nozzle A
J2-6
J2-7
Oxygen sensor heating
J2-8
Intake temperature signal
J2-9
Fuel pump control signal
J2-10
5V reference voltage
grounding
J2-11
Intake pressure signal
J2-12
Throttle position sensor
J2-13
23 gear signal (high)
J2-14
Cylinder cover temperature
signal
J2-15
Ignition power
J2-16
5V reference voltage
J2-17
Oxygen sensor signal
J2-18
Storage battery power
(Black)
(Grey)
- 124 -
