Benelli TNT125 Service Manual

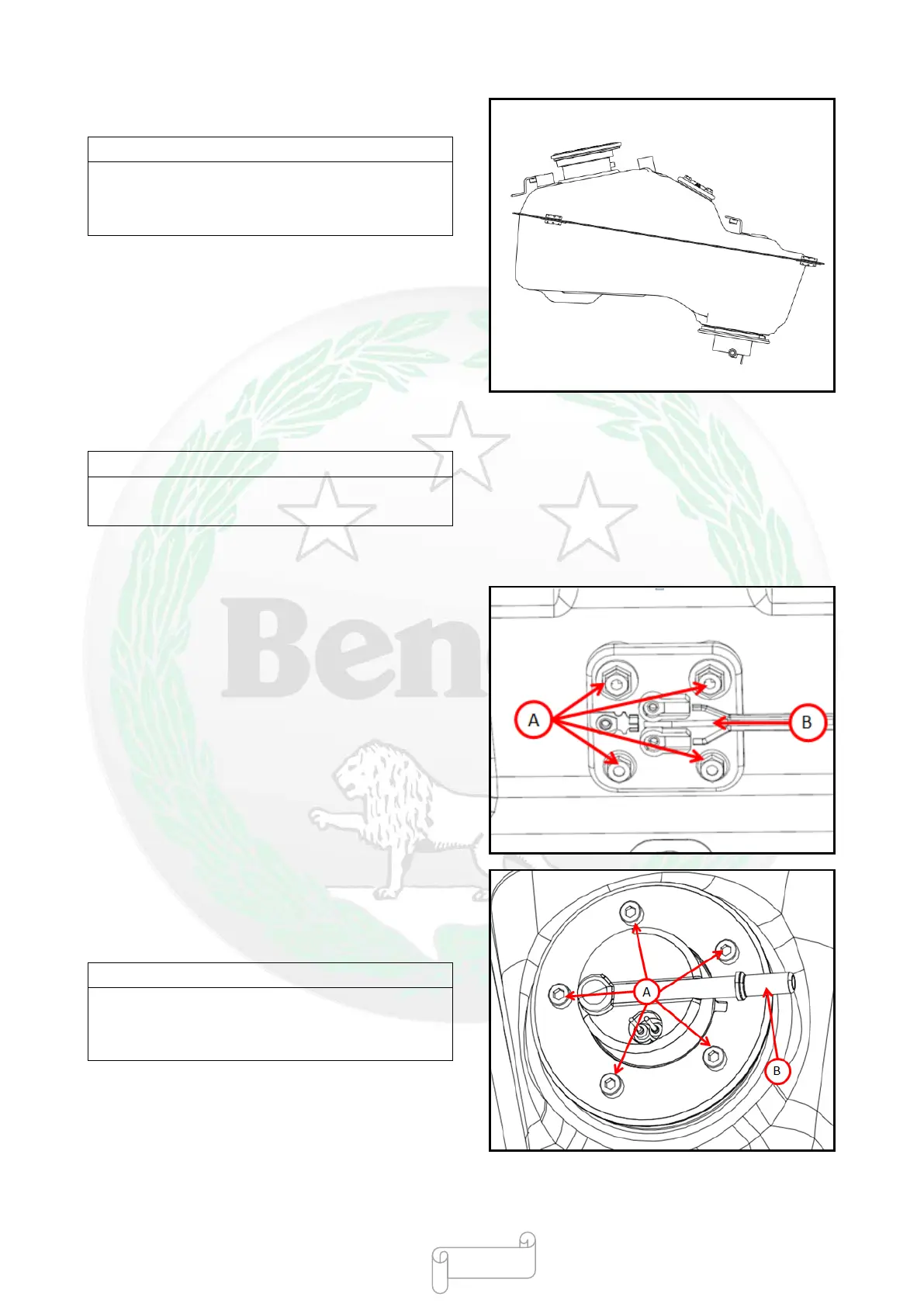

●Lift fuel tank, and unplug fuel pipe connected with
throttle;
Note:
Note to prevent fuel oil from flowing out when
unplugging the fuel pipe connected with throttle
●Place the fuel oil in the fuel tank in the container
prepared.
Warning:
In the process of placing oil, keep away from open
flame, to avoid fire
●Disassemble
Bolt [A]
Fuel level sensor [B]
●Disassemble
Screw [A]
Fuel pump [B]
Note:
Do not drop the fuel pump, especially prevent it
from dropping onto a hard surface, otherwise the
fuel pump may be damaged.
- 137 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
