Benelli TNT125 Service Manual

○When any fuel pipe is disconnected, the fuel will be
discharged due to the residual pressure in the pipe.
Therefore, it needs to cover the hose joint with a clean
cloth to, so as to avoid spilling fuel oil.
○When installing the hose, avoid bending, kinking,
squeez
ing or twisting the hose excessively. Do not
bend the hose as far as possible to avoid blocking the
fuel line
○Lay out the fuel pipe according to the section
“winding way of cable, wire and hose” in chapter
“appendix”.
○Do not add any fuel antifreeze chemicals to the fuel
oil so as not to corrode the fuel injection system or
cause deposits in the fuel injection system.
○If the operation method is incorrect, the high pressure
in the fuel pipe may cause a fuel oil leakage or fuel
pipe [A] to burst. Bending a
nd kinking is required
when checking fuel pipe.
★Replace the fuel pipe if any damage or expansion is
found!
○In order to maintain a correct mix of fuel and air (F /
A), intake
leakage shall not occur in EFI system.

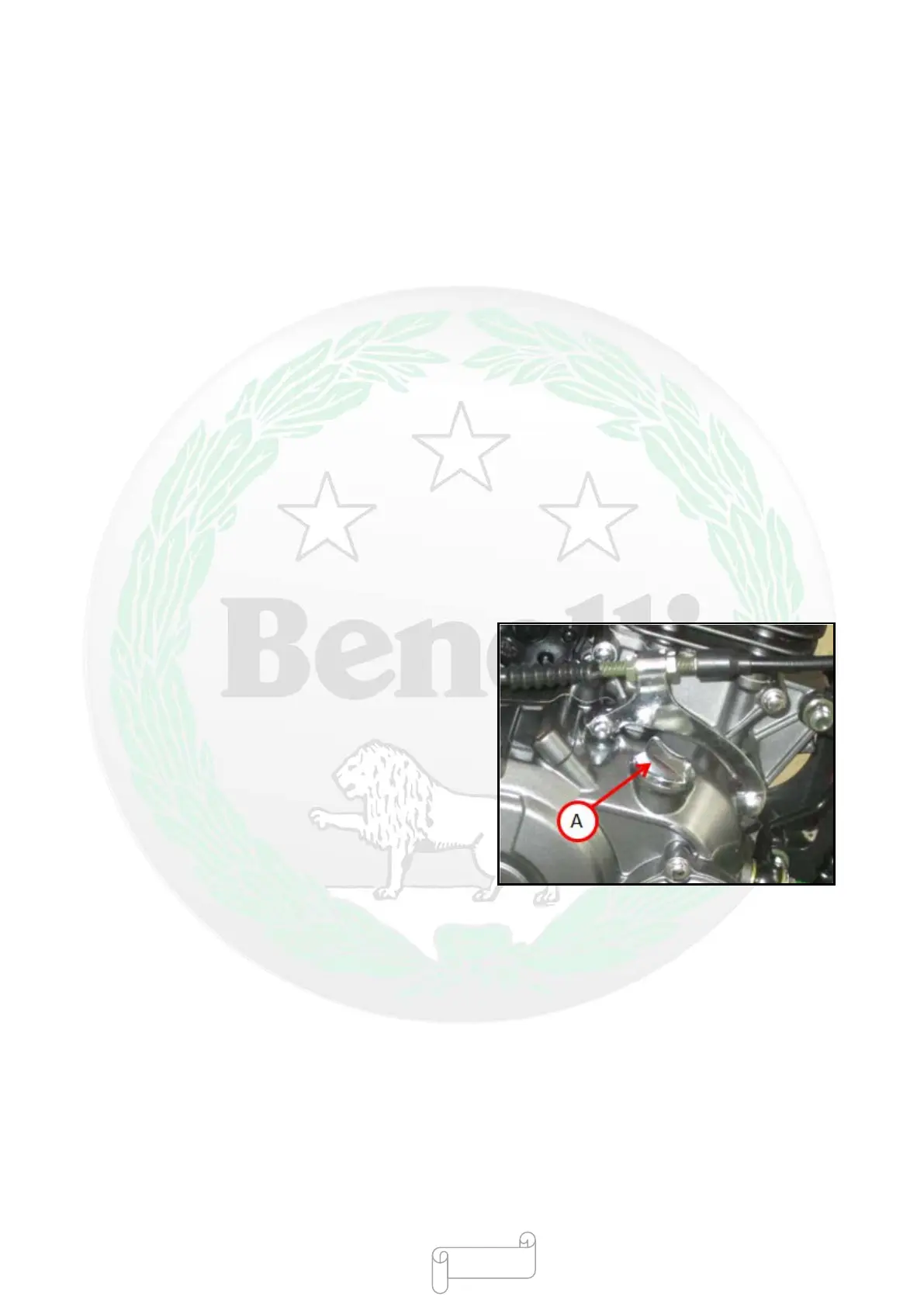

Screw in oil filler plug [A] after adding oil.
The locking torque of oil filler plug: tighten it with
hands.
- 142 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
