Benelli TNT125 Service Manual

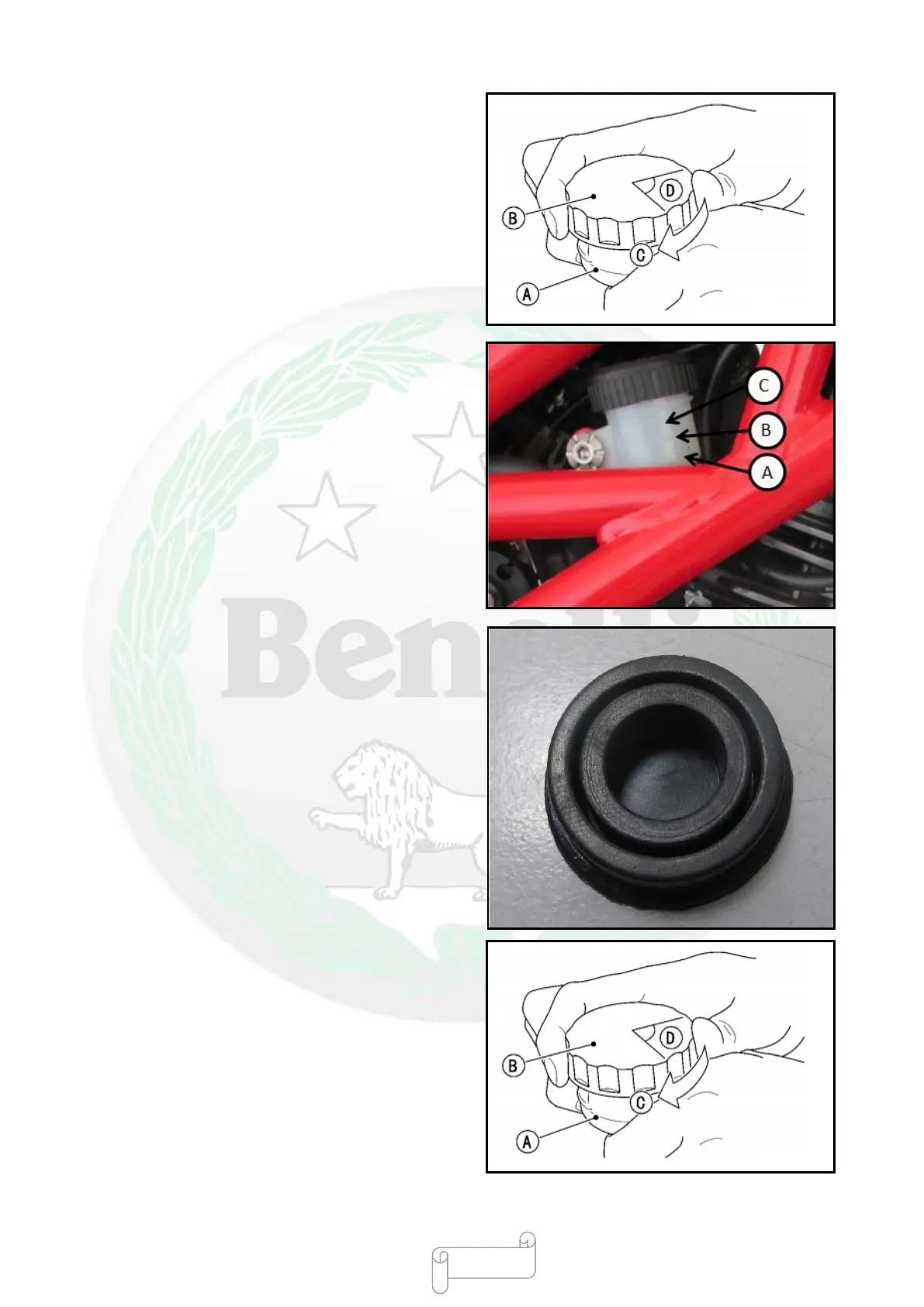

●Install the cover of rear brake fluid reservoir correctly
according to the following procedures.
○Tighten the cover [B] of rear brake fluid reservoir
with hands clockwise [C] first until a slight resistance is
felt, which indicates that the cover has been fixed to the
reservoir, then hold the reservoir [A] and rotate another
1/6 turn [D].
●Check whether the level of the brake fluid in the rear
brake fluid reservoir [A] is between the upper limit [C]
and the lower limit [B].
★If the level is below the lower limit, add the brake
fluid to the reservoir until the level reaches the high
fluid level line [B].
●Check the brake fluid diaphragm on the reservoir. If
there is any damage/wear, please replace the brake fluid
diaphragm.
●Check the brake fluid diaphragm on the reservoir.
★If there is any damage/wear, please replace the brake
fluid diaphragm.
●Install the cover of rear brake fluid reservoir correctly
according to the following procedures.
○Tighten the cover [B] of rear brake fluid reservoir
with hands clockwise [C] first until a slight resistance is
felt, which indicates that the cover has been fixed to the
reservoir, then hold the reservoir [A] and rotate another
1/6 turn [D].
- 75 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
