P a g e | 175

UCM6510 IP PBX User Manual

Version 1.0.20.31

Multiple Registrations per Extension

UCM6510 supports multiple registrations per extension so that users can use the same extension on

devices in different locations.

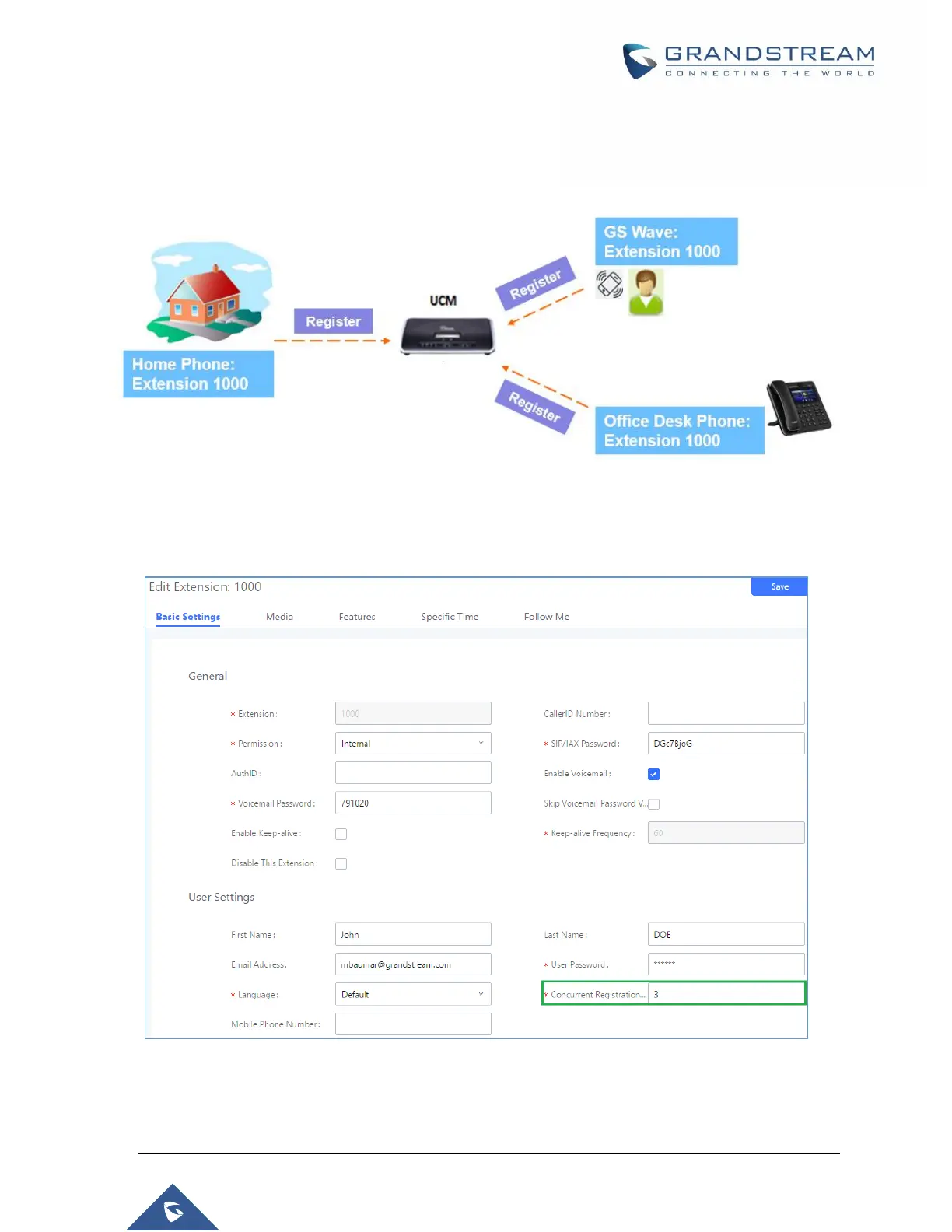

Figure 93: Multiple Registrations per Extension

This feature can be enabled by configuring option “Concurrent Registrations” under Web

GUIExtension/TrunkEdit Extension. The default value is 1 for security purposes. Maximum is 10.

Figure 94: Extension - Concurrent Registration
