P a g e | 129
UCM6510 IP PBX User Manual
Version 1.0.20.31

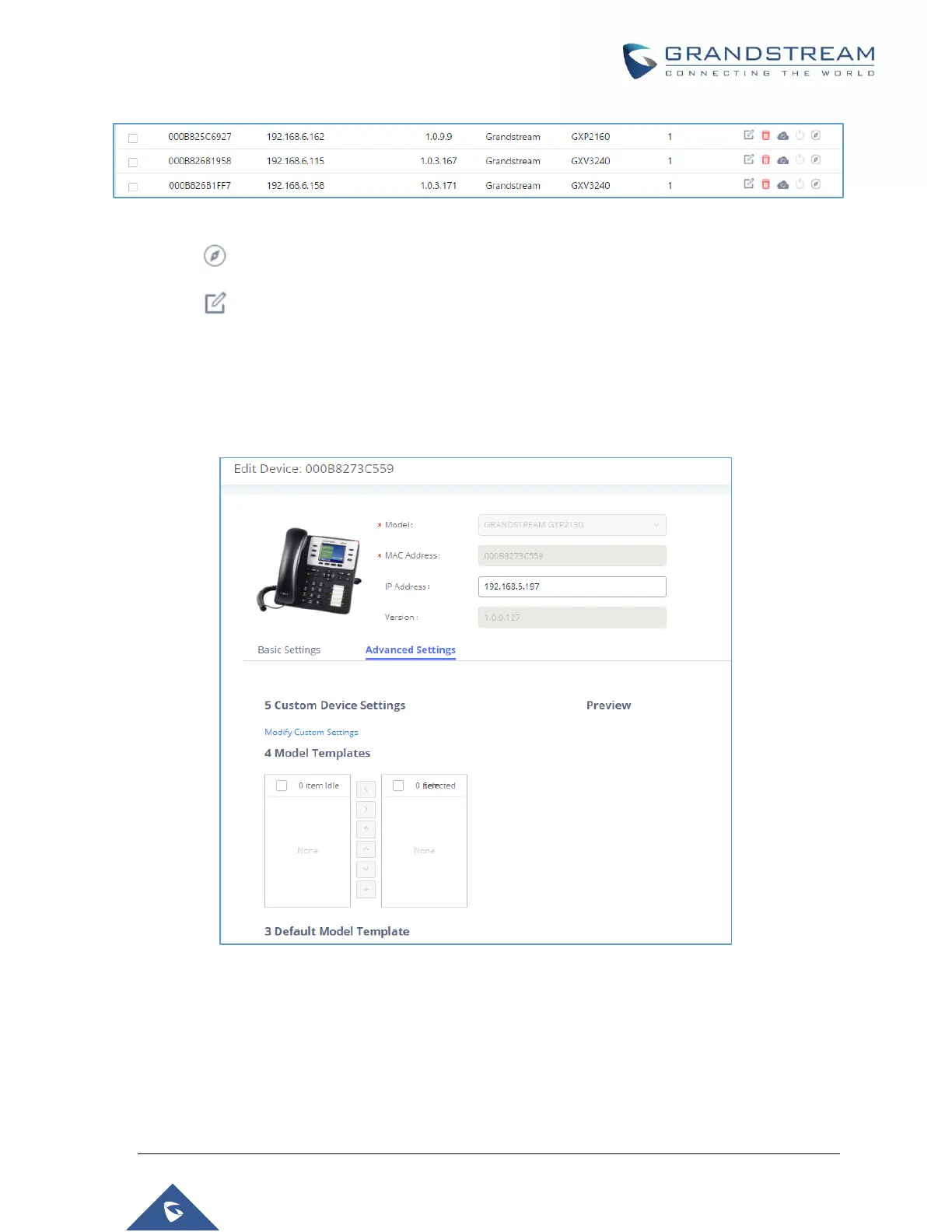

Figure 72: Manage Devices
1. Click on to access the Web GUI of the phone.
2. Click on to edit the device configuration.
A new dialog will be displayed for the users to configure “Basic” settings and “Advanced” settings.
“Basic” settings have the same configurations as displayed when manually creating a new device, i.e.,
account, line key and MPK settings; “Advanced” settings allow users to configure more details in a five-
level structure.
Figure 73: Edit Device
A preview of the “Advanced” settings is shown in the above figure. There are five levels configurations as
described in (1) (2) (3) (4) (5) below, with priority from the lowest to the highest. The configurations in all
levels will take effect for the device. If there are same options existing in different level configurations with
different value configured, the higher-level configuration will override the lower level configuration.
