LDAP Client Configurations
The configuration on LDAP client is useful when you use other LDAP servers. Here we provide an example
on how to configure the LDAP client on the UCM.
Assuming the remote server base dn is “dc=pbx,dc=com”, configure the LDAP client as follows:
 LDAP Server: Enter a name for the remote LDAP server
 Server Address: Enter the IP address or domain name for remote LDAP server.
 Base DN: dc=pbx,dc=com
 Username: Enter username if authentication is required. This field cannot exceed 64 characters
and can contain space.
 Password: Enter password if authentication is required.
 Filter: Enter the filter. Ex: (|(CallerIDName=%)(AccountNumber=%))
 Port: Enter the port number. Ex:389
 LDAP Name Attributes: Enter the name attributes for remote server
 LDAP Number Attributes: Enter the number attributes for remote server
 Client type: Protocol of LDAP or LDAPS.
 LDAP Client CA cert: Upload LDAP client CA certificate, The following file types are supported:
.crt .der and .pem.
 LDAP Client Private Key: Upload LDAP client private key.
The following figure gives a sample configuration for UCM6510 acting as an LDAP client.

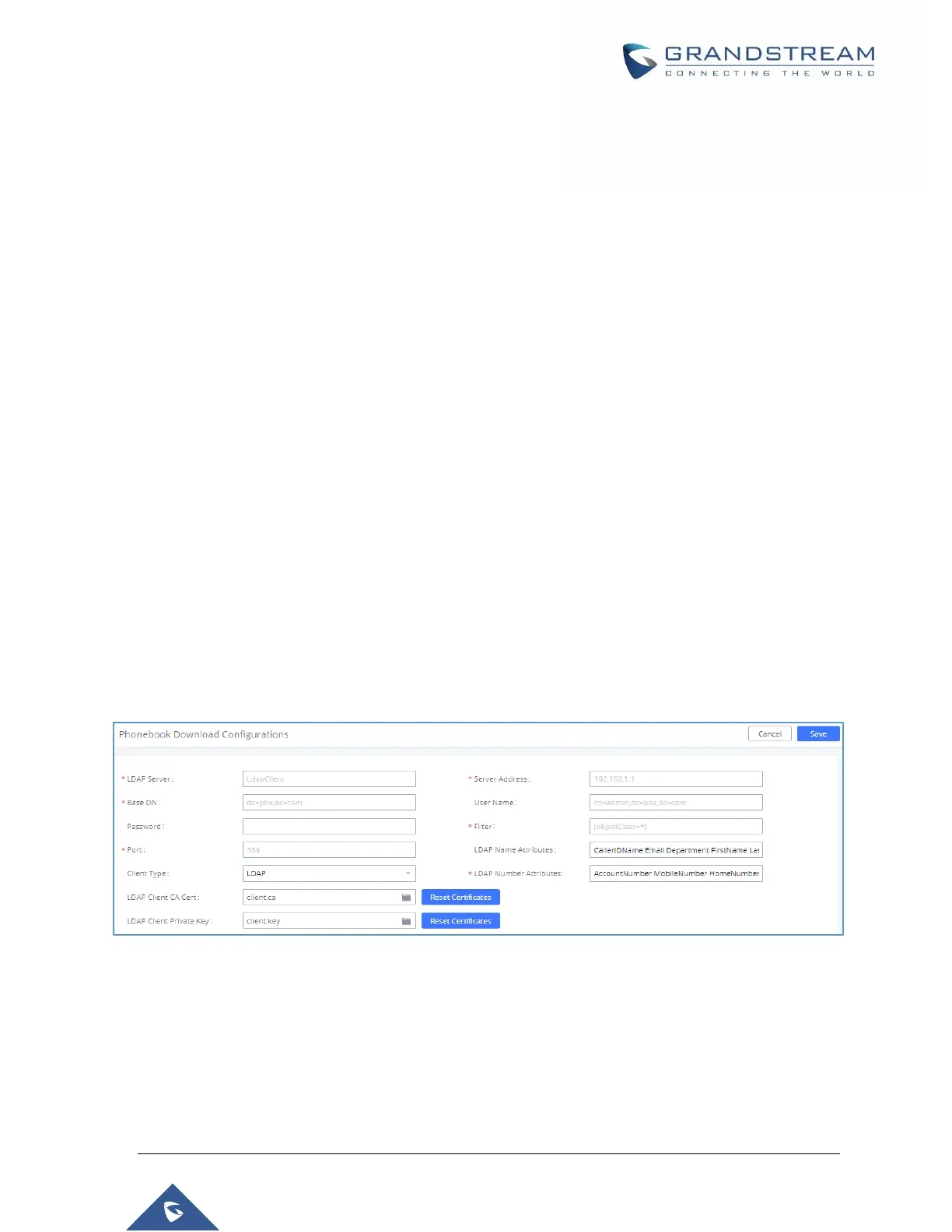

Figure 41: LDAP Client Configurations
To configure Grandstream IP phones as the LDAP clients for UCM, please refer to the following example:
 Server Address: The IP address or domain name of the UCM6510
 Base DN: dc=pbx,dc=com
 Username: Please leave this field empty
