P a g e | 59
UCM6510 IP PBX User Manual
Version 1.0.20.31

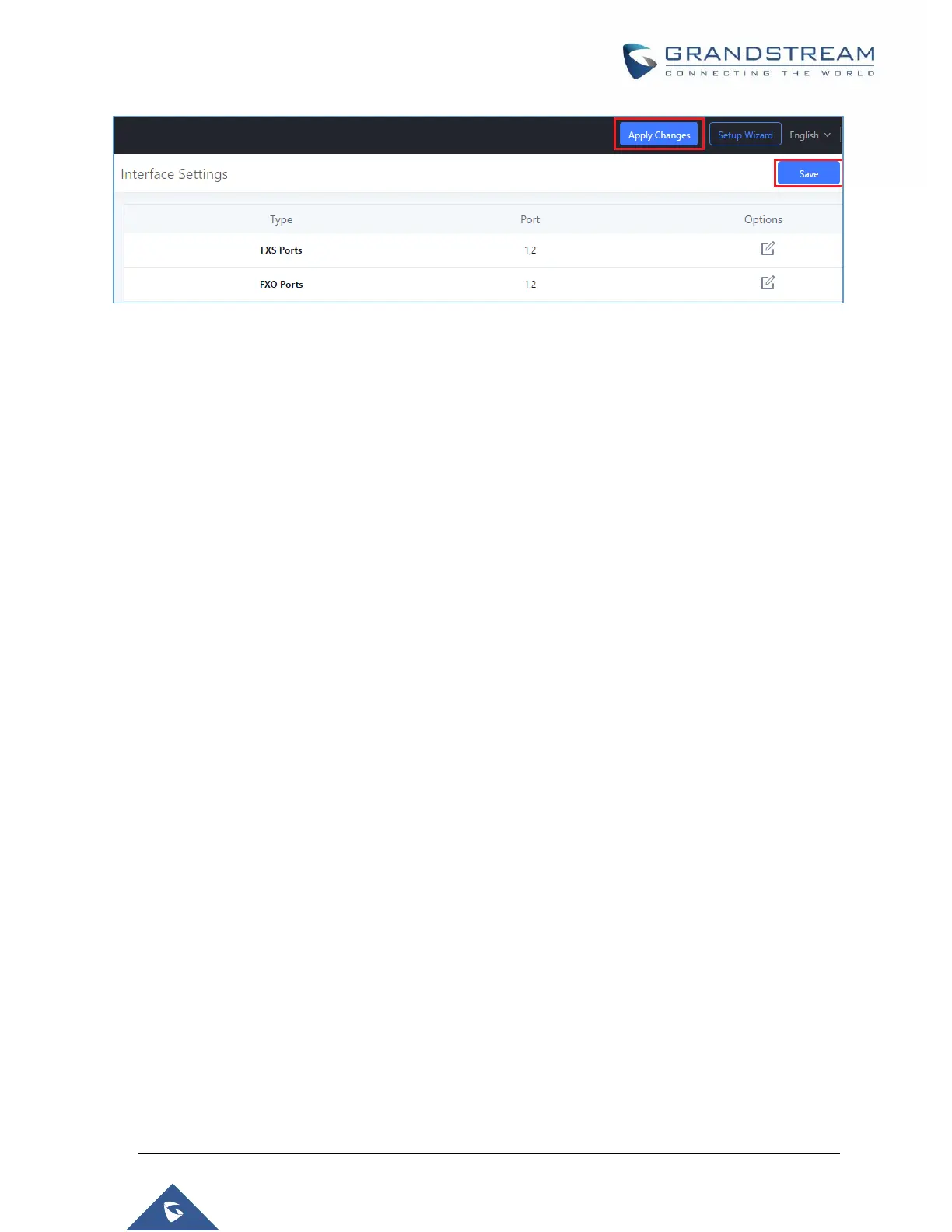

Figure 8: UCM6510 Web GUI: Apply Changes
Setting Up an Extension
Power on the UCM6510 and your SIP endpoint. Connect both devices to the same network and follow the
steps below to set up an extension.
1. Log into the UCM web portal and navigate to Extension/TrunkExtensions
2. Click on the "Add" button to start creating a new extension. The Extension and SIP/IAX
Password information will be used to register to this extension. To set up voicemail, the
Voicemail Password will be required.
3. To register an endpoint to this extension, go into your endpoint's web UI and edit the desired
account. Enter the newly created extension's number, SIP user ID, and password into their
corresponding fields on the endpoint. Enter the UCM's IP address into the SIP server field. If
setting up voicemail, enter *97 into the Voice Mail Access Number field. This field may be
named differently on other devices.
4. To access the extension's voicemail, use the newly registered extension to dial *97 and access
the personal voicemail system. Once prompted, enter the voicemail password. If successful, you
will now be prompted with various voicemail options.
5. You have now set up an extension on an endpoint.
