Grandstream Networks UCM6510 - Figure 9: UCM6510 Network Interface Method: Route; Figure 10: UCM6510 Network Interface Method: Switch

To Next Page

To Previous Page

P a g e | 65

UCM6510 IP PBX User Manual

Version 1.0.20.31

 Method: Route

WAN port interface is used for uplink connection; LAN port interface is used as a router. Please see the

sample diagram below.

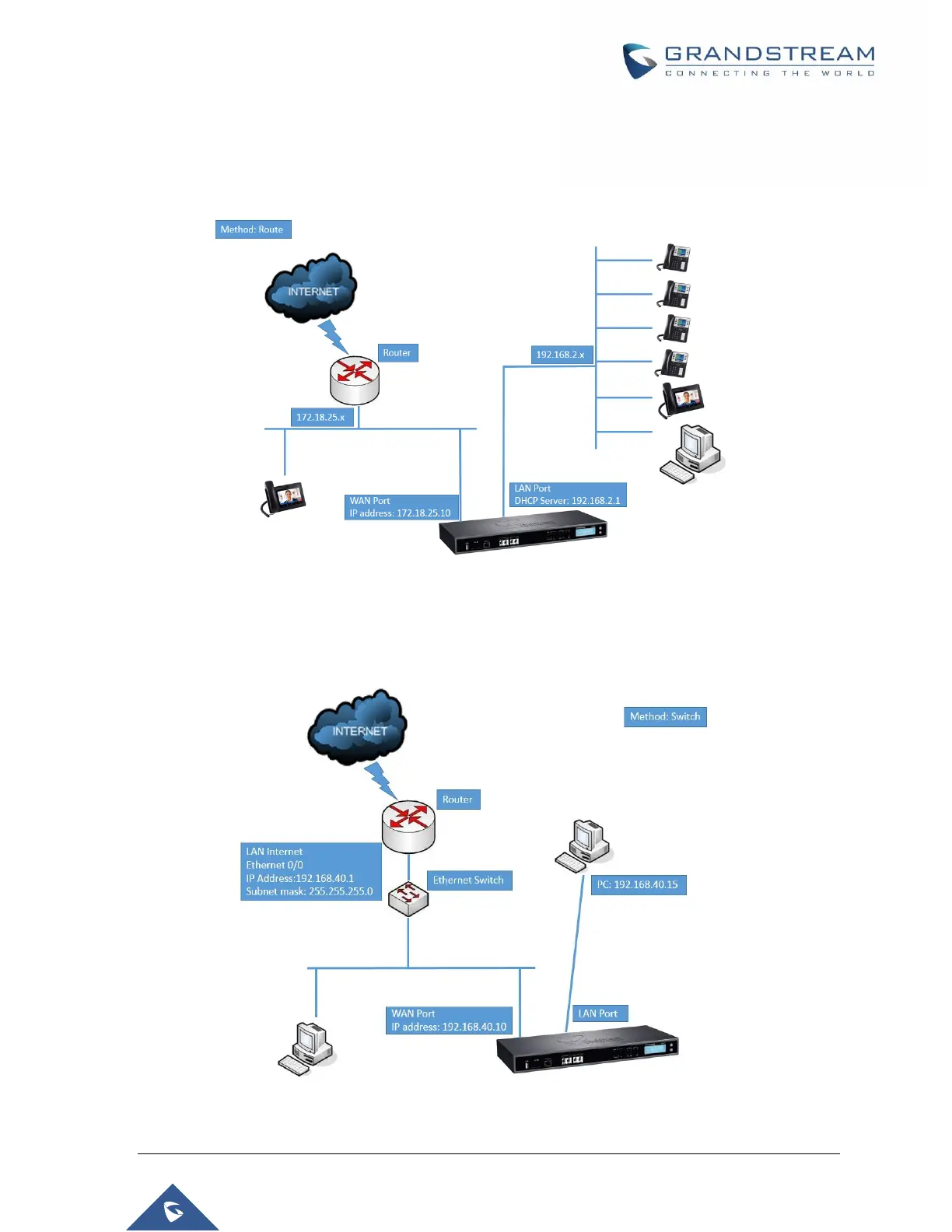

Figure 9: UCM6510 Network Interface Method: Route

 Method: Switch

WAN port interface is used for uplink connection; LAN port interface is used as bridge for PC

connection.

Figure 10: UCM6510 Network Interface Method: Switch
