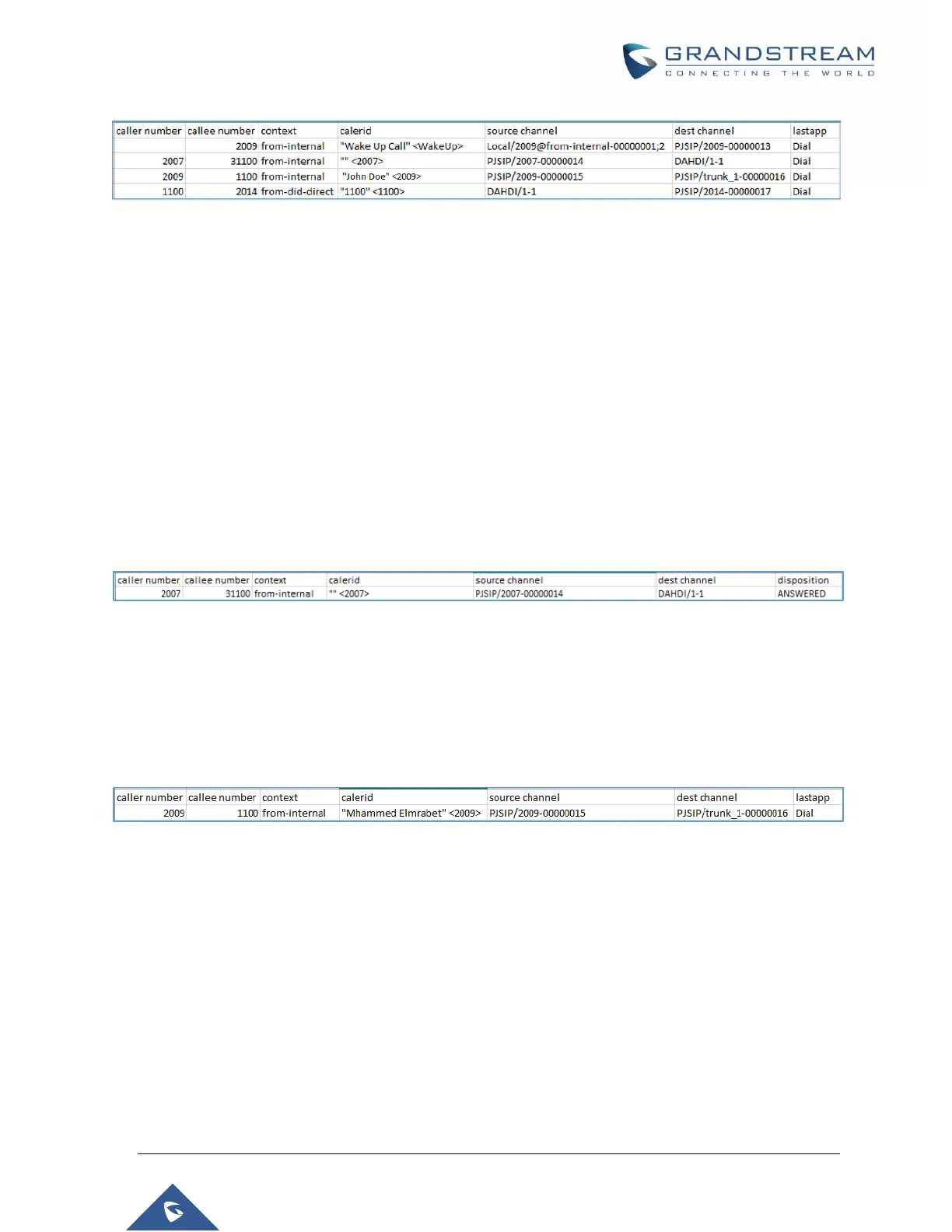

Figure 303: Downloaded CDR File Sample
Context
There are different context values that might show up in the downloaded CDR file. The actual value can
vary case by case. Here are some sample values and their descriptions.
from-internal: internal extension makes outbound calls.
ext-did-XXXXX: inbound calls. It starts with "ext-did", and "XXXXX" content varies case by case, which
also relate to the order when the trunk is created.
ext-local: internal calls between local extensions.
Source Channel, Dest Channel
Sample 1:
Figure 304: Downloaded CDR File Sample - Source Channel and Dest Channel 1
DAHDI means it is an analog call, FXO or FXS.
For UCM6510, DAHDI/(1-2) are FXO ports, and DAHDI(3-4) are FXS ports.
Sample 2:
Figure 305: Downloaded CDR File Sample - Source Channel and Dest Channel 2
"SIP" means it is a SIP call. There are three possible formats:
(a) PJSIP/NUM-XXXXXX, where NUM is the local SIP extension number. The last XXXXX is a random
string and can be ignored.
(c) PJSIP/trunk_X/NUM, where trunk_X is the internal trunk name, and NUM is the number to dial out
through the trunk.
(c) PJSIP/trunk_X-XXXXXX, where trunk_X is the internal trunk name and it is an inbound call from this
trunk. The last XXXXX is a random string and can be ignored.
There are some other possible values, but these values are almost the application name which are used
by the dialplan.
