IPv4 address - 192.168.66.4
IPv6 subnet - 2001:740:D::1/64
Configure the subnet mask for the above destination address. If left blank, the
default value is 255.255.255.255.
Example: 255.255.255.0
Configure the IPv4 or IPv6 gateway address so that the UCM6510 can reach the
destination via this gateway. Gateway address is optional.
Example:
192.168.40.5 or 2001:740:D::1
Specify the network interface “LAN”, “WAN” or “Data trunk 1” (“Data Trunk 1”
option will show only when the data trunk is enabled) on the UCM6510 to reach the
destination using the static route.

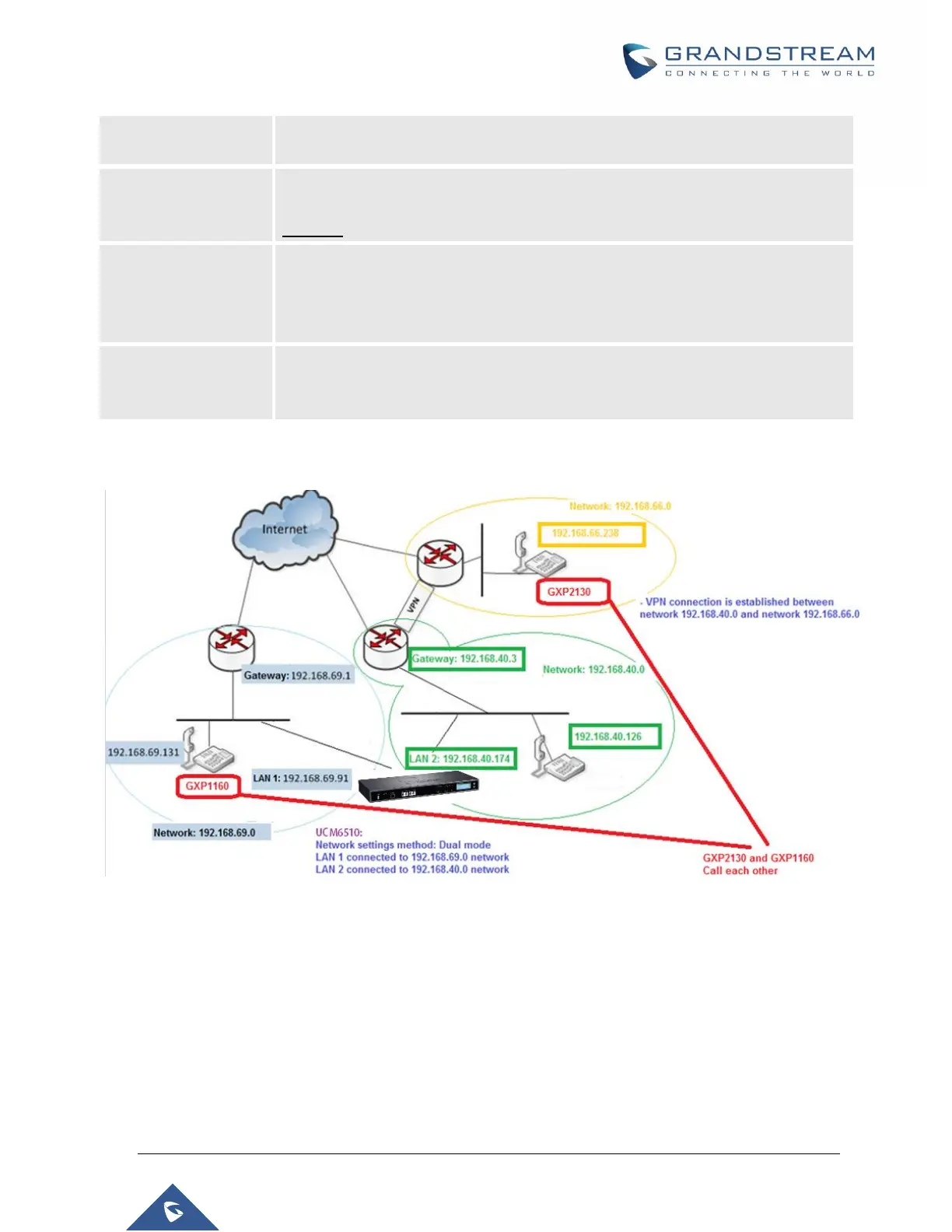

The following diagram shows a sample application of static route usage on UCM6510.
Figure 17: UCM6510 Static Route Sample
The network topology of the above diagram is as below:
Network 192.168.69.0 has IP phones registered to UCM6510 LAN 1 address
Network 192.168.40.0 has IP phones registered to UCM6510 LAN 2 address
Network 192.168.66.0 has IP phones registered to UCM6510 via VPN
Network 192.168.40.0 has VPN connection established with network 192.168.66.0
