The Phonebook DN field is the same “Phonebook Prefix” entry as when the user clicks on “Add” to create
a new phonebook. Therefore, if the user enters “phonebook” in “Phonebook DN” field in the CSV file, the
actual phonebook DN “ou=phonebook,dc=pbx,dc=com” will be automatically created by the UCM6510 once
the CSV file is imported.
In the CSV file, users can specify different phonebook DN fields for different contacts. If the phonebook DN
already exists on the UCM6510 LDAP Phonebook, the contacts in the CSV file will be added into the
existing phonebook. If the phonebook DN does not exist on the UCM6510 LDAP Phonebook, a new
phonebook with this phonebook DN will be created.
The sample phonebook CSV file in above picture will result in the following LDAP phonebook in the
UCM6510.

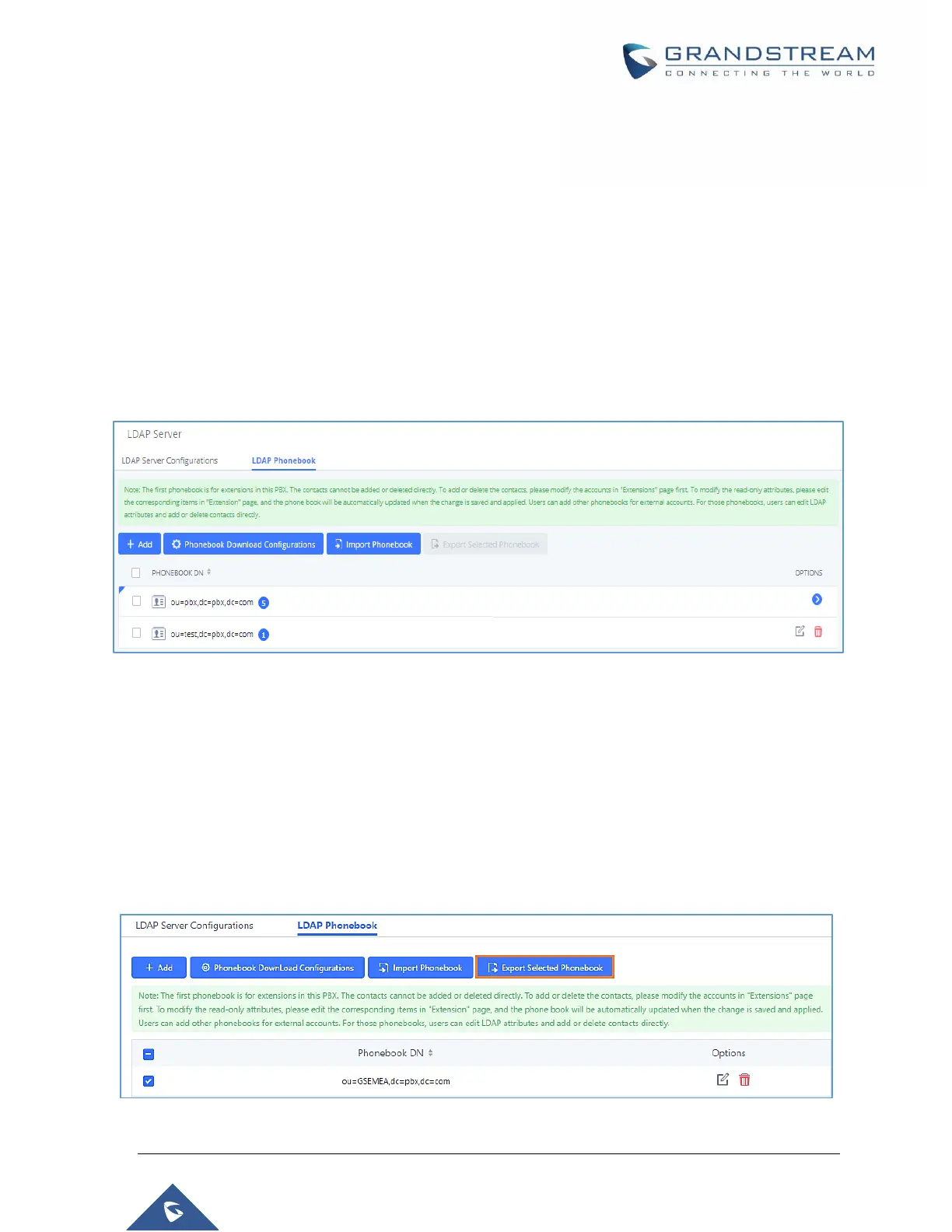

Figure 39: LDAP Phonebook After Import
As the default LDAP phonebook with DN “ou=pbx,dc=pbx,dc=com” cannot be edited or deleted in LDAP
phonebook section, users cannot import contacts that have "pbx" in the Phonebook DN field of the CSV
file.
Export phonebook to your computer from UCM6510 LDAP server
Select the checkbox for the LDAP phonebook and then click on “Export Selected Phonebook” to export
the selected phonebook. The exported phonebook can be used as a record or a sample CSV, VFC or
XML file for the users to add more contacts in it and import to the UCM6510 again.
Figure 40: Export Selected LDAP Phonebook
