DATA TRUNK
The UCM6510 E1/T1/J1 interface also supports data trunk function that allows users to access Internet.
Users can select HDLC, HDLC-ETH, Cisco and PPP protocol for the data trunk.
To use data trunk,
1. Go to Web GUIPBX SettingsInterface SettingsDigital Hardware page and click to create
a new group. Designate a channel for data trunk usage in the group setting.
2. Go to Web GUIExtension/TrunkData Trunks page, click on to edit the data trunk.
3. Save the configuration and click on “Apply Changes” for the change to take effect.
4. Once connected, the data trunk will periodically ping and check the status, with status indicator shown
for the data trunk on the web page. The status indicator shows if connected successfully.
5. If the user happens to lose connection or experience unstable connection, click on to reconnect to
help resolve the problem.

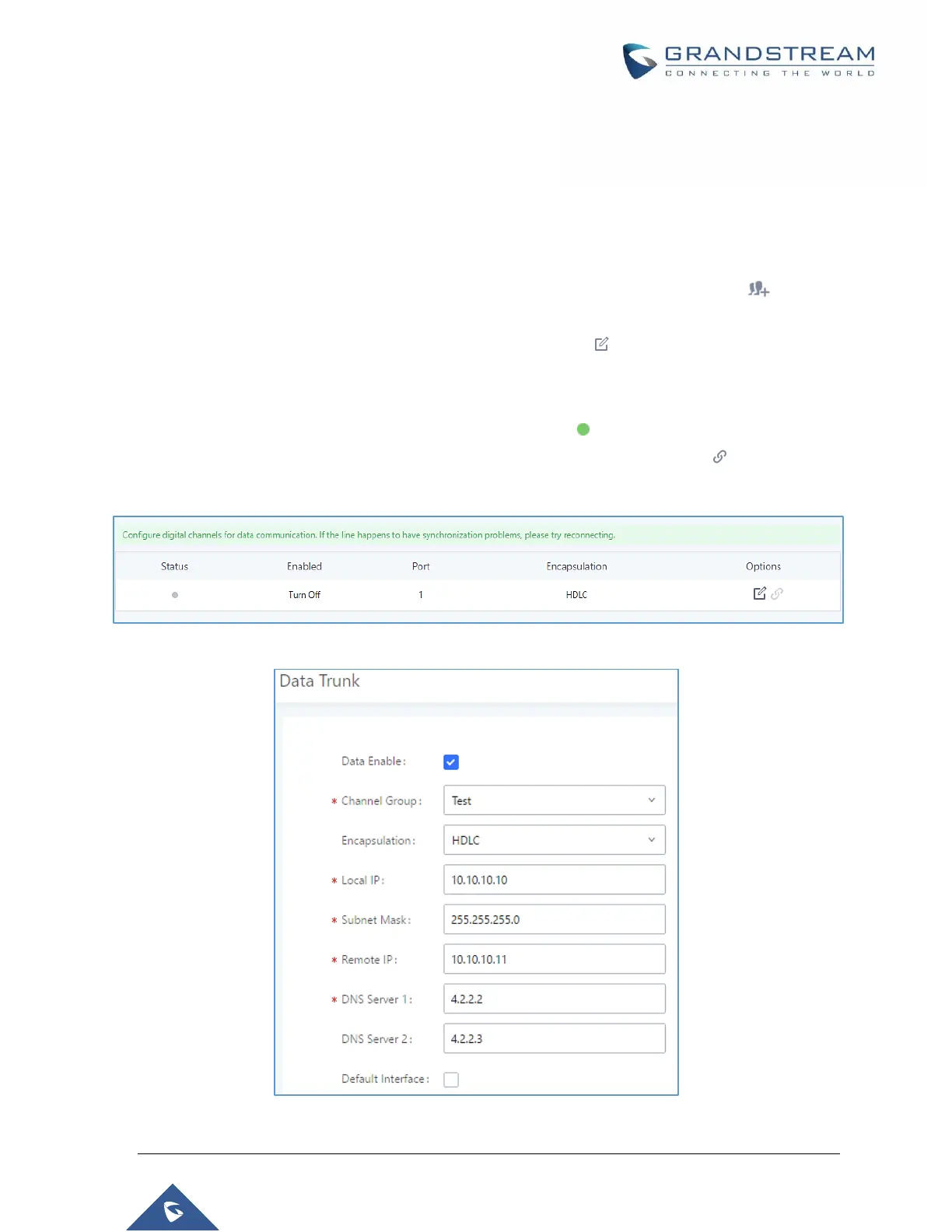

Figure 107: Data Trunk Web Page
Figure 108: Data Trunk Configuration
