P a g e | 267

UCM6510 IP PBX User Manual

Version 1.0.20.31

IVR

Configure IVR

IVR configurations can be accessed under the UCM6510 Web GUICall FeaturesIVR. Users could

create, edit, view and delete an IVR.

Note: UCM6510 now supports 500 IVR entry.

 Click on "Create New IVR" to add a new IVR.

 Click on to edit the IVR configuration.

 Click on to delete the IVR.

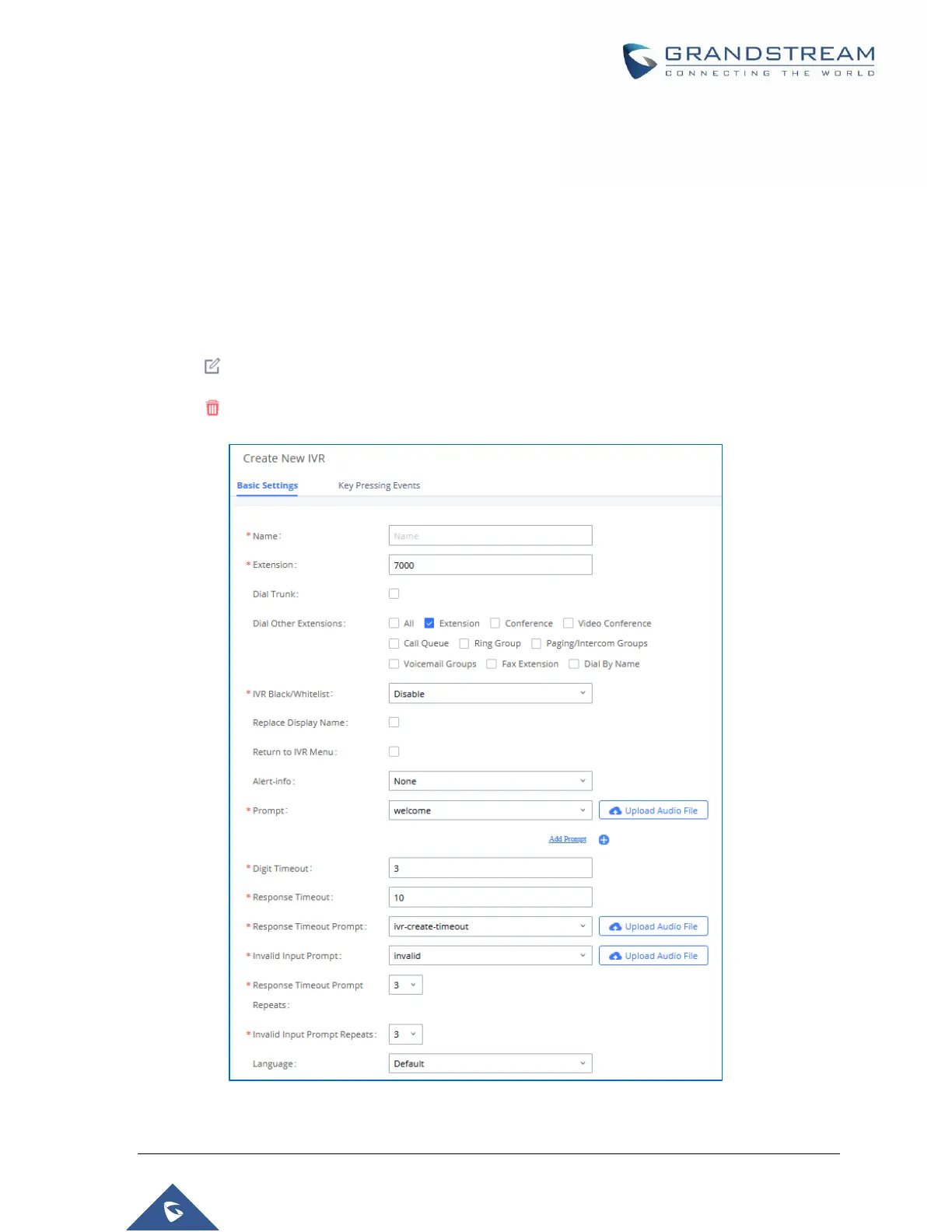

Figure 161: Create New IVR
