To manually add and bind a MAC address to an IP address, click on . The following
menu will then be displayed.

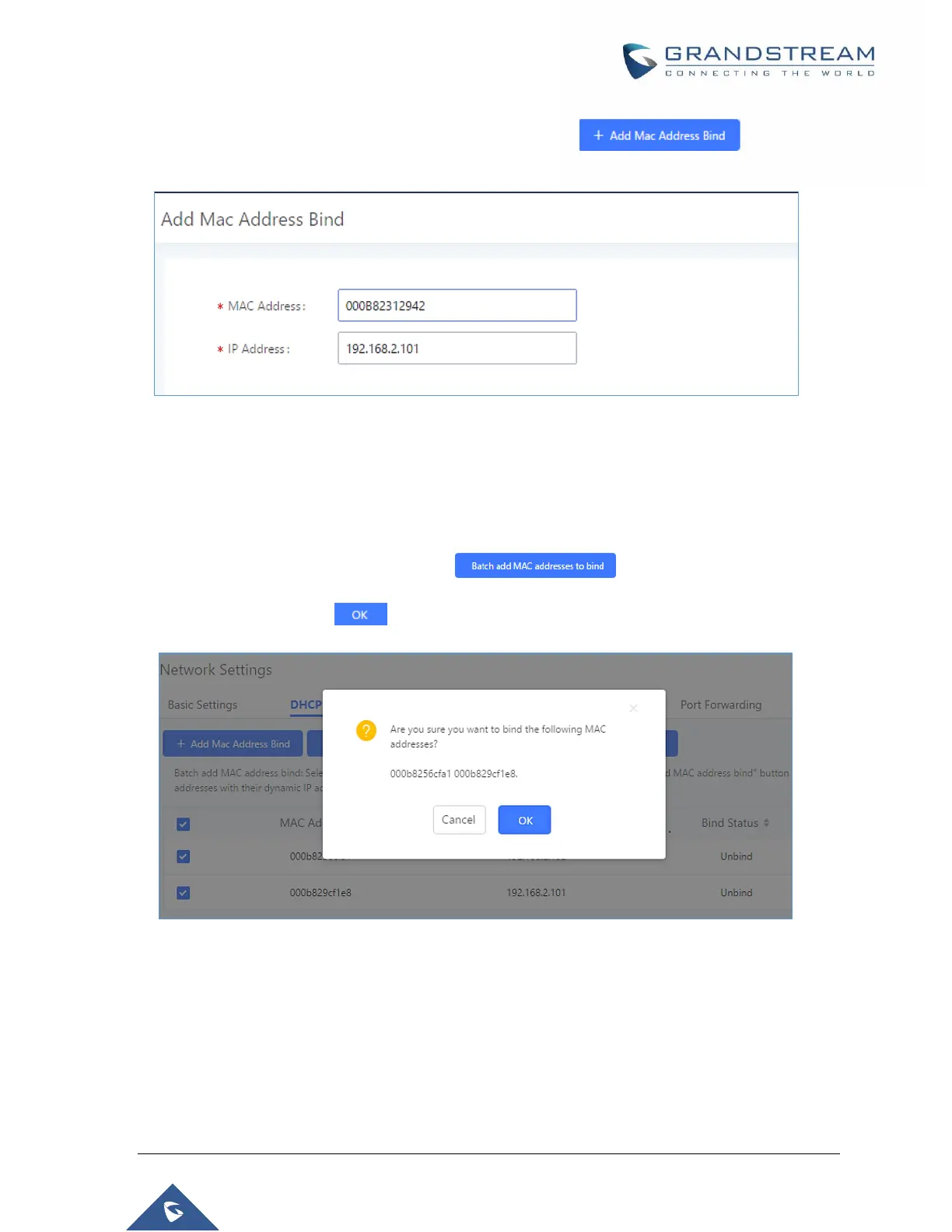

Figure 13: Add MAC Address Bind
Enter the device's MAC address and the IP address to bind it to. This IP address must be in the UCM's
DHCP range.
To bind multiple existing MAC addresses that are in the list to their respective IP addresses, check the
boxes next to each MAC address and click on the button. A confirmation message
will appear on the screen. Click to bind the addresses.
Figure 14: Batch Add MAC Address Bind
The Bind Status for the selected MAC addresses should now be changed from "Unbound" to "Bound".
Reviewer note: the 1.0.20.x text will be changed from "Unbind" to "Unbound" and "Binding" to "Bound".
