7.10 Touch Probe
The following touch probes can be connected for workpiece measurement:
TS 220: Touch-trigger probe with cable connection for workpiece setup and
measuring during machining
TS 440, TS 444, TS 640 and TS 740: Touch trigger probe with infrared
transmission for workpiece setup and measurement during machining
Specify in the tool editor which touch probe is connected.
Make sure that the spindle is locked during the measuring process.

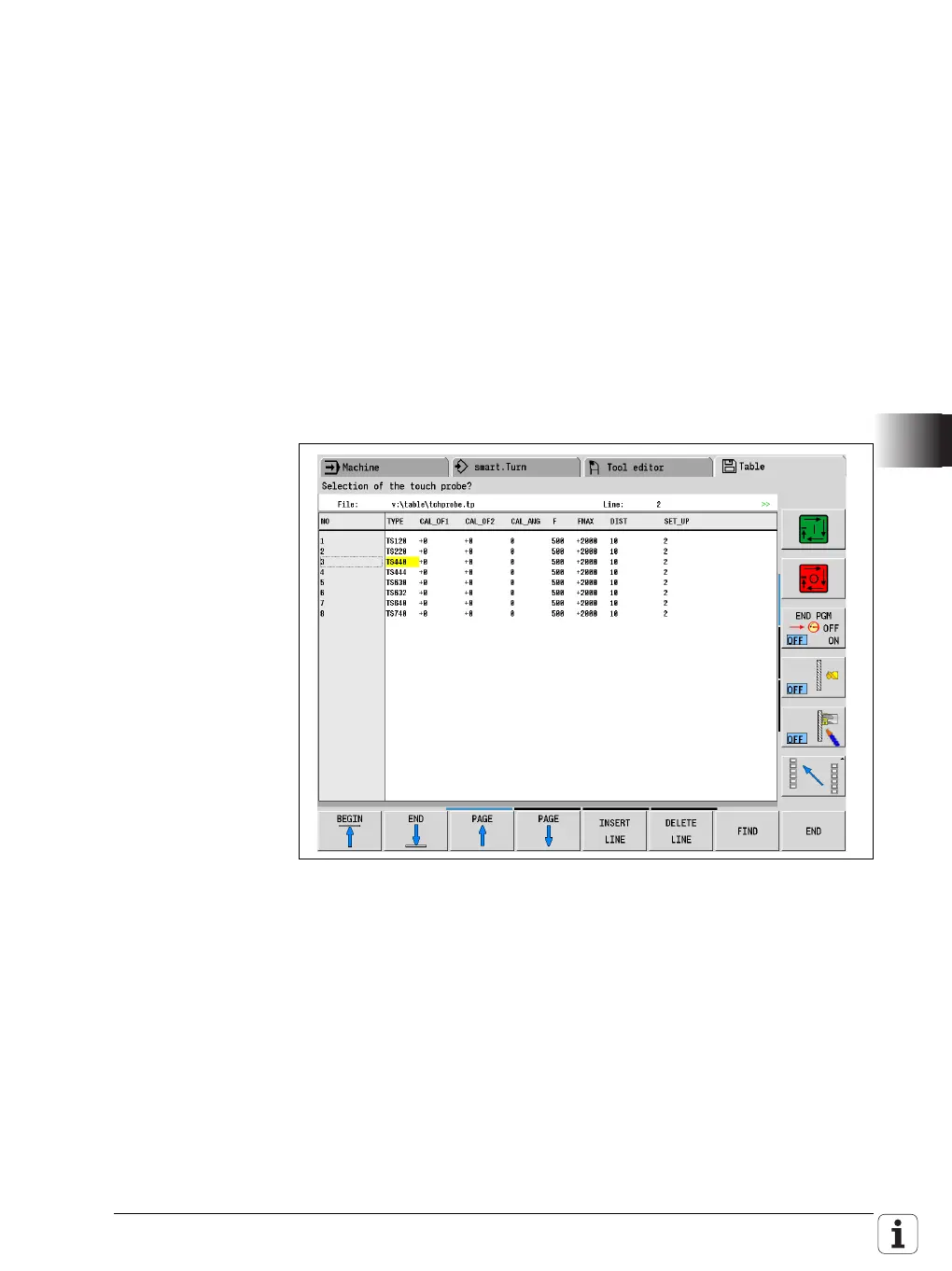

Touch-probe table In the touch-probe table, you configure the touch probe data. You can reach
the touch-probe table through the file manager under
TNC:\table\tchprobe.tp.
Enter the touch-probe data in the touch-probe table. All HEIDENHAIN touch
probes are already preconfigured.
