86 HEIDENHAIN Technical Manual MANUALplus 620
Further control loops can be enabled in addition to the control loops of the
respective SIK version. The maximum number is:
UEC 111: 4 control loops
UEC 112: 5 control loops
CC 6106: 6 control loops
CC 6108: 8 control loops
CC 6110: 10 control loops
2.5.2 SIK (System Identification Key)
Each control is clearly identified by the SIK (System Identification Key).
2.5.3 CC 61xx controller units
Control loop for C1/C2 axis: If the drive of the main/opposing spindle is
used for the C1/C2 axis, one control loop is sufficient for the main/opposing
spindle and the C1/C2 axis. If there is a separate drive for the C1/C2 axis,
then the main/opposing spindle and C1/C2 axis each require their own
control loop.
If you replace the MANUALplus 620, you must also replace the SIK in order
to ensure that the enabled options will also be enabled on the new
hardware.

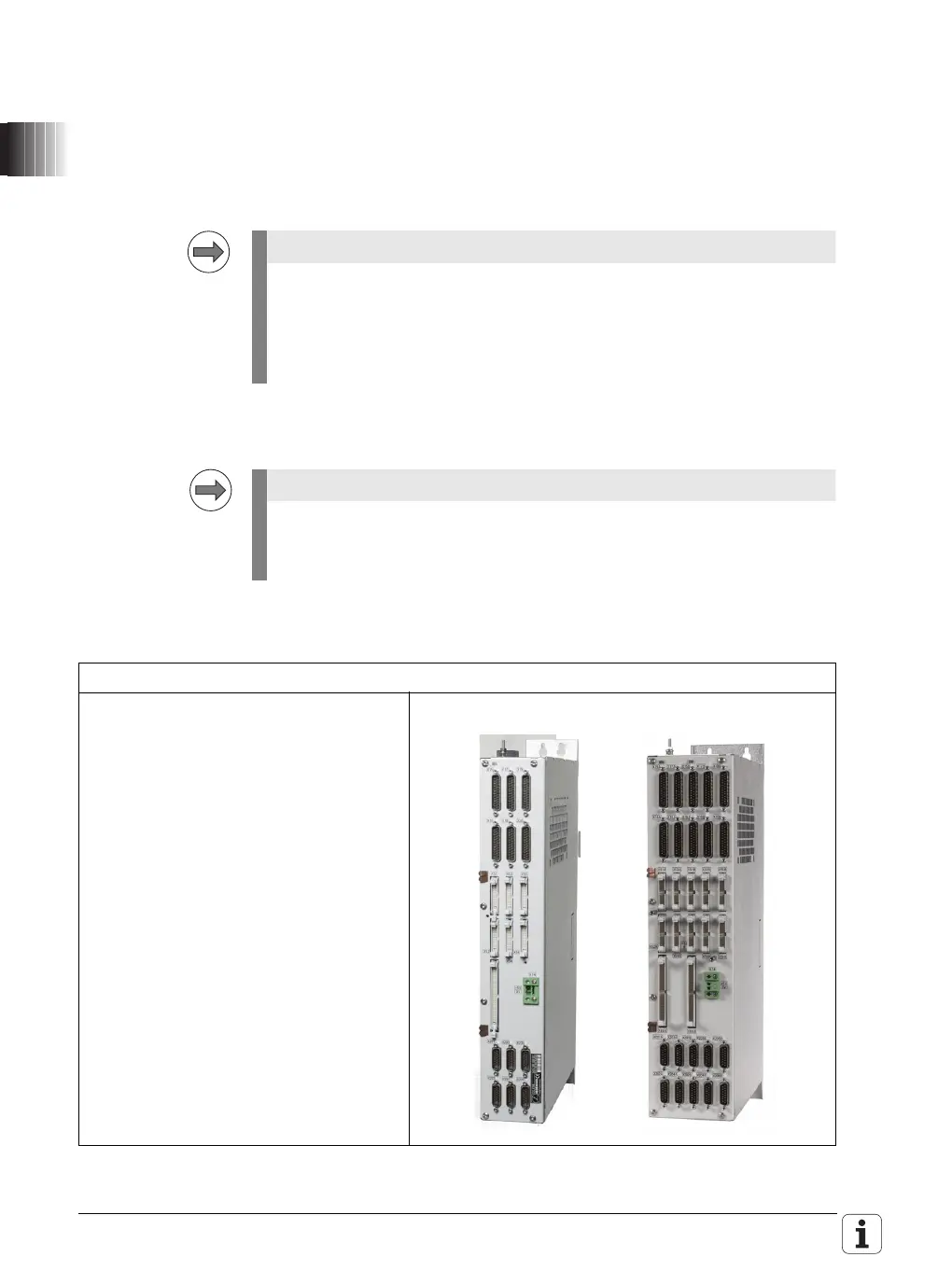

CC 61xx
Controller unit with HSCI interface for up
to 6, 8 or 10 control loops
It is equipped with:
6, 8 or 10 PWM outputs
6, 8 or 10 speed encoder inputs
6, 8 or 10 position encoder inputs
2 SPI expansion slots
Power supply through UV(R) power
supply unit
CC 6106 ID 662 636-xx
CC 6108 ID 662 637-xx
CC 6110 ID 662 638-xx
