January 2012 2.5 Component Overview of MANUALplus 620 89
2.5.5 PLC input/output systems with HSCI interface
The PLC inputs and outputs of the MANUALplus 620 are available via the
external modular PL 6xxx PLC input/output systems.
The PL 6xxx consists of the PLB 6xxx basic module and one or more I/O
modules. The basic modules are connected to the MC main computer via the
HSCI interface.
The PLC inputs/outputs are configured with the PC software IOconfig.
System PL
The MC 6110T main computer of the MANUALplus 620 does not have
integrated PLC inputs/outputs, and has no connections for TS or TT touch
probes. In order to operate the control, at least the PL 62xx system PL
(when using a CC 610x) or the UEC 11x controller unit with integrated
inverter and PLC is necessary. (The system PL is integrated in the UEC.)

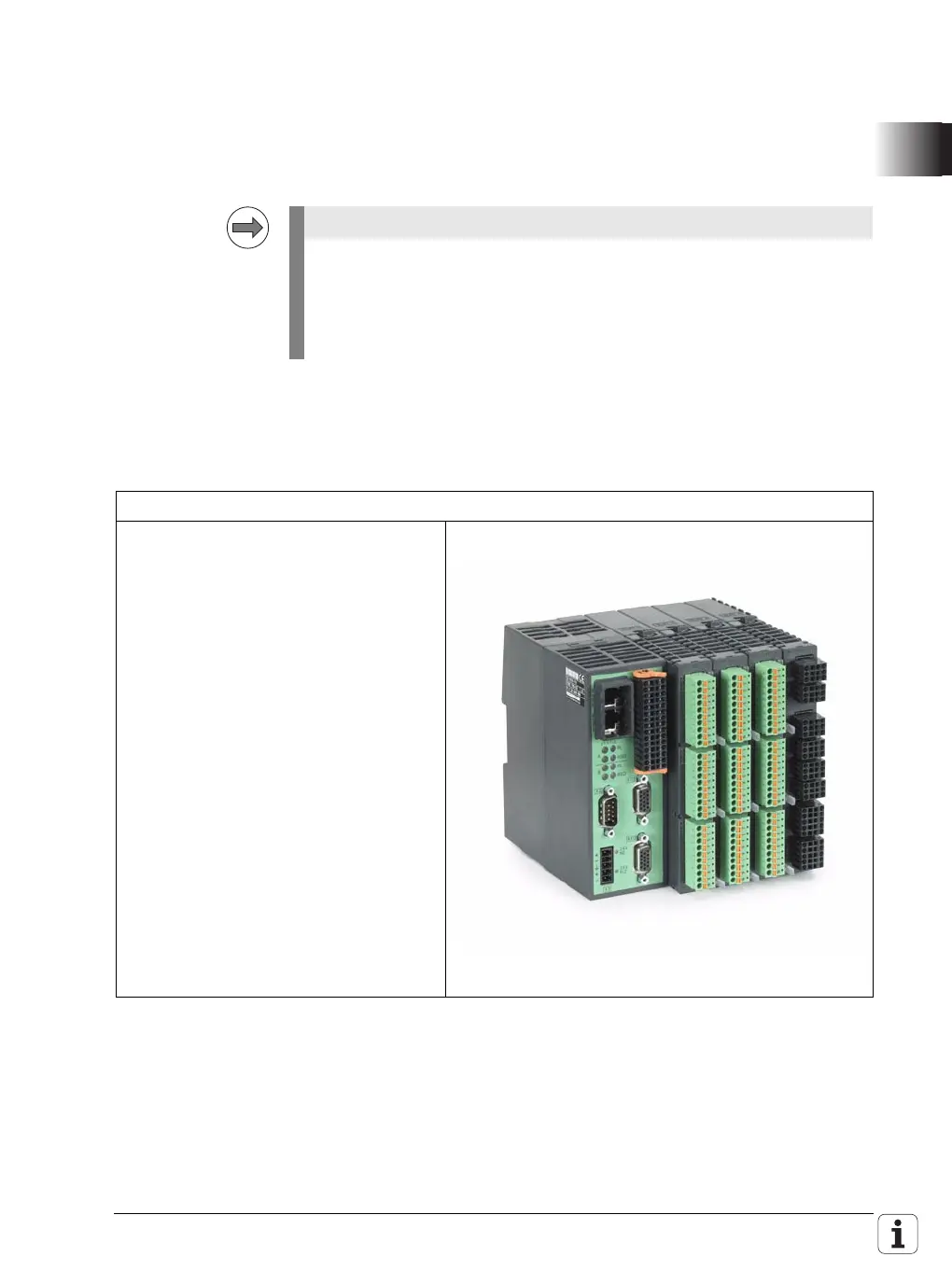

PL 62xx
System PL, consisting of PLB 620x basic
module and I/O modules.
One module must be in the HSCI
system if no UEC 11x is used
Available with 4, 6 or 8 slots
HSCI interface
Connections for TS and TT touch probes
Safety-relevant PLC inputs/outputs
For an overview of the available I/O
modules, see "I/O modules" on page 91.
They are mounted on standard NS 35 rails
(DIN 46 227 or EN 50 022)
PLB 6204 ID 591 832-xx
PLB 6206 ID 630 054-xx
PLB 6208 ID 630 055-xx
