HEIDENHAIN MANUALPLUS 620 Technical Manual

January 2012 3.23 Analog Nominal Value Output 257

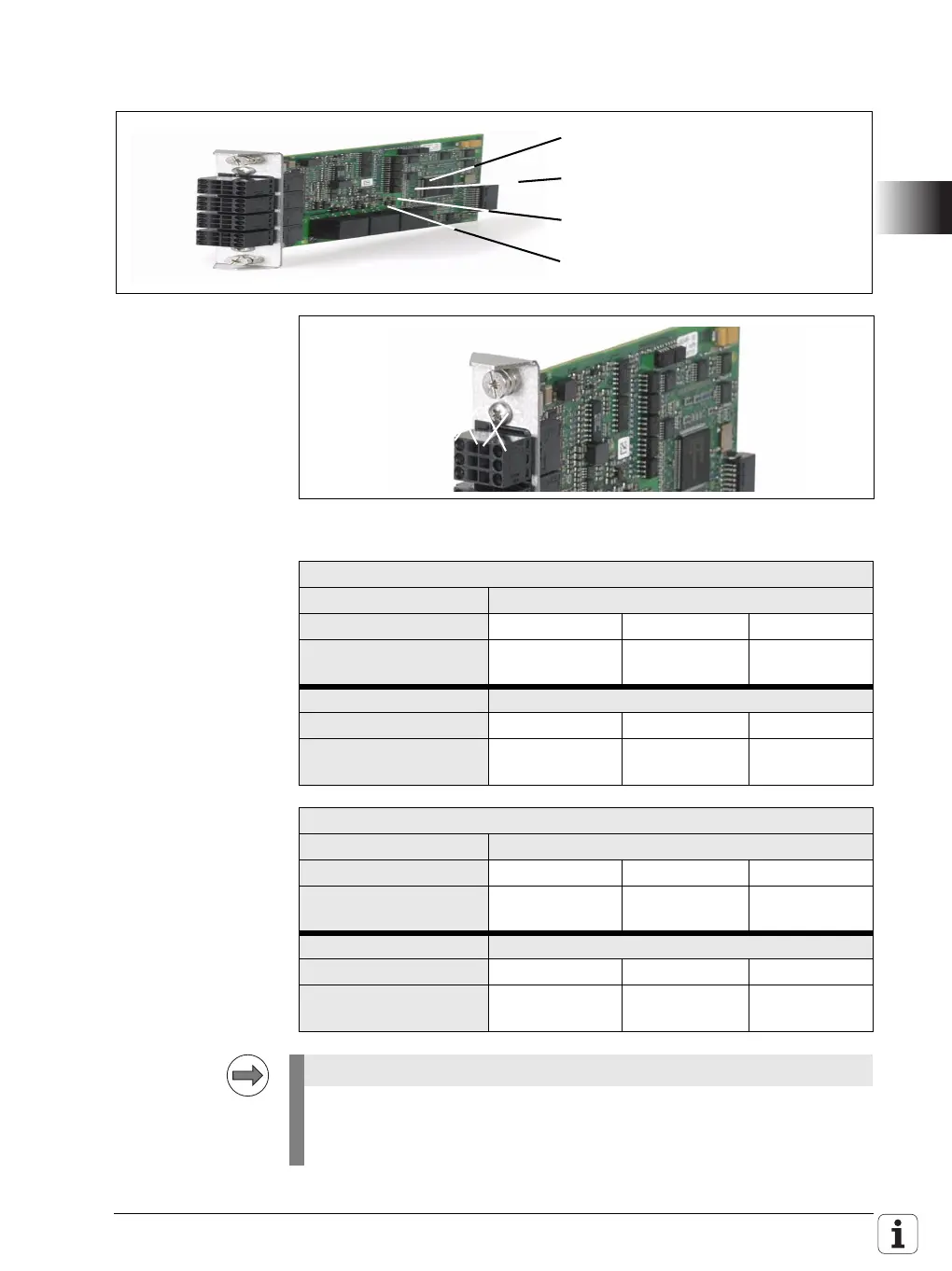

3.23.1 CMA-H 04-04-00 – Pin layout
CMA-H
Analog outputs
X67: Analog outputs 3 and 4
X66: Analog outputs 1 and 2
X47: Reserved, do not assign
X46: Reserved, do not assign
X67
X66
X47
X46
1
2
3
1
2
3
a
b
1
2
3
1
2
3
X66: Analog outputs 1 and 2
Function Analog output 1
Connecting terminal 1a 2a 3a
Assignm
ent
±10 V 0 V Shield
Function Analog output 2
Connecting terminal 1b 2b 3b
Assignm
ent
±10 V 0 V Shield
X67: Analog outputs 3 and 4
Function Analog output 3
Connecting terminal 1a 2a 3a
Assignm
ent
±10 V 0 V Shield
Function Analog output 4
Connecting terminal 1b 2b 3b
Assignm
ent
±10 V 0 V Shield
Note
The terminals X46 and X47 on the CMA-H 04-04-00 are reserved for future
functions and are not yet supported by the NC software. Please do not
assign them.
