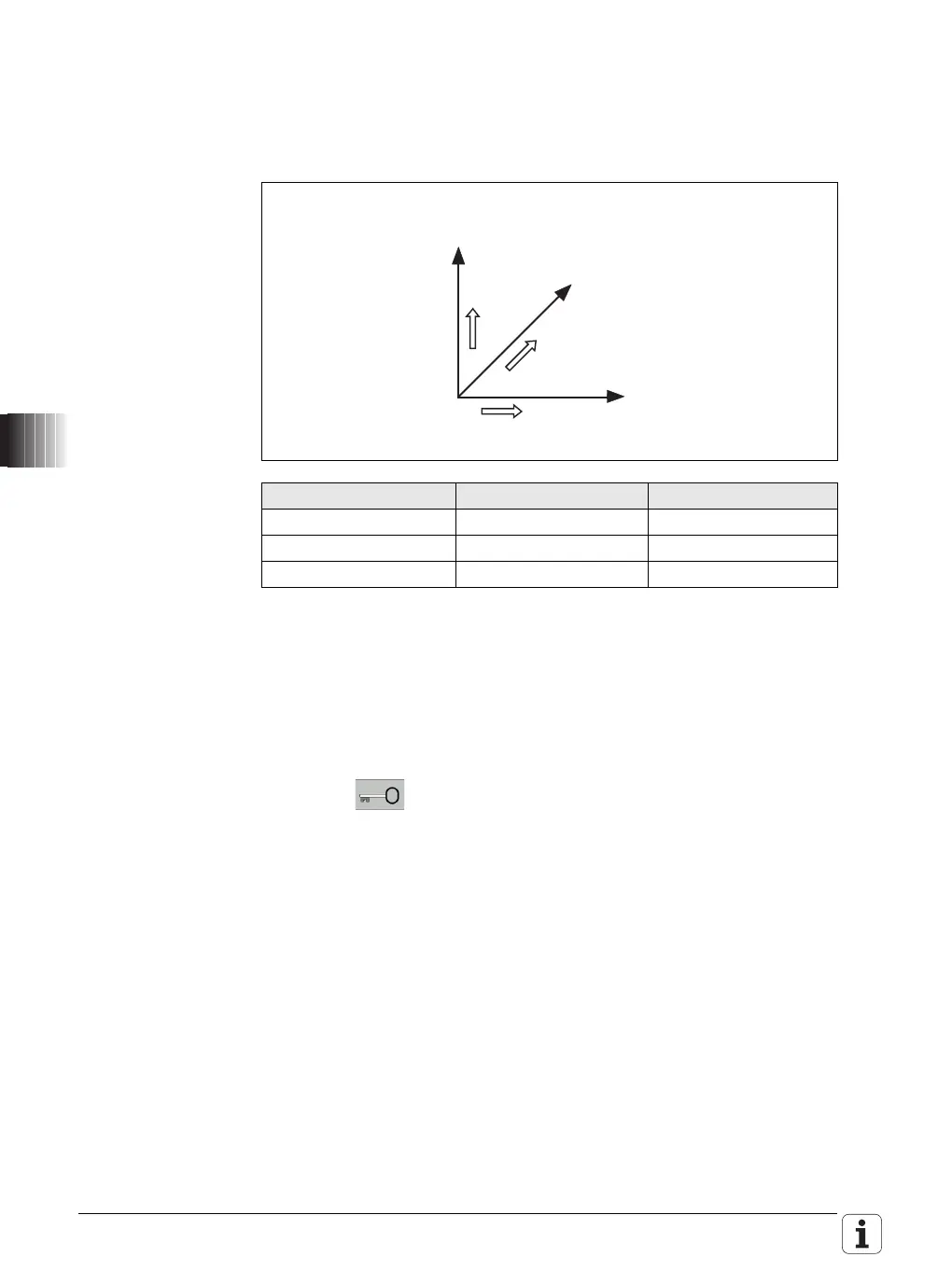

7.12.7 Configuring parallel axes
In addition to the principal axes X, Y and Z you can configure the parallel
secondary axes U, V and W. The principal axes are assigned to the secondary
axes as follows:
The MANUALplus 620 includes prepared configuration data for the parallel
axes U, V and W. To activate the parallel axes, the configuration data must be
installed and the configuration parameters must be modified as described
below.
Installing the
configuration data
Proceed as follows to install the configuration data:
 Switch to the Organization mode of operation.
 Press the soft key.
 Enter the code number 95148.
 Press the COPY SAMPLE FILES soft key to copy the prepared configuration
data to the OEM:\Update\v\bck\para directory.
 Copy the configuration data to the TNC:\bck\para directory.
 Switch to the Transfer mode of operation.
 Press the Parameter soft key and select the corresponding AxisU1/V1/
W1_AddOn.zip. The complete AxisUVW_AddOnFull.zip should only be
used for newly installed systems because it also overwrites existing
settings.
 Press the Parameter Restore soft key to install the selected AddOn.zip on
the control.
In addition, the machine parameters must be modified as described below:
Principal axis Parallel axis Rotary axis
XUA
YVB
ZWC
+Y
+X
+U
+V
+W
+Z
