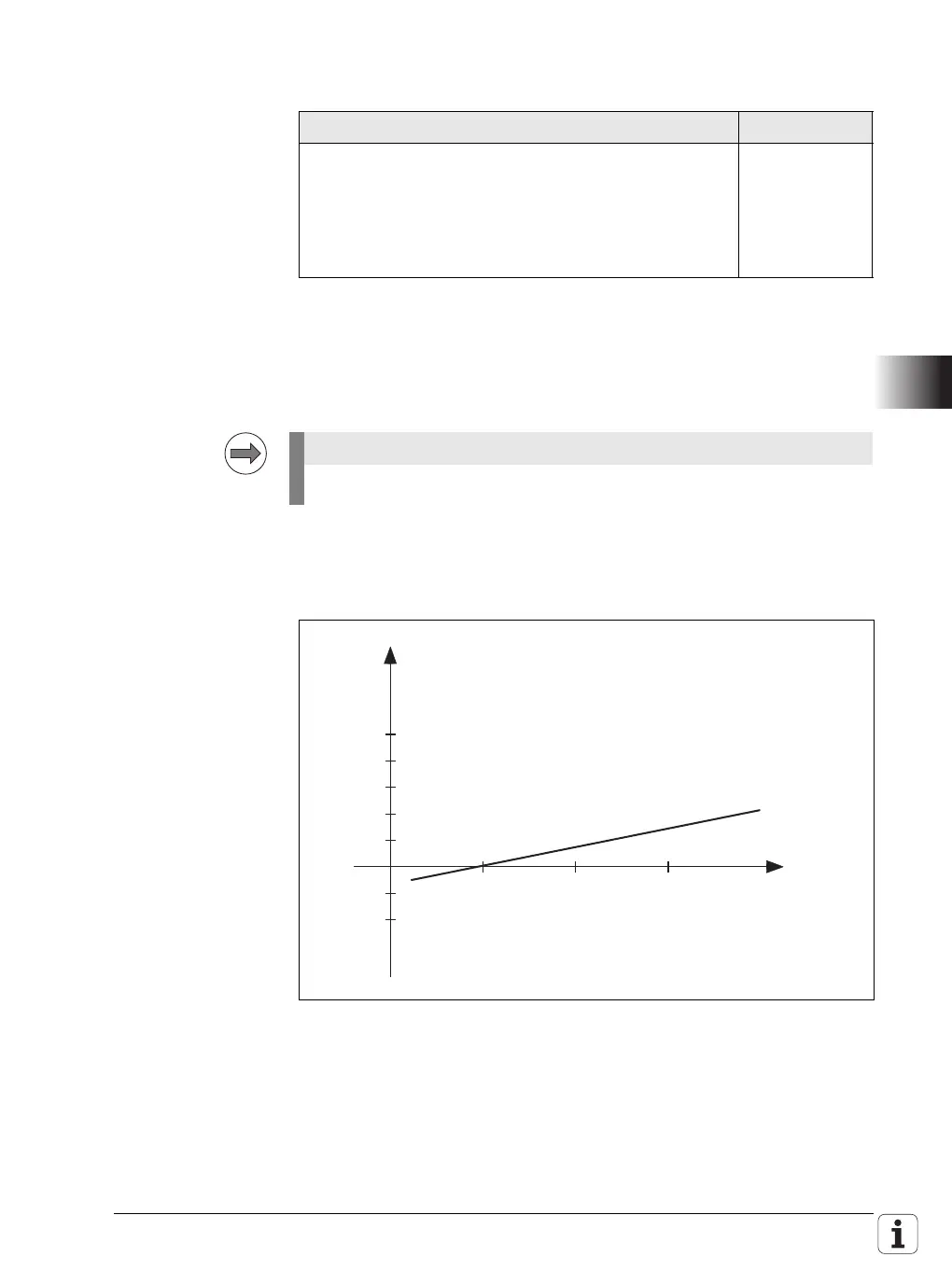

January 2012 6.10 Axis Error Compensation 711
6.10.2 Linear axis error compensation
The parameter object CfgAxisComp is not required for:
Virtual axes (MP_axisMode=Virtual)
Axes that are for display only (MP_axisMode=Display)
For every linear axis you can compensate a linear axis error.
Positive linear axis error: The table moves too far.
Negative linear axis error: The table moves too short a distance.
Settings in the configuration editor MP number
Axes
ParameterSets
[Key name of the parameter set]
CfgAxisComp
linearCompValue
compType
401803
401804
Note
Linear axis error compensation is not available for rotary axes!
Ref. mark 500 1000 Encoder
[mm]
0.02
0.01
-0.01
-0.02
0
Error
[mm]
