Intel Arria 10 User Manual

The following 10GBASE-R variants area available from presets:
• 10GBASE-R
• 10GBASE-R Low Latency
• 10GBASE-R Register Mode
• 10GBASE-R w/ KR-FEC
Intel recommends that you use the presets for selecting the suitable 10GBASE-R
variants directly if you are configuring through the Native PHY IP core.

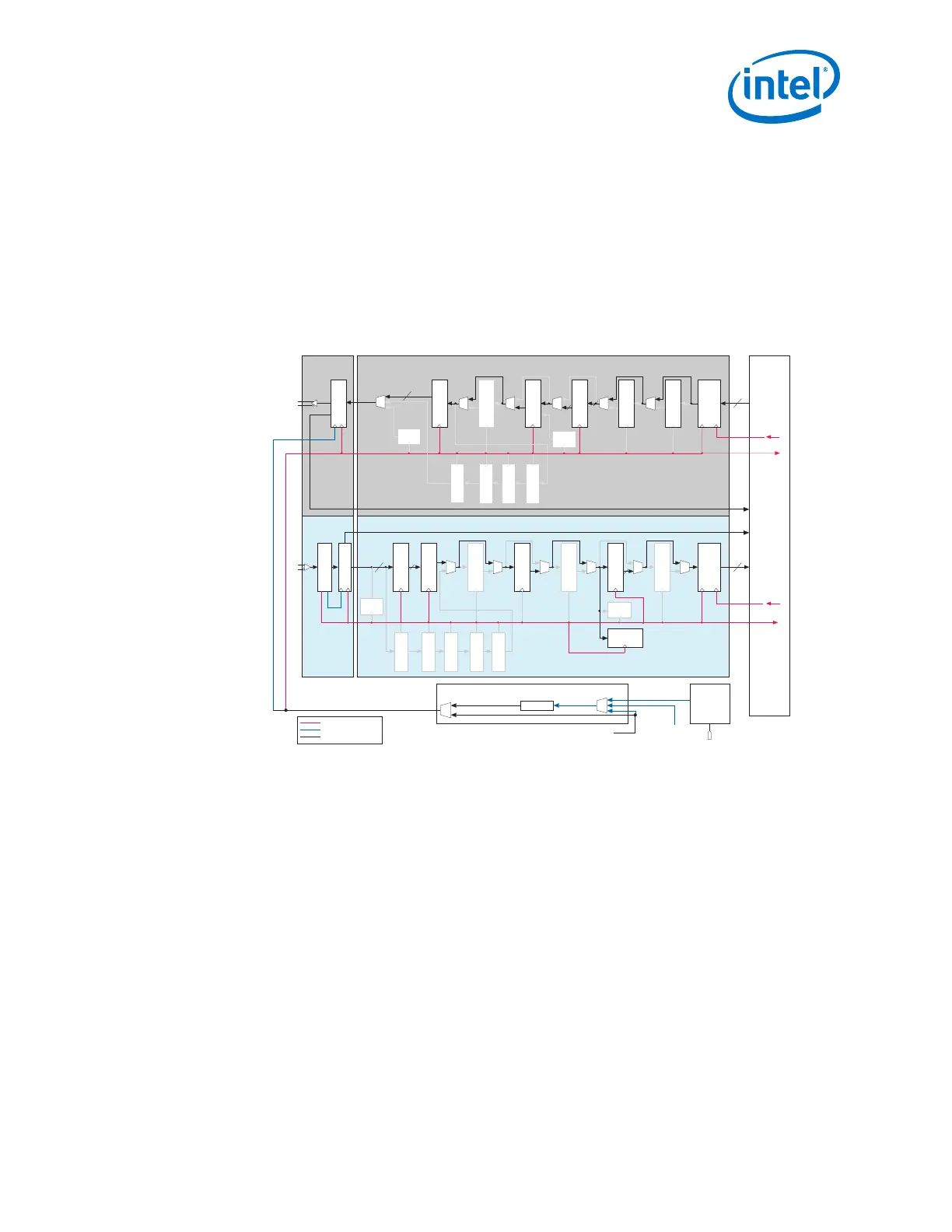

Figure 55. Transceiver Channel Datapath and Clocking for 10GBASE-R
Transmitter Enhanced PCSTransmitter PMA
Receiver PMA
Receiver Enhanced PCS
TX
Gearbox
tx_serial_data
Serializer
Interlaken
Disparity Generator
Scrambler
(self sync) mode
Parallel Clock
PRBS
Generator
PRP
Generator
rx_serial_data
Deserializer
CDR
Descrambler
Interlaken
Disparity Checker
Block
Synchronizer
Interlaken
Frame Sync
RX
Gearbox
PRBS
Verifier
Transcode
Decoder
KR FEC RX
Gearbox
KR FEC
Decoder
KR FEC
Block Sync
KR FEC
Descrambler
Parallel Clock
Parallel Clock
Serial Clock
Parallel and Serial Clocks
Clock Divider
Parallel and Serial Clocks
Clock Generation Block (CGB)
Serial Clock
Input Reference Clock
ATX PLL
fPLL
CMU PLL
64B/66B Decoder
and RX SM
10GBASE-R
BER Checker
PRP
rx_pma_div_clkout
tx_pma_div_clkout
Verifier
rx_coreclkin
rx_clkout
Enhanced PCS
TX FIFO
(3)
Enhanced PCS
RX FIFO
(4)
Interlaken
Frame Generator
Interlaken
CRC32 Generator
Interlaken
CRC32 Checker
64B/66B Encoder
and TX SM
TX
Data &
Control
RX
Data &
Control
FPGA
Fabric
tx_coreclkin
tx_clkout
KR FEC
TX Gearbox
KR FEC
Scrambler
KR FEC
Encoder
Transcode
Encoder
10.3125 Gbps
5156.25 MHz (data rate/2) (1)
Notes:
1. Value based on the clock division factor chosen.
2. Value calculated as data rate / PCS-PMA interface width.
3. This block is in Phase Compensation mode for the 10GBASE-R configuration and register mode for the 10GBASE-R with 1588 configuration.
4. This block is in 10GBASE-R mode for the 10GBASE-R configuration and register mode for the 10GBASE-R with 1588 configuration.
40
66
@ 257.8125 MHz (2)
64 + 8
@ 156.25 MHz
from XGMII
64 + 8
@ 156.25 MHz
from XGMII
@ 257.8125 MHz (2)
40
66
64
64
10GBASE-R with IEEE 1588v2
When choosing the 10GBASE-R PHY with IEEE 1588v2 mode preset, the hard TX and
RX FIFO are set to register mode. The output clock frequency of tx_clkout and
rx_clkout to the FPGA fabric is based on the PCS-PMA interface width. For example,
if the PCS-PMA interface is 40-bit, tx_clkout and rx_clkout run at 10.3125
Gbps/40-bit = 257.8125 MHz.
The 10GBASE-R PHY with IEEE 1588v2 creates the soft TX phase compensation FIFO
and the RX clock compensation FIFO in the FPGA core so that the effective XGMII data
is running at 156.25 MHz interfacing with the MAC layer.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
125

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
