Intel Arria 10 User Manual

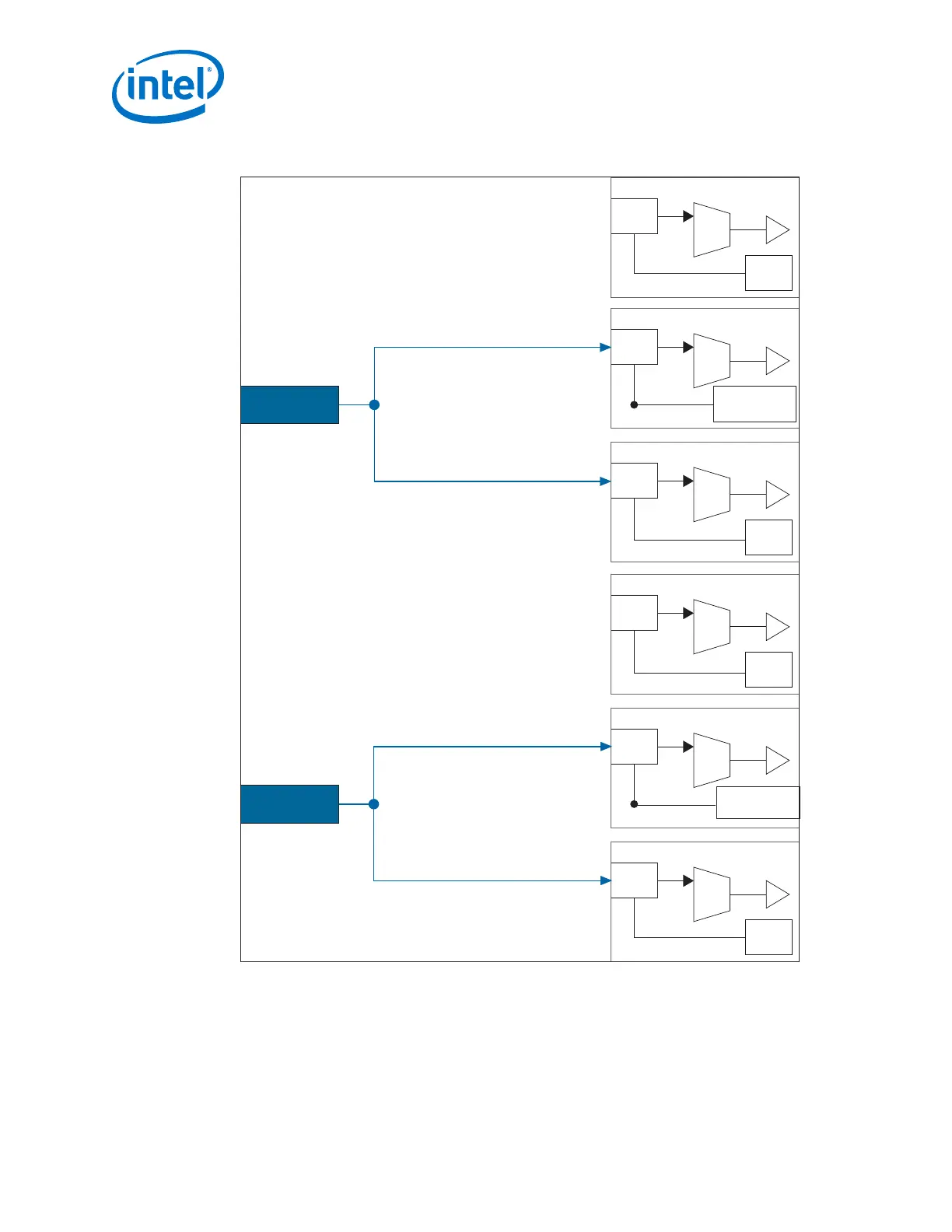

Figure 161. GT Channel Configuration
CMU or CDR
CGB
Ch 4
CDR
CGB
Ch 3
CDR
CGB
Ch 2
CGB
Ch 1
CDR
CGB
Ch 0
CDR
CGB
Ch 5
ATX PLL1
ATX PLL0
CMU or CDR
When both the channels 0 and 1 are configured as GT channels, they are driven by
the same ATX PLL and have to be configured to run at the same data rates. This is
also true for channels 3 and 4 when they are configured as GT channels.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
320

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
