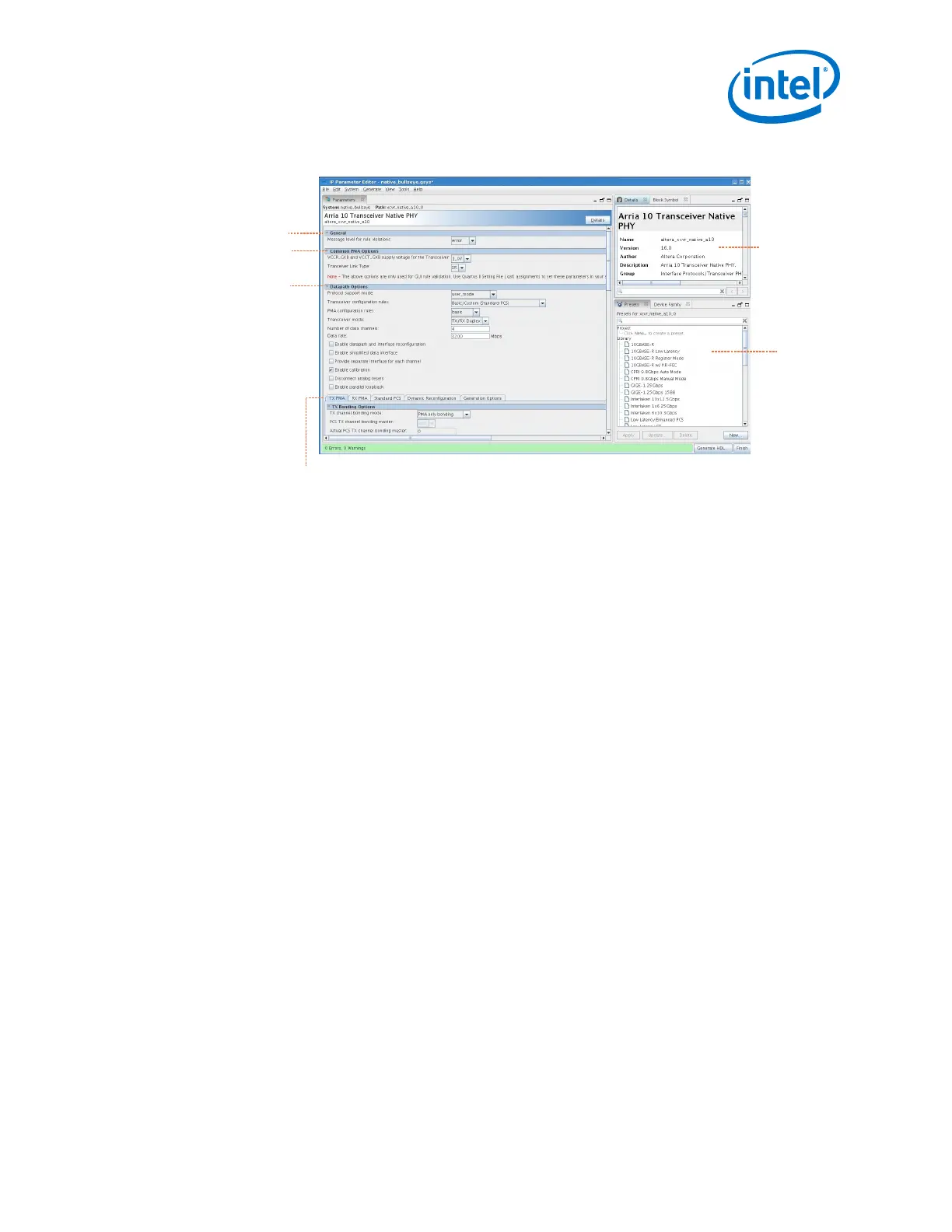

Figure 23. Native PHY IP Core Parameter Editor
Documentation
Presets
General
Options
Common
PMA Options
Datapath
Options
PMA/PCS, Dynamic Reconfiguration, Optional Analog PMA Settings, and General Options
Note: Although the Quartus Prime software provides legality checks, the supported FPGA
fabric to PCS interface widths and the supported data rates are pending
characterization.
Related Information
• Configure the PHY IP Core on page 35
• Interlaken on page 94
• Gigabit Ethernet (GbE) and GbE with IEEE 1588v2 on page 112
• 10GBASE-R, 10GBASE-R with IEEE 1588v2, and 10GBASE-R with FEC Variants on
page 124
• 10GBASE-KR PHY IP Core on page 135
• 1-Gigabit/10-Gigabit Ethernet (GbE) PHY IP Core on page 164
• PCI Express (PIPE) on page 229
• CPRI on page 279
• Using the "Basic (Enhanced PCS)" and "Basic with KR FEC" Configurations of
Enhanced PCS on page 289
• Using the Basic/Custom, Basic/Custom with Rate Match Configurations of Standard
PCS on page 300
• Design Considerations for Implementing Arria 10 GT Channels on page 319
• PMA Parameters on page 51
• Presets on page 48
• General and Datapath Parameters on page 48
• Enhanced PCS Ports on page 76
• Standard PCS Ports on page 86
• PMA Ports on page 73
• How to Place Channels for Pipe Configuration on page 268
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
47

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
