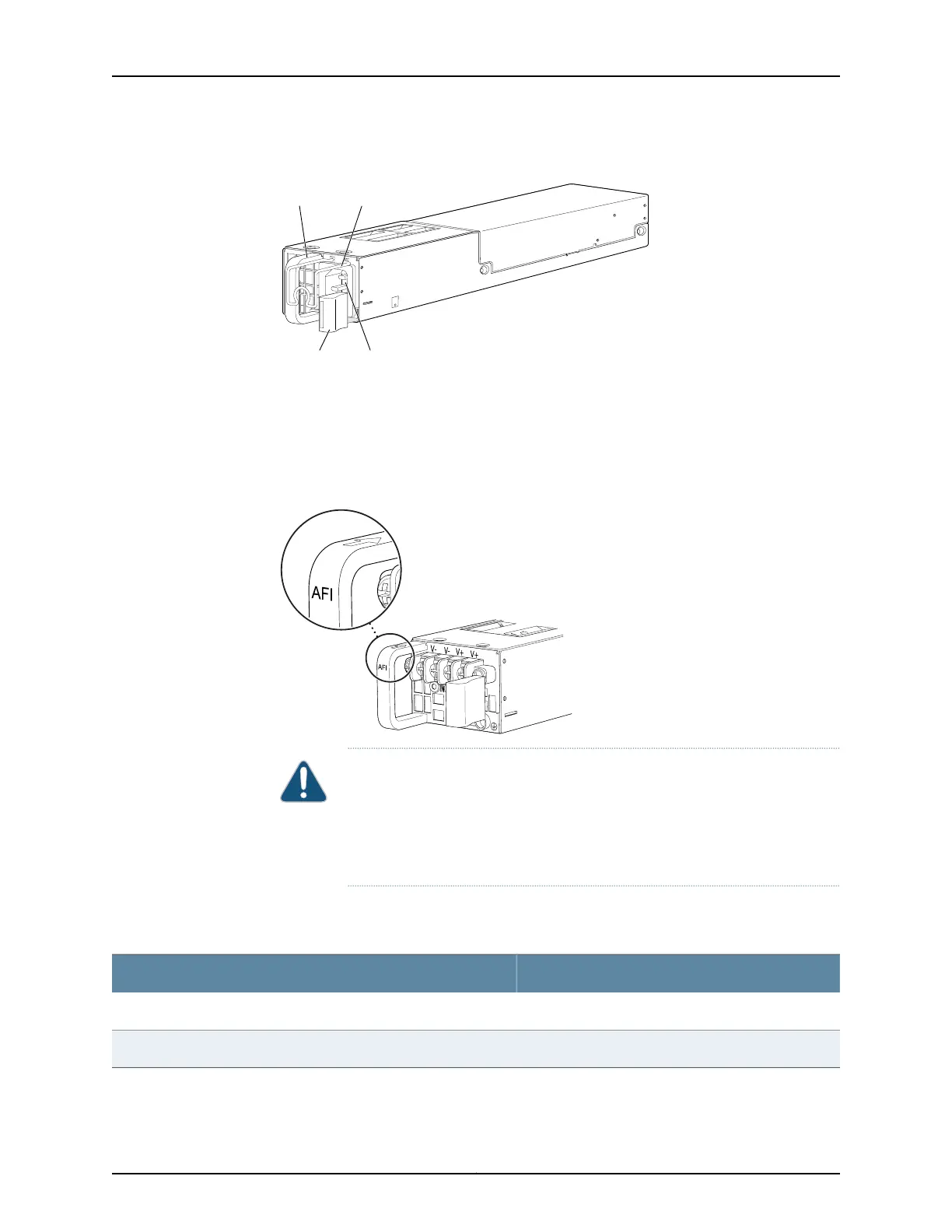

Figure 43: AC Power Supply in QFX3500 Devices
g050002
Handle
Ejector
lever
AC appliance
inlet
Cord retainer
The power supply provides FRU-side-to-port-side or port-side-to-FRU-side airflow
depending on the model you purchase. The power supplies have labels and arrows on
the handles that depict the direction of airflow (see Figure 44 on page 74). The label AFI
denotes FRU-side-to-port-side airflow, AFO denotes port-side-to FRU-side airflow.
Figure 44: Label Identifying Airflow Direction on Power Supply Handle
g050225
CAUTION: Verify that the direction of the arrow on the power supply handle
matches the direction of airflow in the chassis. Ensure that each power supply
you install in the chassis has the same airflow direction. If you install power
supplies with two different airflow directions, Junos OS will raise an alarm
and the status (OK/!) LED will blink amber.
Table 14 on page 74 shows the different power supplies and their direction of airflow.
Table 14: Airfow Direction in QFX3500 Power Supplies
Direction of AirflowModel
Port-side-to-FRU-sideJPSU-650W-AC-AFO
FRU-side-to-port-sideQFXC01-PWRACI-650A
