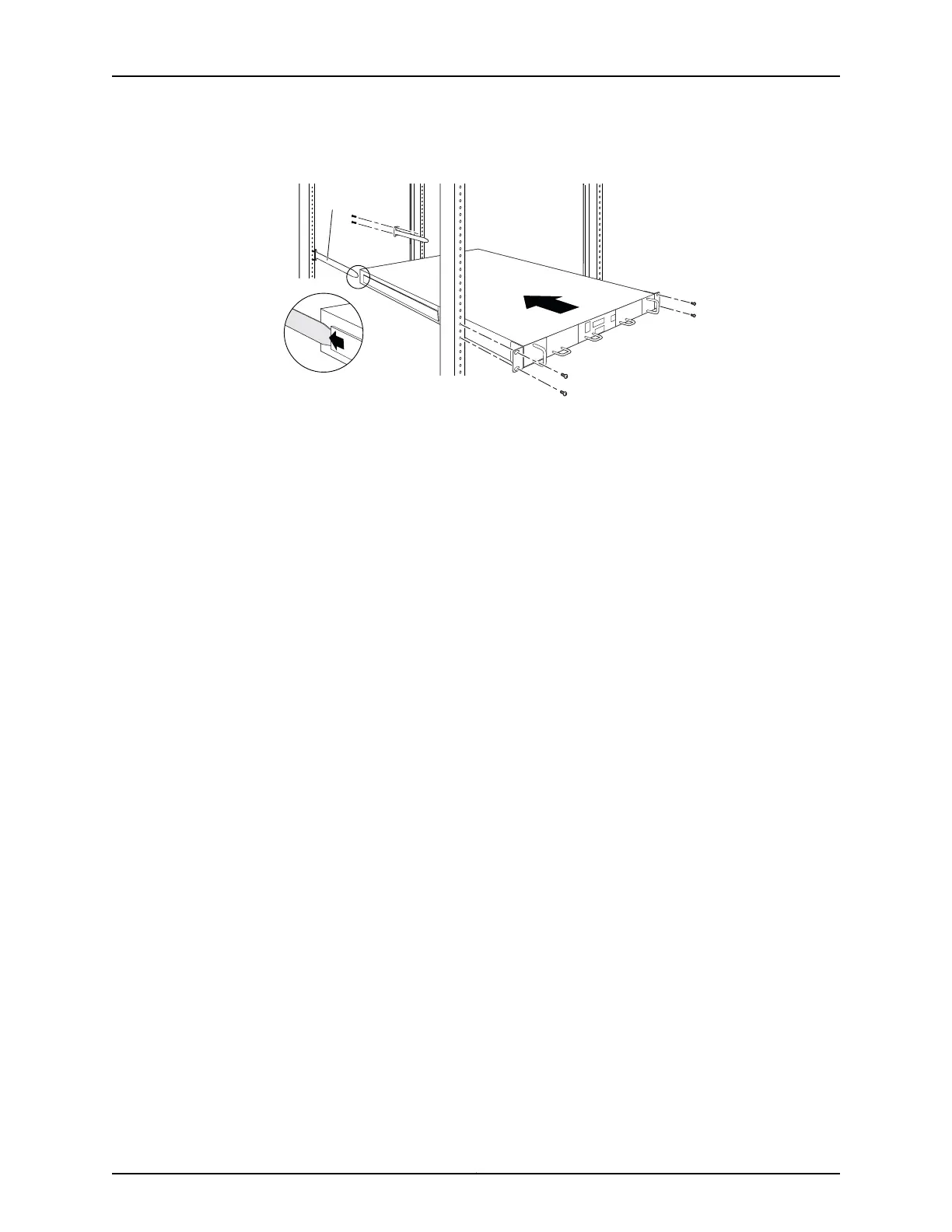

Figure 75: Mounting the QFX3500 Device on Four Posts in a Rack
g050022
Installation
blade
4. Align the holes in the front brackets on the chassis with the holes in the rack. Ensure
that the chassis is level.
5. With four mounting screws—and cage nuts and washers if your rack requires
them—secure the front of the device to the rack. Insert the first screw on the opposite
corner from the rear installation blade you installed. Tighten the screws.
6. Ensure that the device chassis is level by verifying that all the screws on the front of
the rack are aligned with the screws at the back of the rack.
7. With two mounting screws—and cage nuts and washers if your rack requires
them—slide the second rear installation blade into the blade receptacle on the chassis,
and secure it to the rear of the rack by tightening the screws. You might need to loosen
and adjust the first installation blade to install the second blade.
Related
Documentation
Rack-Mounting and Cabinet-Mounting Warnings on page 179•
• Connecting AC Power to a QFX3500 Device on page 265
• Configuring a QFX3500 Device
263Copyright © 2012, Juniper Networks, Inc.
Chapter 21: Installing a QFX3500 Node Device
