NOTE: If the AC OK LED and the DC OK LED are unlit, either the AC power
cord is not installed properly or the power supply fuse has failed. If the AC
OK LED is lit and the DC OK LED is unlit, the AC power supply is installed
properly, but the power supply has an internal failure.
Related
Documentation
AC Power Supply for a QFX3500 Device on page 73•
• Connecting AC Power to a QFX3500 Device on page 265
DC Power Supply LEDs on a QFX3500 Device
Figure 143 on page 403 shows the location of the LEDs on the DC power supply.

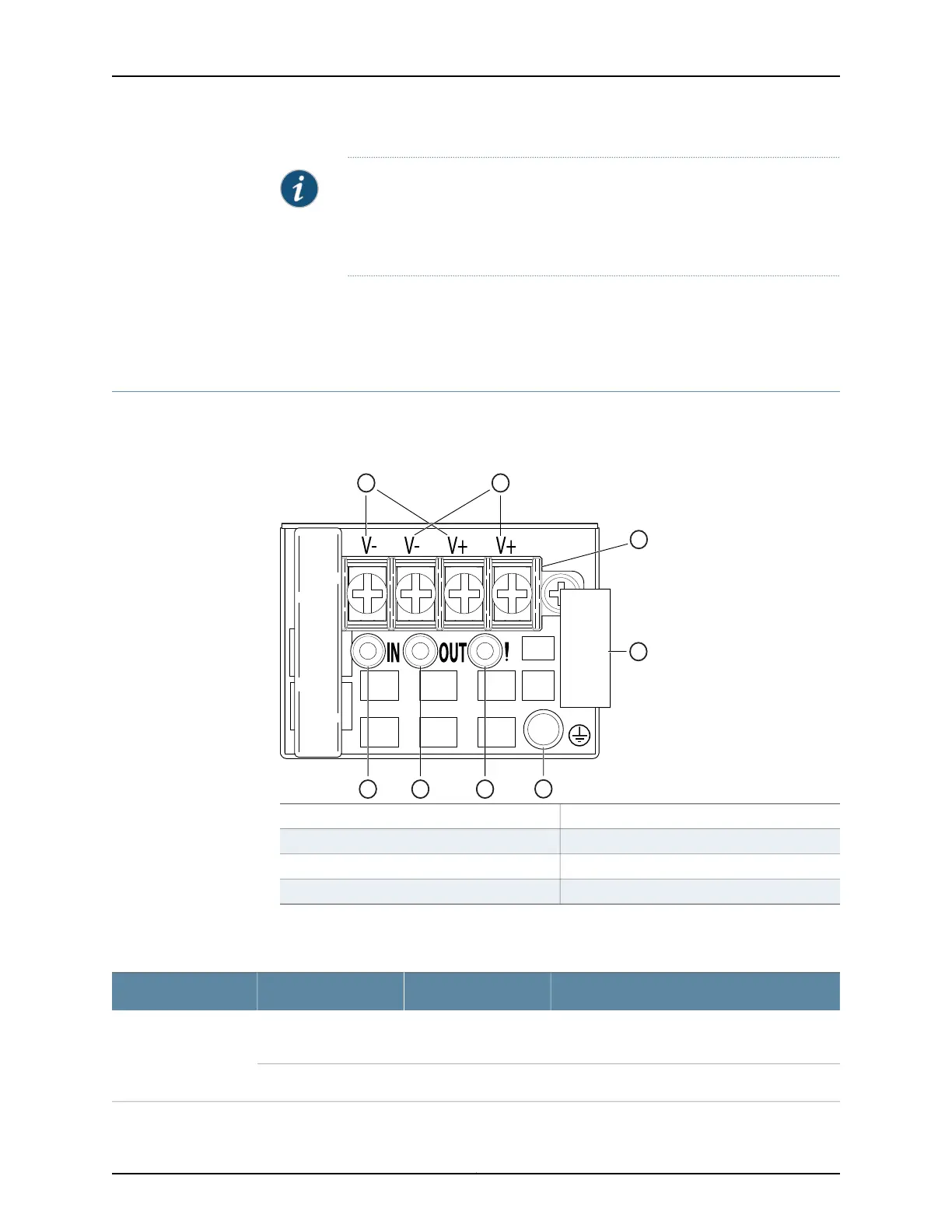

Figure 143: DC Power Supply Faceplate on a QFX3500 Device
g050211
1
678
5
2
3
4
5—1— ESD grounding pointFeed A input terminals
6—2— Fault LEDFeed B input terminals
7—3— Output LEDTerminal block
8—4— Input LEDEjector lever
Table 85 on page 403 describes the LEDs on the DC power supplies.
Table 85: DC Power Supply LEDs on a QFX3500 Device
DescriptionStateColorName
The power supply is disconnected from power,
or power is not coming into the power supply.
OffUnlitInput
Power is coming into the power supply.On steadilyGreen
403Copyright © 2012, Juniper Networks, Inc.
