Field-Replaceable Units in a QFX3008-I Interconnect Device on page 38•
• QFX3008-I Interconnect Device Overview on page 33
Front Panel Display of the QFX3008-I Interconnect Device
The front panel display of the QFX3008-I Interconnect device consists of the following
components:
•
AlarmLEDs—Indicate major or minor alarms. See “Chassis Status LEDs on a QFX3008-I
Interconnect Device” on page 387 and “Understanding Alarms” on page 437.
•
Status LEDs—Indicate system status. See “Chassis Status LEDs on a QFX3008-I
Interconnect Device” on page 387.
•
LCD panel—The LCD panel displays the device hostname and the number of active
alarms.
Figure 18 on page 43 shows the front panel display of a QFX3008-I Interconnect device.
Figure 19 on page 44 shows the location of the front panel display on the chassis.

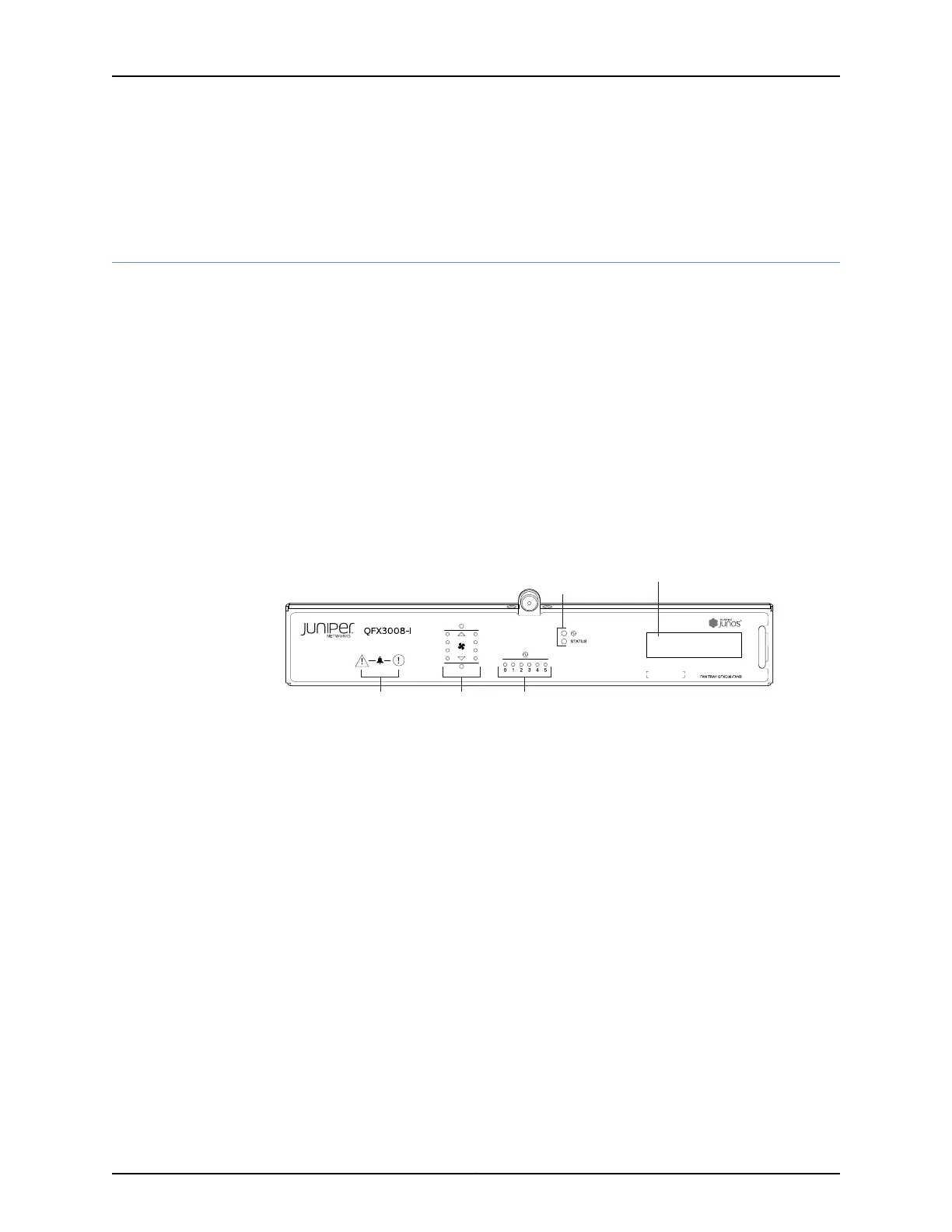

Figure 18: Chassis Status LEDs
g050105
Power supply
LEDs
System
LEDs
Fan
LEDs
Alarm
LEDs
LCD panel
43Copyright © 2012, Juniper Networks, Inc.
Chapter 3: QFX3008-I Overview
