Cooling System and Airflow for a QFX3500 Device
The cooling system in a QFX3500 device consists of two field-replaceable unit (FRU)
fan trays with two fan modules each (see Figure 37 on page 68) and two fan modules
on the management board FRU (see Figure 38 on page 68). In addition, the power supplies
have internal fans to cool themselves.

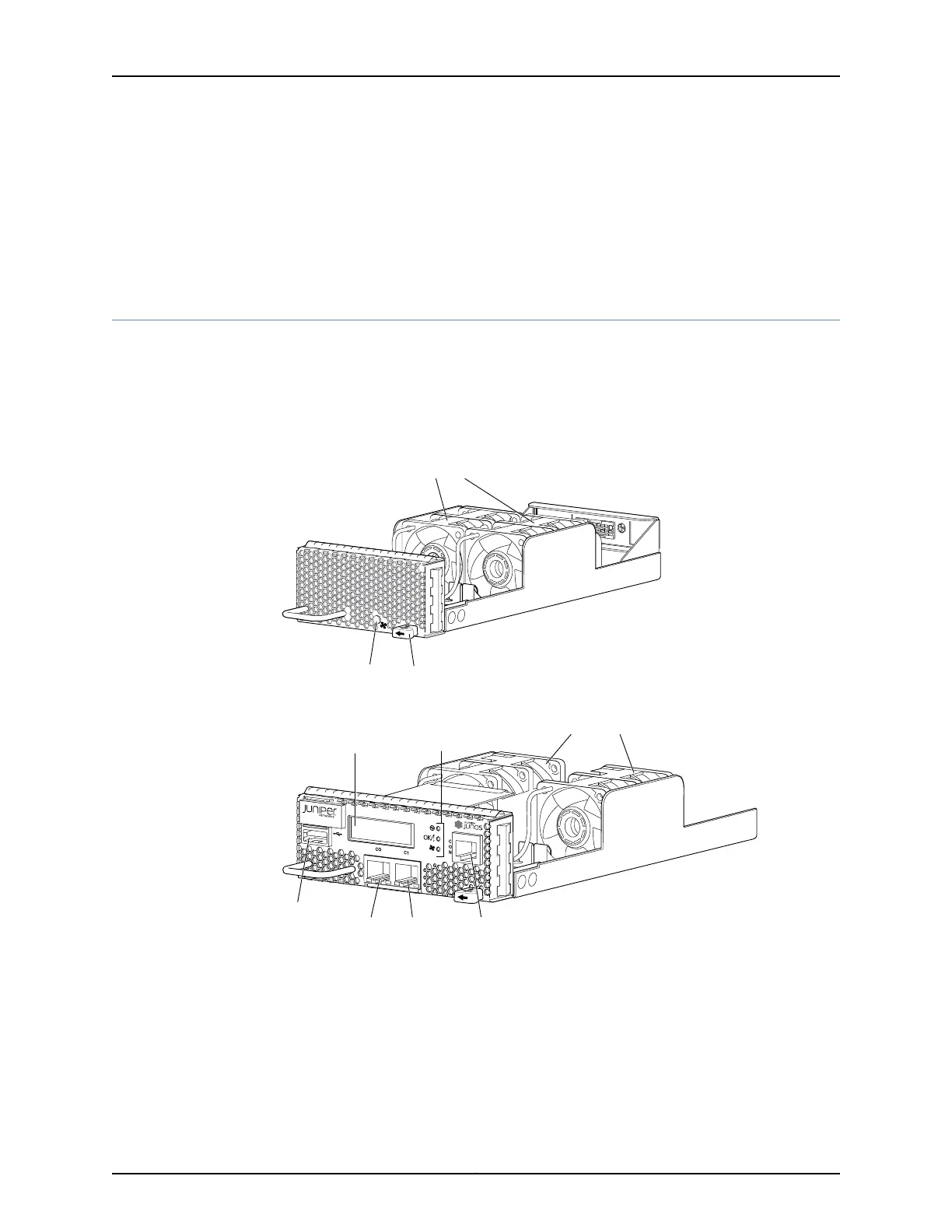

Figure 37: Fan Tray for a QFX3500 Device
g050011
Fan modules
EjectorLED
Figure 38: Management Board for a QFX3500 Device
g050021
Management
ports
USB
port
Console
port
Fan modules
Chassis
status LEDs
LCD display
QFX3500-48S4Q
The QFX3500 device provides FRU-side-to-port-side or port-side-to-FRU-side airflow
depending on the device model you purchase. Table 11 on page 69 lists the different
QFX3500 device models and their direction of airflow.
