Phillips (+) screwdriver, number 2
To remove an air filter from a QFX3008-I Interconnect device (see Figure 108 on page 342
and Figure 109 on page 343):
1. Attach the ESD grounding strap to your bare wrist, and connect the strap to the ESD
point on the chassis.
2. Unscrew the captive screw, located on each cover panel, counterclockwise using your
fingers. If you cannot easily unscrew the captive screw with your fingers, use the
screwdriver.
3. Hold the screw on the cover panel with one hand while holding the handle with the
other. Pull firmly on the screw to detach the cover panel.
4. Pull the air filter tab to the side and slide the filter out of the fan tray module.

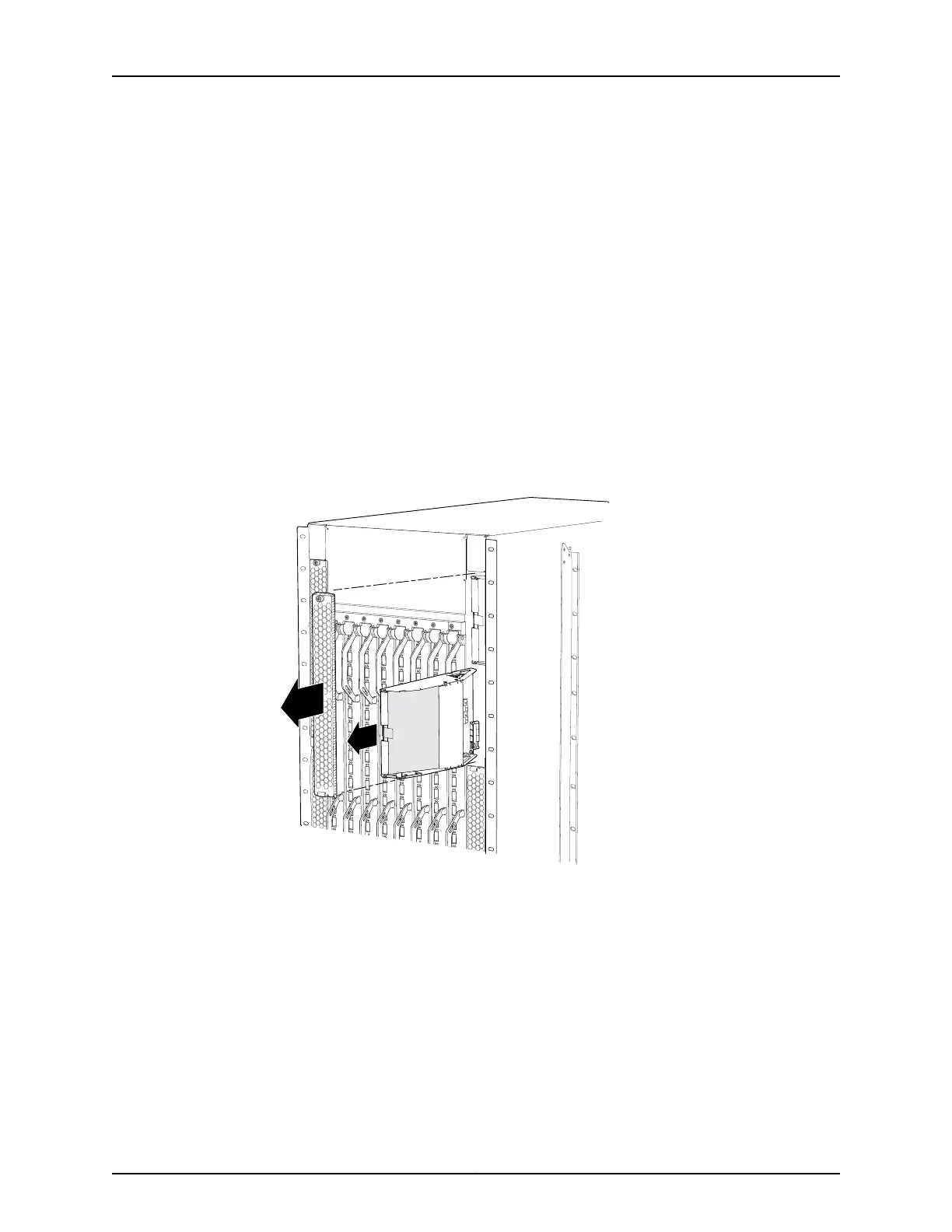

Figure 108: Removing a Side Fan Tray from a QFX3008-I Interconnect
Device
Copyright © 2012, Juniper Networks, Inc.342
QFX3000 Hardware Documentation
