Table 10: Physical Specifications for the QFX3500 Device Chassis (continued)
ValueDescription
•
With FRUs installed: 30.8 lb (14 kg)
•
Without FRUs installed: 23.8 lb (11 kg)
•
AC power supply: 2.2 lb (1 kg)
•
Fan tray: 0.9 lb (0.4 kg)
•
Management board: 1.3 lb (0.6 kg)
Weight
Related
Documentation
Rack Requirements for a QFX3500 Device on page 96•
• Cabinet Requirements for a QFX3500 Device on page 99
• Mounting a QFX3500 Device in a Rack or Cabinet on page 261
• Installing and Connecting a QFX3500 Device on page 259
• Installing and Removing QFX3500 Device Hardware Components on page 361
Front Panel of a QFX3500 Device
The front panel of the QFX3500 device consists of the following components:
•
Management board
•
Chassis serial number label and ESD point
NOTE: The chassis serial number ID label is located on a sliding panel to
the right of the fan tray on a QFX3500 device (see Figure 35 on page 66).
To use the sliding panel as an ESD point, pull the sliding panel partway out
of the chassis, and connect a clip-style or tape-style ESD grounding strap
to the panel.
•
Fan trays
•
Power supplies
Figure 34 on page 65 and Figure 35 on page 66 show the front of a QFX3500 device.

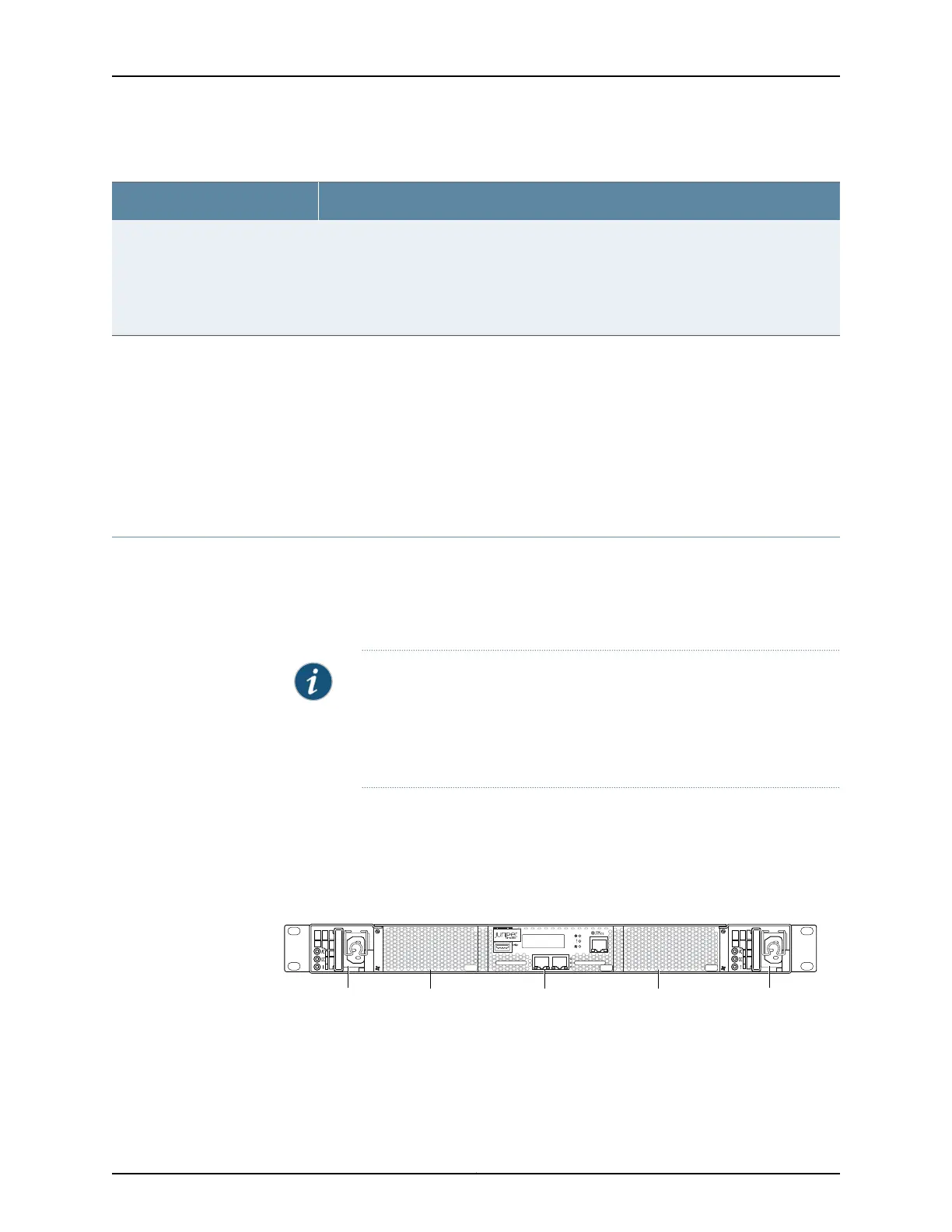

Figure 34: QFX3500 Device Front Panel
1
1
0
0
QFX3500-48S4Q
CO
C
O
N
C1
OK/
g050012
Management
board
Fan tray 0 Fan tray 1
AC power
supply 0
AC power
supply 1
65Copyright © 2012, Juniper Networks, Inc.
Chapter 4: QFX3500 Overview
