Table 77: AC Power Supply LEDs on a QFX3008-I Interconnect Device (continued)
DescriptionStateColorLED
Indicates one of the following:
•
Power supply is disconnected from power
feed.
•
AC input voltage is not within normal
operating range.
•
No power input.
OffUnlitPower
•
Power supply is functioning normally.GreenSolid
Related
Documentation
AC Power Specifications for a QFX3008-I Interconnect Device with Single-Phase
Wiring Trays on page 137
•
• Power Requirements for a QFX3008-I Interconnect Device on page 139
• AC Power Cord Specifications for a QFX3008-I Interconnect Device with Single-Phase
Wiring Trays on page 139
• Connecting AC Power to a QFX3008-I Interconnect Device with Single-Phase Wiring
Trays on page 239
Wiring Tray LEDs on a QFX3008-I Interconnect Device
A wiring tray has three LEDs on its faceplate. The text 1, 2, or 3 next to the LEDs indicates
which appliance inlet on the single-phase wiring tray or which phase on the three-phase
wiring tray the LED corresponds to. See Figure135 on page 395 and Figure 136 on page 396.

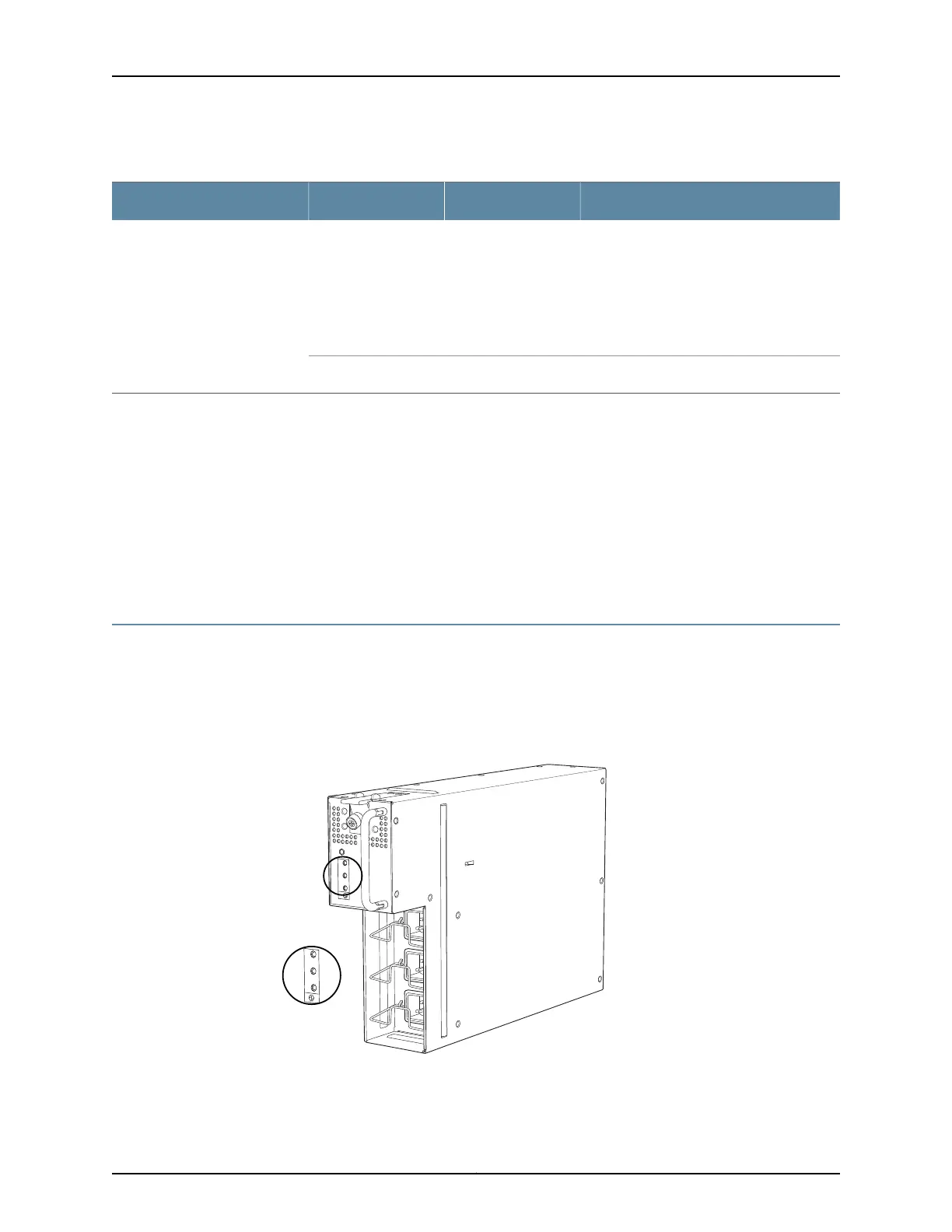

Figure 135: AC Single-Phase Wiring Tray LEDs on a QFX3008-I
Interconnect Device
PHASE 1
3
2
1
PHASE 2
PHASE 3
3
2
1
g050160
Status LEDs
395Copyright © 2012, Juniper Networks, Inc.
