Ensure that you have the following parts and tools available to remove a bottom air filter
from a QFX3008-I Interconnect device:
•
Electrostatic discharge (ESD) grounding strap
To install an air filter (see Figure 110 on page 344 and Figure 111 on page 345):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to one of the ESD points on the chassis.
2. Align the filter with the fan tray module so that it slides into the chassis at a slant.
3. Slide the air filter all the way into the slot.
4. Hold the handle and the screw of the cover panel and align the cover panel at a slight
angle to attach the handle end to the slot.
5. Push the screw end of the cover panel into the chassis.
6. Tighten the captive screw on the cover panel using your fingers.

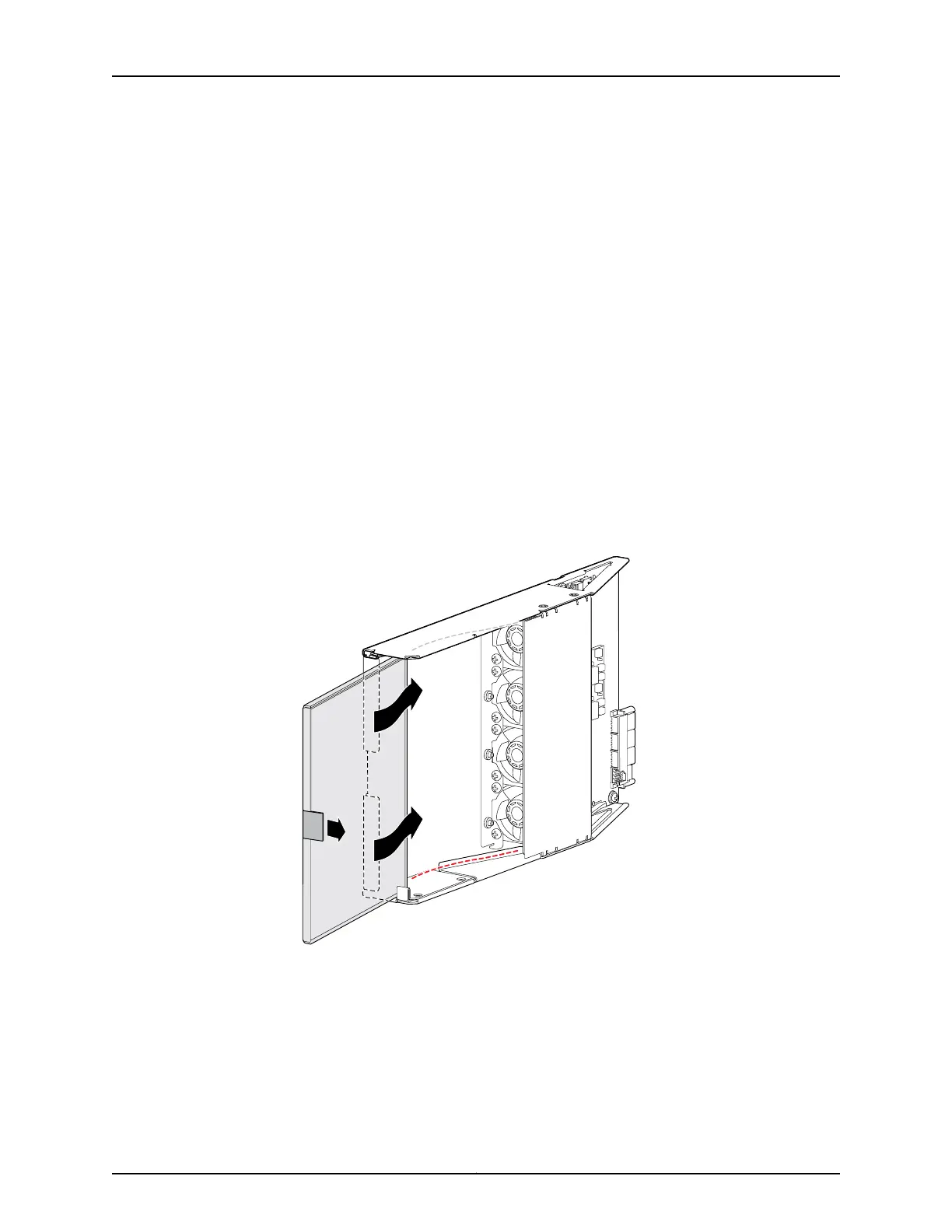

Figure 110: Installing a Side Air Filter in a QFX3008-I Interconnect Device
Side Fan Tray
g050120
