NOTE: One person must be available to lift the QFX3100 Director device
while another secures it to the rack.
CAUTION: If you are mounting multiple units on the rack, mount the heaviest
unit at the bottom and mount the others from bottom to top in order of
decreasing weight.
To mount the QFX3100 Director device on two posts in a rack:
1. Place the QFX3100 Director device on a flat, stable surface.
2. Align one mid-mount bracket to the mid-mount bracket holes near the center of the
side of the QFX3100 Director device. Ensure that the bracket is aligned with the
mounting holes and that the bracket face is facing the rack post.
3. Attach the mounting bracket to the QFX3100 Director device.
4. Mount the attached mounting bracket to the rack post. Tighten all screws.
5. Attach the mounting bracket on the opposite end of the same side to the QFX3100
Director device and mount it to the rack post. Tighten all screws.
6. Repeat this procedure for the mounting brackets on the opposite side of the QFX3100
Director device. Tighten all screws.
7. Ensure that the QFX3100 Director device chassis is level by verifying that all screws
on one side of the rack are aligned with the screws on the other side. See Figure 57 on
page 216.

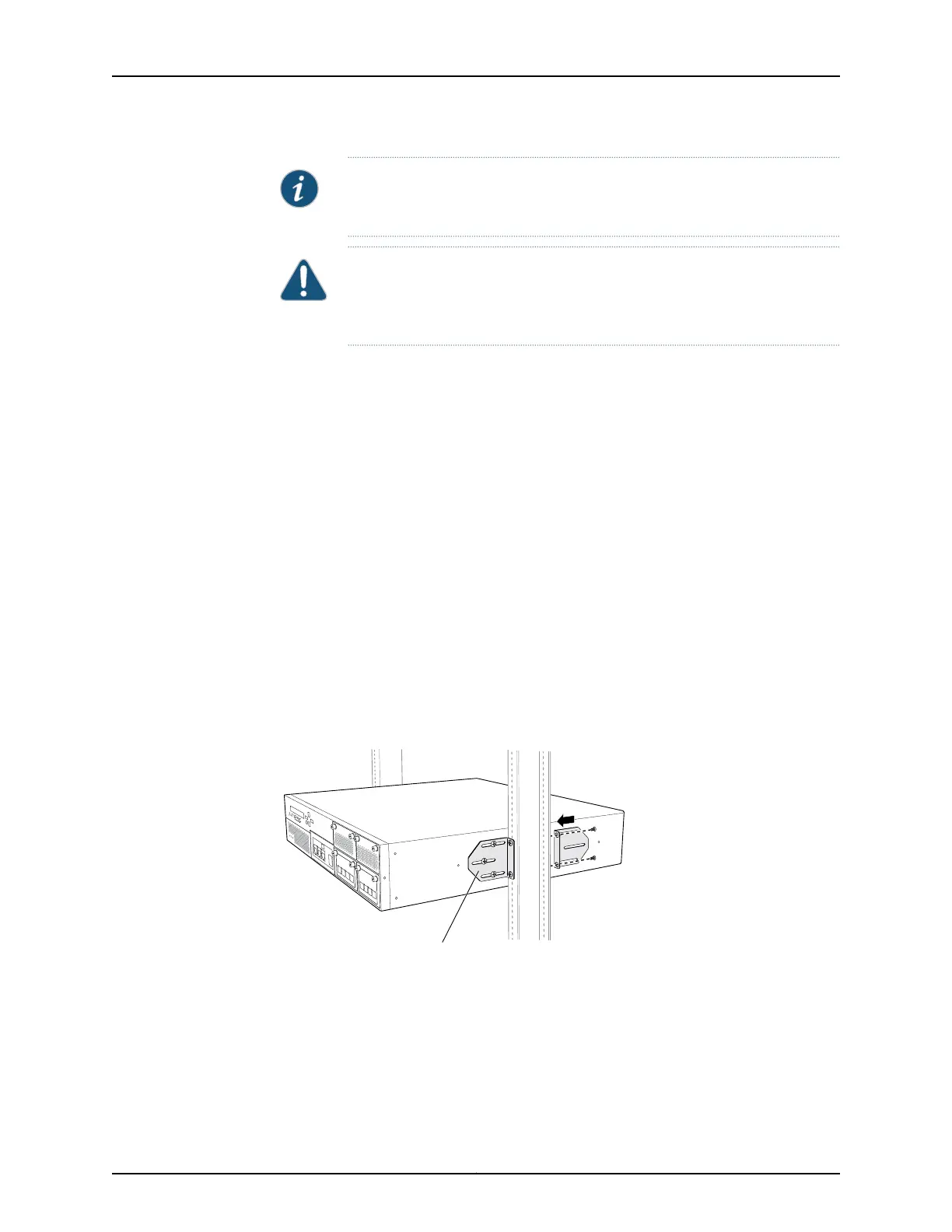

Figure 57: Mounting the QFX3100 Director Device on Two Posts in a Rack
Attach the front bracket to the chassis, and secure
the chassis to the post. Attach the rear bracket to the
other side of the post, and secure the chassis to
the rear bracket, adjusting the bracket width as needed.
g050062
Related
Documentation
Rack-Mounting and Cabinet-Mounting Warnings on page 179
Installing and Connecting a QFX3100 Director Device on page 213
Connecting AC Power to a QFX3100 Director Device on page 218
