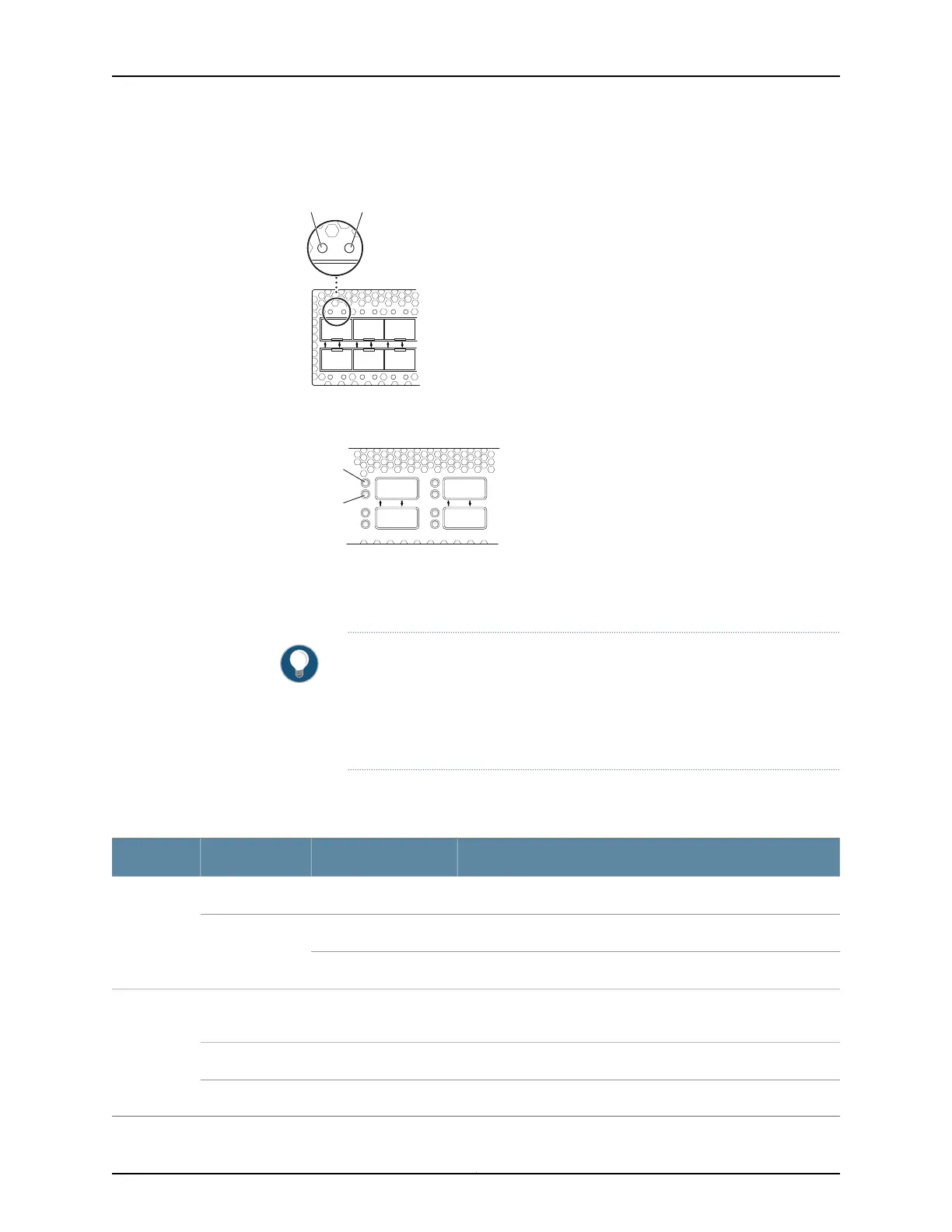

Figure 139: LEDs on the SFP+ Access Ports
0 1 2 3 4 5
g050019
Link/Activity
LED
Status
LED
Figure 140: LEDs on the QSFP+ Uplink Ports
QSFP+ uplink port LEDs
Link/Activity
LED
Status
LED
LA
ST
LA
ST
LA
ST
LA
ST
Q0 Q1 Q2 Q3
g050018
The LEDs labeled Link/Activity LED in Figure 139 on page 400 and Figure 140 on page 400
indicate link activity or faults. The LEDs labeled Status LED in Figure 139 on page 400 and
Figure 140 on page 400 indicate link status.
TIP: By default, all access ports are configured as Ethernet interfaces. If you
insert a Fibre Channel transceiver, the LEDs do not light until you configure
the port as a Fibre Channel interface in Junos OS. Likewise, the LEDs do not
light if you insert an Ethernet transceiver in a port configured as a
Fibre Channel interface.
Table 81 on page 400 describes the SFP+ access port LEDs.
Table 81: Network Port LEDs on SFP+ Access Ports on a QFX3500 Device
DescriptionStateColorLED
No link is established, there is a fault, or the link is down.OffUnlitLink/Activity
A link is established, but there is no link activity.On steadilyGreen
A link is established, and there is link activity.Blinking
No transceiver is installed in the port, the port is configured for a
different interface, or the transceiver is not supported.
OffUnlitStatus
An Ethernet transceiver is installed in the port.On steadilyGreen
A Fibre Channel transceiver is installed in the port.On steadilyAmber
