BeneVision N22/N19 Patient Monitor Operator’s Manual 10 - 3
10.3 ECG Display

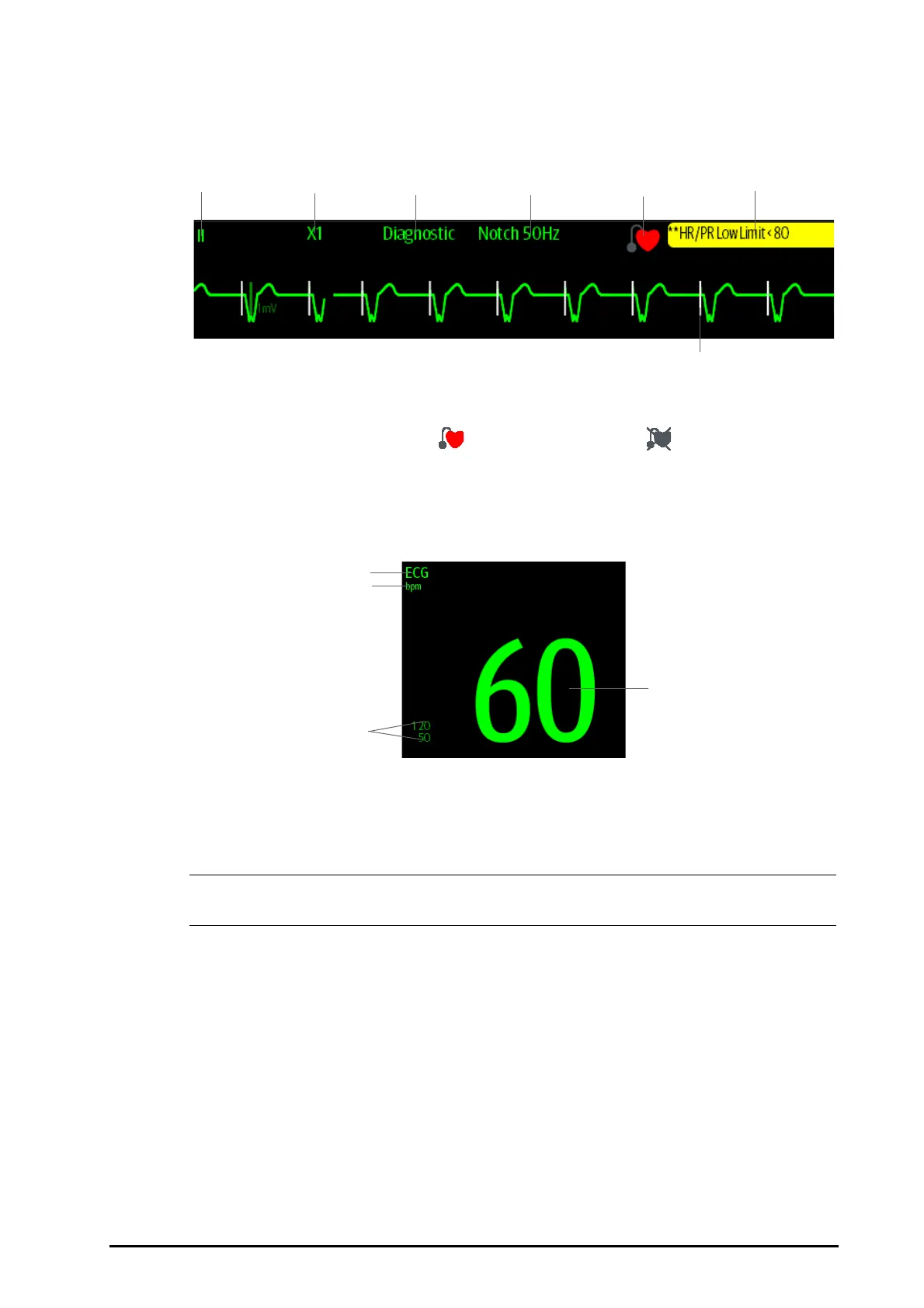

The following figures show the ECG waveform and numeric areas. Your display may be configured to look
slightly different.
• The ECG numeric area and waveform area are configured to be different for different lead type and
ECG settings.
(1) ECG lead label of the displayed waveform (2) ECG waveform gain
(3) ECG filter mode (4) Notch filter status
(5) Paced status: If
Paced is set to Yes, is displayed. If Paced is set to No, is displayed.
(6) HR/PR alarm message
(7) Pace pulse mark: If
Paced is set to Yes, the pace pulse markers “|” are shown on each ECG waveform
when the patient has a paced signal.
(8) Parameter label (9) HR unit
(10) HR alarm limits (11) HR value
(1) (2) (3) (4) (5) (6)
(7)
