19 - 6 BeneVision N22/N19 Patient Monitor Operator’s Manual
For more information, see the Vigilance II operator’s manual for the operation of the monitor.
WARNING
• Calibrate the Vigilance II monitor before monitoring. For more information, see the Vigilance II
operator’s manual for the calibration instructions.
NOTE
• For the Vigilance II monitor, Flow Control must be set to 2 seconds.
19.5.2 Connecting to the Vigileo Monitor

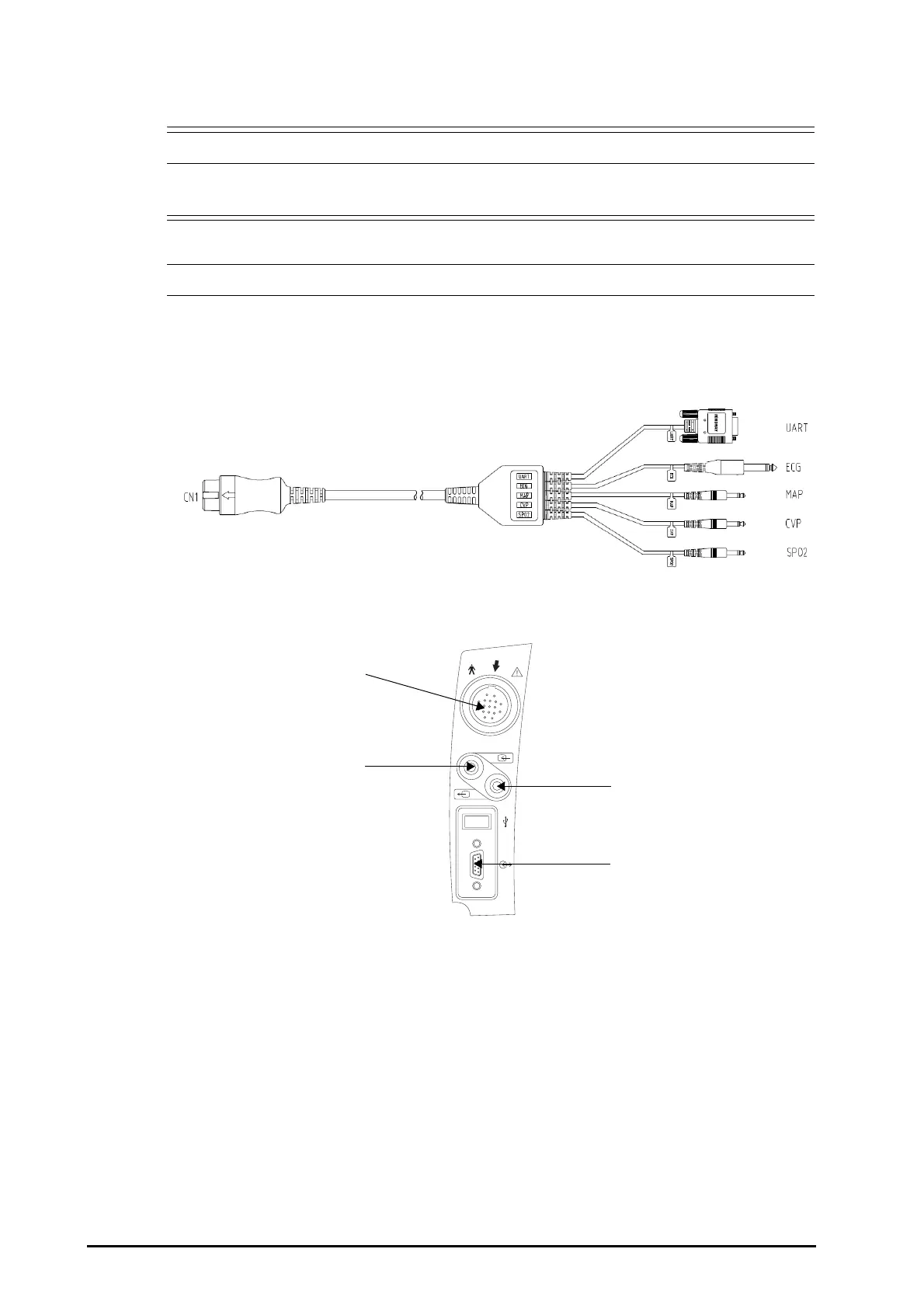

The following figure shows the CCO/SvO
2
cable which is used to connect this monitor to the Vigileo monitor.
The following figure shows the rear housing connectors of the Vigileo monitor.
To connect the Vigileo monitor, follow this procedure:
1. Connect the end of the CCO/SvO
2
cable marked CN1 to the CCO/SvO
2
module.
2. Insert the CVP signal end of the CCO/SvO
2
cable into the analog signal input port on the rear housing of
the Vigileo monitor.
3. Insert UART end of the CCO/SvO
2
cable into the serial port on the rear housing of the Vigileo monitor.
4. Enter the
Serial Port Setup menu of the Vigileo monitor, and make the following settings:
â—† Device: IFMout
â—† Baud Rate: 19200
(1) Patient Optical Module (OM) (2) Analog Input
(3) Analog Output (4) Serial Port
OM
(1)
(2)
(4)
(3)
