18.4 Accessing the On-screen ScvO
2
Guide
The monitor provides the on-screen ScvO
2
guide to help you understand ScvO
2
monitoring principles,
functions, and operating procedure. To access the on-screen ScvO
2
guide, follow this procedure:
1. Select the ScvO
2
numeric area to enter the ScvO2 menu.
2. Select the
Introduction tab.
3. Select the desired tab of
Summary, Target Patients, Points To Note, or Operation Guides.
18.5 ScvO
2
Equipment to Patient Connection
18.6 Measuring ScvO
2
To perform the ScvO
2
measurements, follow this procedure:
1. Apply the central venous catheter.
2. Place one end of the fiberoptic probe into the central venous catheter through the distal lumina, and
connect the other end to the CeVOX optical module.
3. Plug the CeVOX cable into the ScvO
2
module.
4. If you see the message
Calibration Required, calibrate the ScvO
2
before performing the measurements.
For more information, see
18.7 ScvO2 Calibration.
5. Check the reading in the ScvO
2
numeric area.
• To avoid installation failure, ensure that the proper fiberoptic probe is selected.
• The monitor may only be regarded as a device providing early warning. If there is an indication of a
trend towards de-oxygenation of the patient, blood samples must be taken and tested on a
laboratory oximeter in order to arrive at a decision concerning the condition of the patient.
• Incorrect placement of the fiberoptic probe can lead to vessel perforation. Therefore, check the
correct position of the probe as indicated in the probe’s instructions for use.

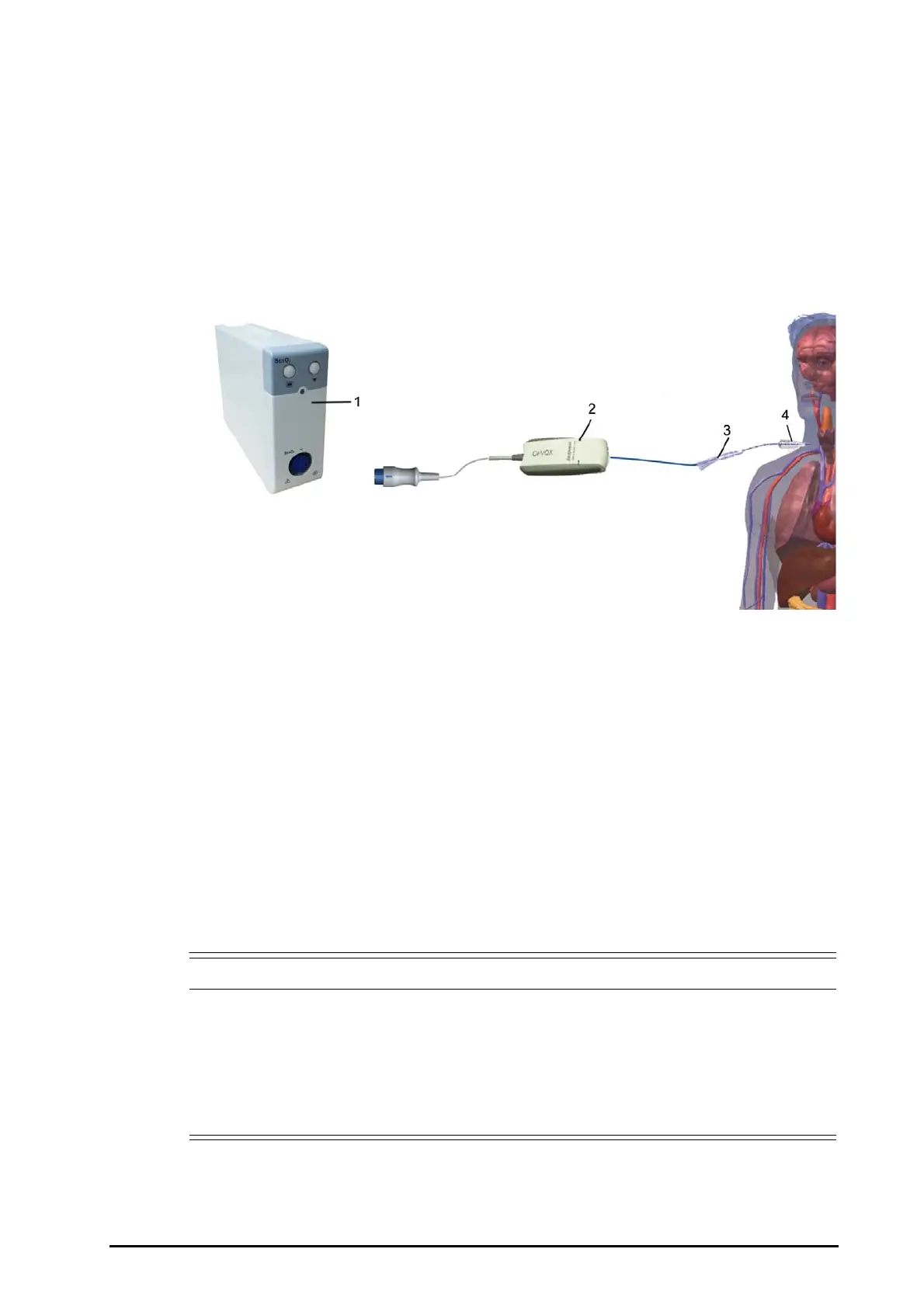

(1) ScvO
2
module (2) CeVOX optical module
(3) CeVOX fiberoptic probe (4) Central venous catheter
