25 - 2 BeneVision N22/N19 Patient Monitor Operator’s Manual
25.1 tcGas Introduction
This monitor can connect a Radiometer TCM monitor for continuous transcutaneous blood gas monitoring.
This monitor can display, store and review measurements from TCM monitor, as well as present related alarms.
On this monitor, you can separately set the level of tcGas related alarms and switch on or off alarm recording;
you can also view TCM monitor settings of alarm limits and alarm switch.
This monitor can integrate the following TCM monitors:
â– TCM CombiM
â– TCM TOSCA
25.2 tcGas Safety Information
• TCM CombiM monitor and TCM TOSCA monitor are manufacutred by Radiometer Medical ApS. This
company provides the technology for measuring tcGas parameters. We only provide the connection
between this monitor and TCM monitor.
• If you have any doubts about the operation and maintenance of the TCM monitor, please see TCM
monitor operator’s manual or directly contact Radiometer Medical (www.radiometer.com).
• Fully observe the TCM monitor’s operator’s manual to make settings and to connect the monitor
with a patient.
• For the intended use and contraindication of the TCM monitors, see their operator’s manuals.
25.3 Connecting a TCM Monitor

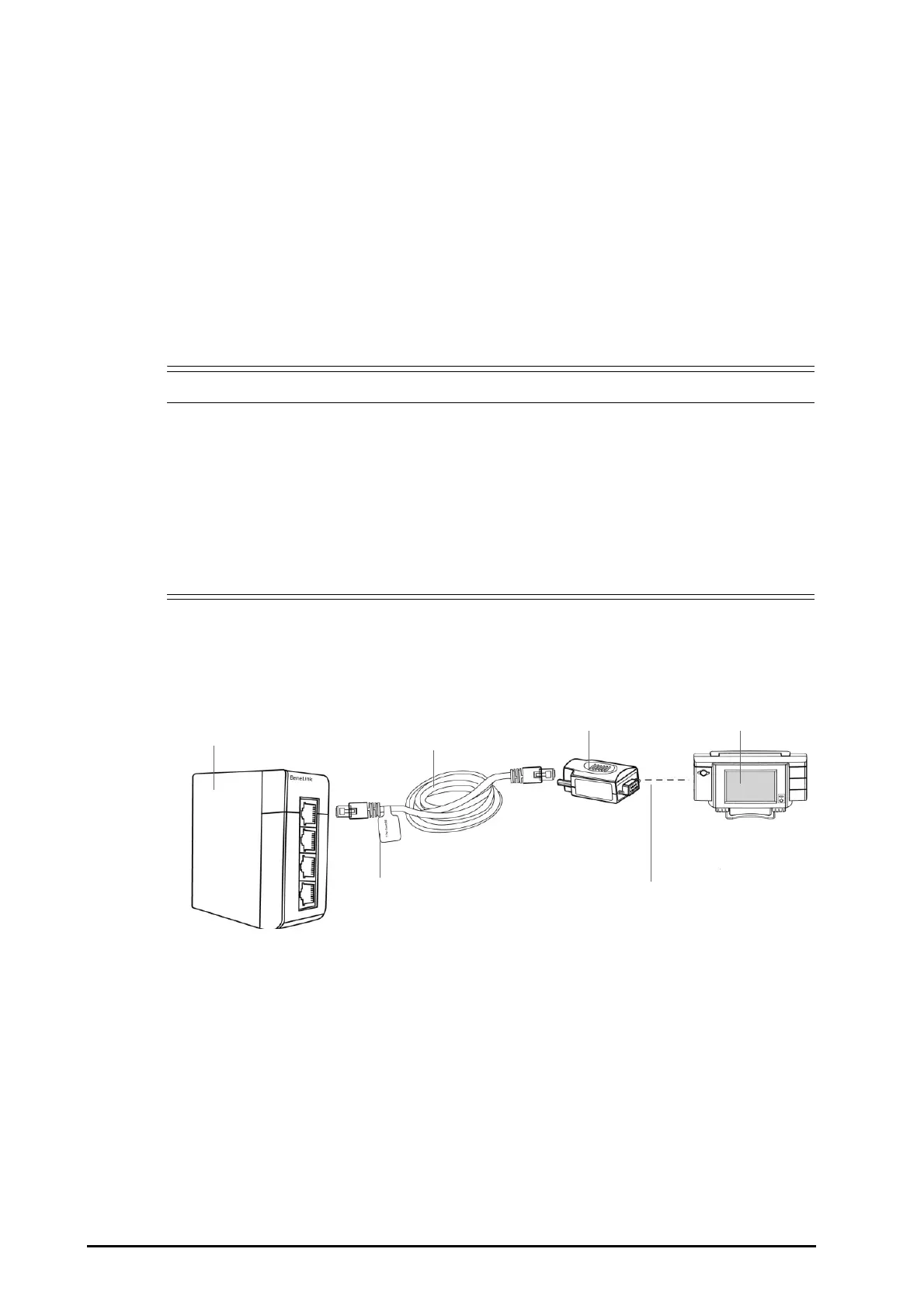

The TCM monitor connects with BeneLink module through an ID adapter, see the picture below.
To connect the TCM monitor, follow this procedure:
1. Insert a BeneLink module into the SMR.
2. Connect the ID adapter that matches the TCM monitor to the BeneLink module with an RJ45 connecting
cable.
3. Connect the ID adapter to the serial port (COM port) of the TCM monitor with Mindray type C serial port
adapting cable (PN: 009-001769-00) and an interface cable provided with the TCM monitor.
(1) BeneLink Module (2) Label
(3) RJ45 connecting cable (4) ID Adapter
(5) Type C serial port adapting cable & TCM interface cable (6) TCM monitor
