2.3.1.2 Main Unit for Separate Installation
If the main unit and the primary display are separately installed, besides the connectors described in
2.3.1.1 Main Unit for Combined Installation, the main unit also provides connectors at the rear.
2.3.2 Displays
The displays are used to display system information, alarm messages, parameter numerics, waveforms, and so
on. The displays integrate audible and visual alarms and provide USB connectivity. There are two display sizes
available: the 22-inch display and the 19-inch display. The monitor supports a primary display, a secondary
display, and a iView display.
2.3.2.1 Combined Primary Display
The primary display can be installed with or separately from the main unit, either horizontally or vertically.
The following picture shows the indicators and connectors on the primary display when it is installed with the
main unit.
(12) USB connectors: available only when iView module is configured. They connects USB devices for the iView, for
example keyboard and mouse.

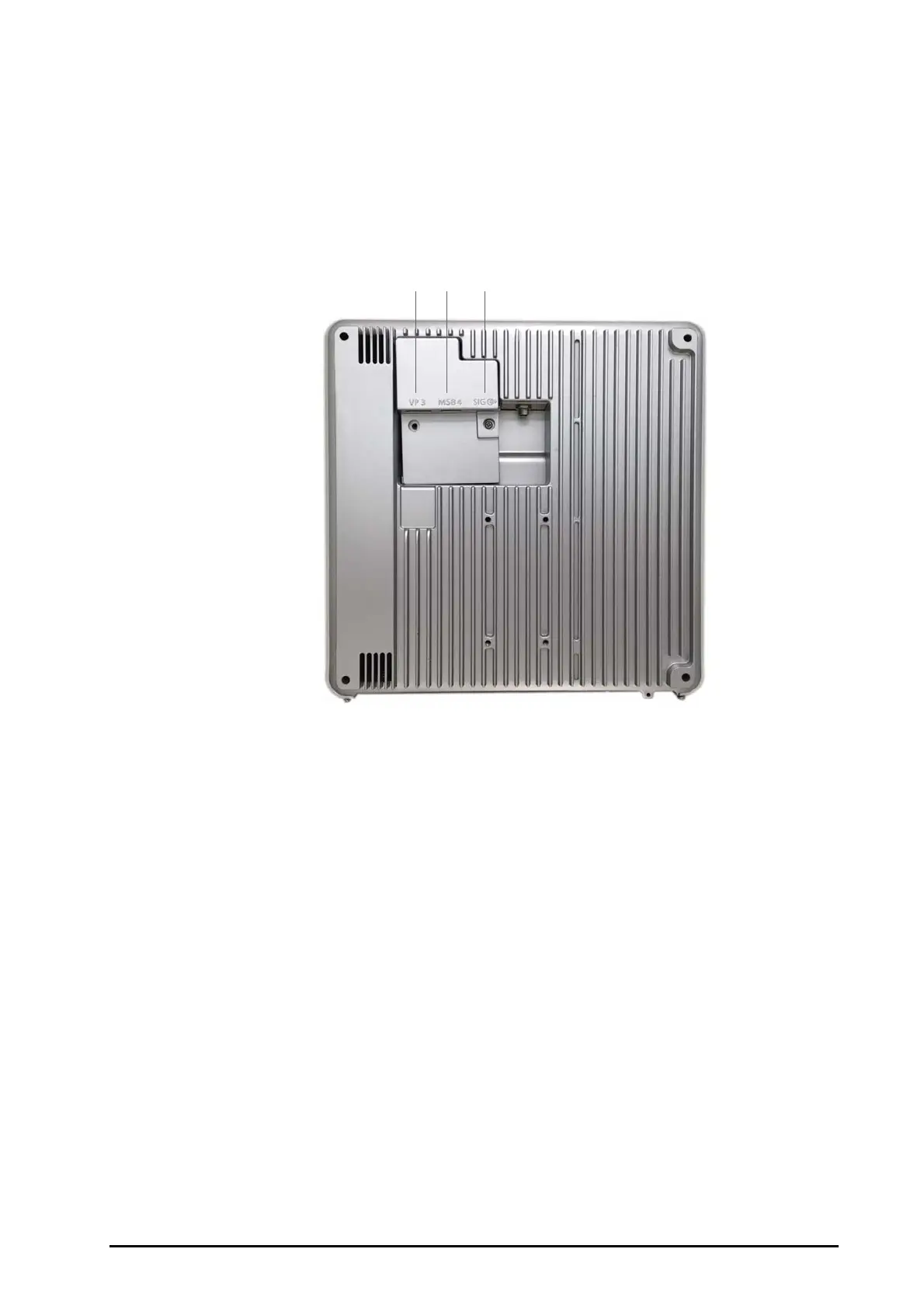

(1) Video output connector (VP3): connects the VP connector on the separated primary display.
(2) Serial bus connector (MSB4): connects the serial bus hub connector (SBH) on the separated
primary display.
(3) Signal input connector (SIG): connects the SIG1 connector on the separated primary display.
