Adjusting the Images That Were Taken
FQ2-S/CH User’s Manual
111
3
Taking Images
• Measurement Data That Can Be Logged
The values below can be logged as measurement data.
Edge Position Compensation
This position compensation item detects an edge in the set direction.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge.
When an edge is recognized, the image is adjusted so that the edge appears at the position it was in when it
was registered.
Parameter Setting Description
Judgement
-2: No judgement (not measured)
0: Judgement is OK
-1: Judgement is NG
-15: Out of range error
This is the judgment result.
Scroll X -99,999.9999 to 99,999.9999 This is the amount of position compensation for the X
coordinate.
Scroll Y -99,999.9999 to 99,999.9999 This is the amount of position compensation for the Y
coordinate.
Correlation 0 to 100 This is the correlation.
Position X -99,999.9999 to 99,999.9999 This is the X coordinate of the position where the model
was found.
Position Y -99,999.9999 to 99,999.9999 This is the Y coordinate of the position where the model
was found.

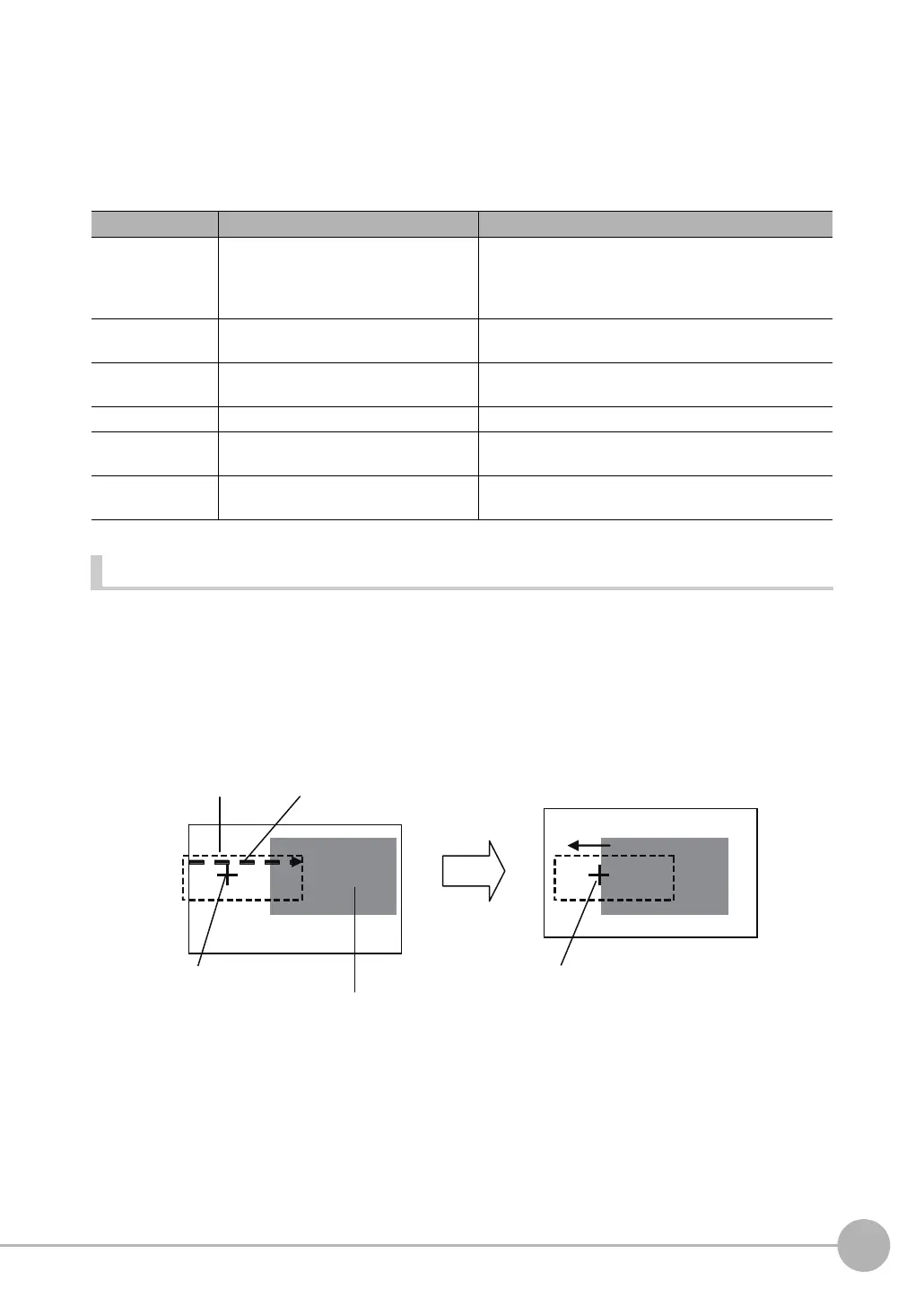

Edge search direction
Measurement region
Registered position of the edge
Color of edge to be found
The image is adjusted so that the edge
appears at the position it was in when it
was registered.
To Next Page
