Edge Rotation Position Compensation
This position compensation item detects an edge in two directions.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge. Two edge positions are detected.
The image is adjusted so that the two edge positions match the positions when the edge positions were
registered.
[Image] − [Image adjustment]
1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [Edge rot. pos. Comp.]
3 Make any detailed settings as required for the position compensation processing.
Refer to Detailed Settings for Edge Rotation Position Compensation, below.
4 Press [OK].
5 Press [Back].

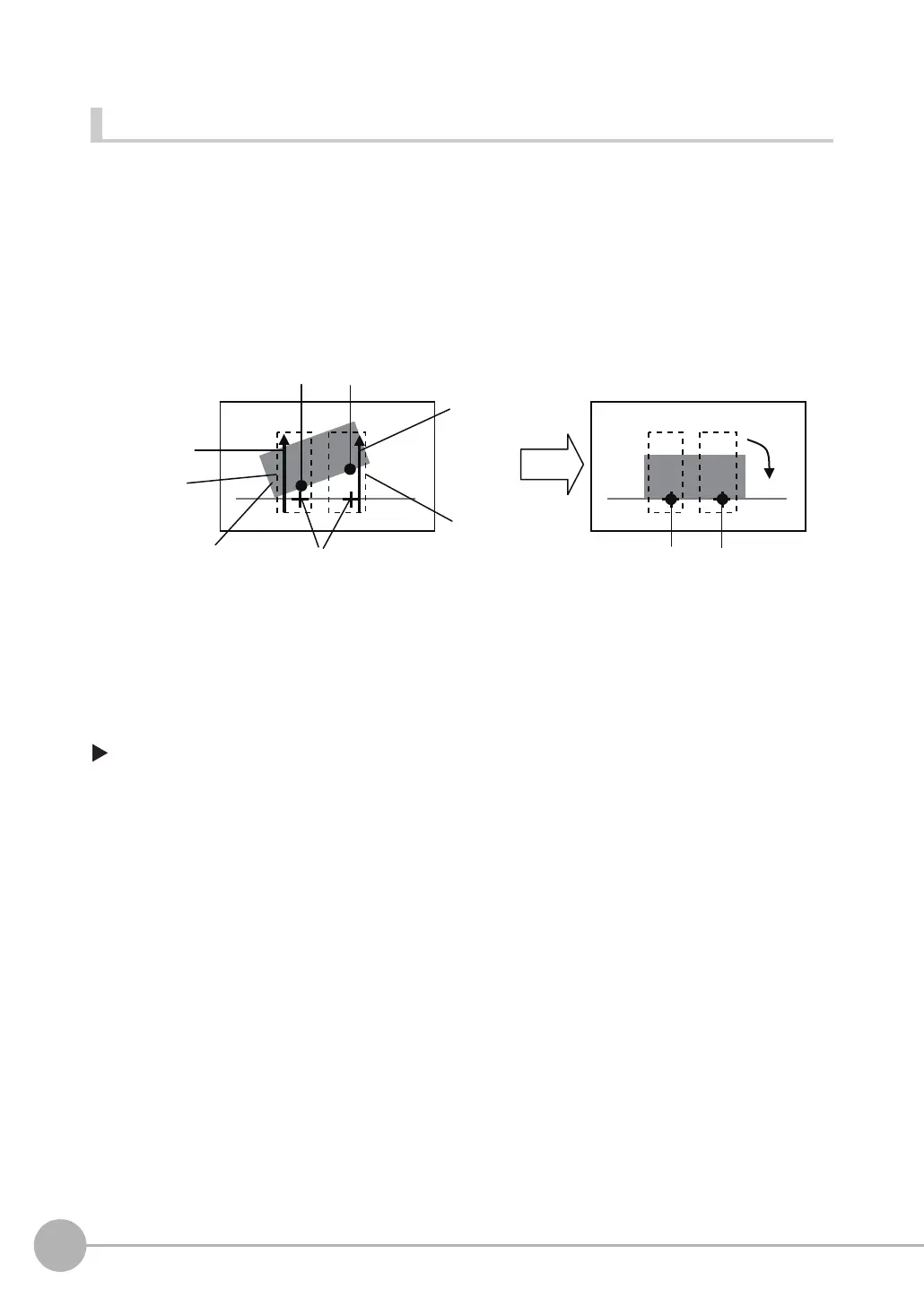

Two detected edge positions
Edge search
direction
for edge 0
Measurement
region for edge 0
Color of edge
to be found
Registered position of the edge
Edge search
direction for edge 1
Measurement
region for edge 1
The image is adjusted so that the two
detected edge positions appear at the
positions they were in when the edge
was registered.
