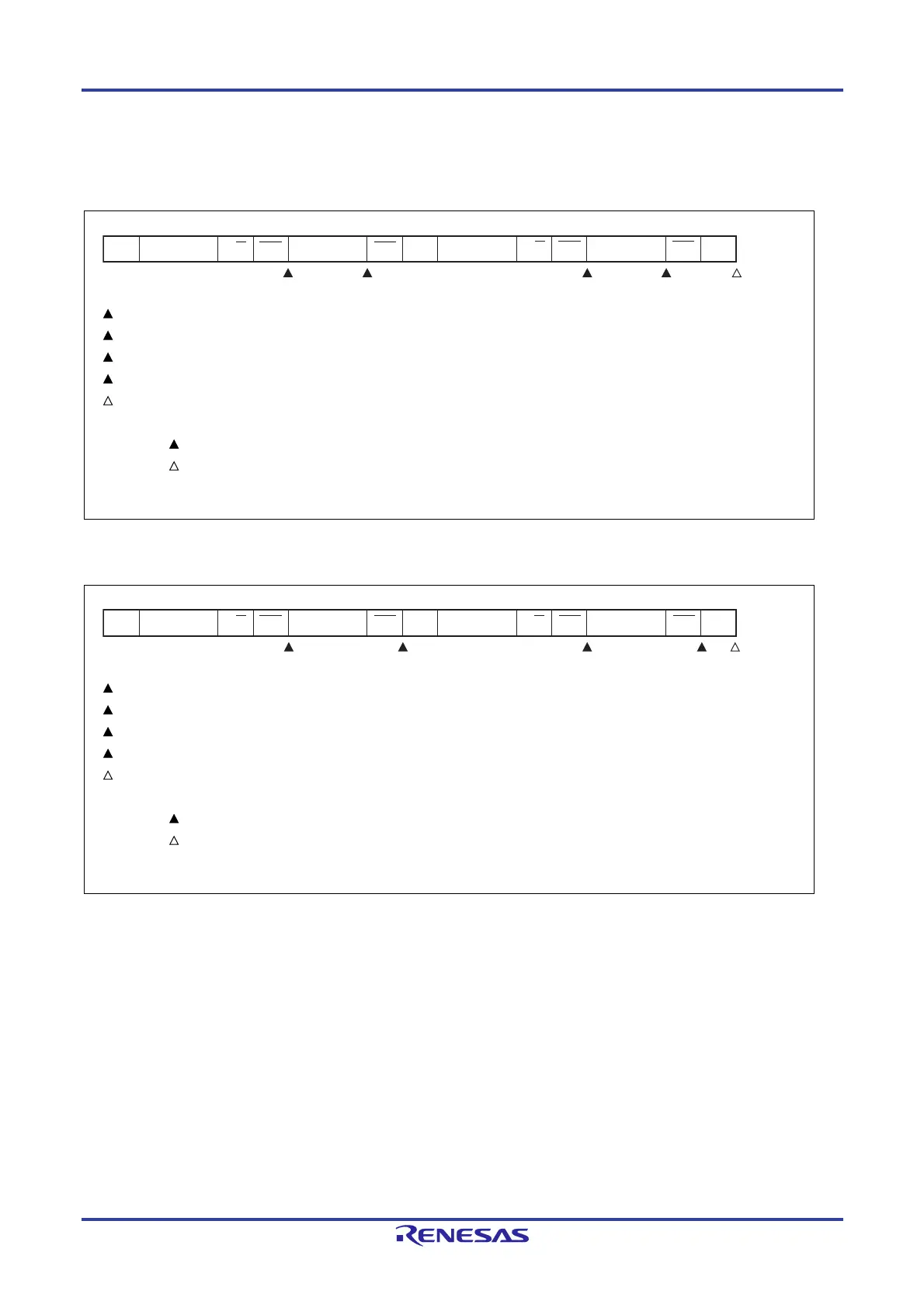

(b) Start ~ Address ~ Data ~ Start ~ Address ~ Data ~ Stop
(i) When WTIM0 = 0 (after restart, matches with SVA0)
1: IICS0 = 0001×110B
2: IICS0 = 0001×000B
3: IICS0 = 0001×110B
4: IICS0 = 0001×000B
5: IICS0 = 00000001B
Remark : Always generated
: Generated only when SPIE0 = 1
×: Don’t care
(ii) When WTIM0 = 1 (after restart, matches with SVA0)
1: IICS0 = 0001×110B
2: IICS0 = 0001××00B
3: IICS0 = 0001×110B
4: IICS0 = 0001××00B
5: IICS0 = 00000001B
Remark : Always generated
: Generated only when SPIE0 = 1
×: Don’t care
ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK
3 4 5 2
1
ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK
3 4 5 2
1
