Ricoh MP C3004 - Page 324

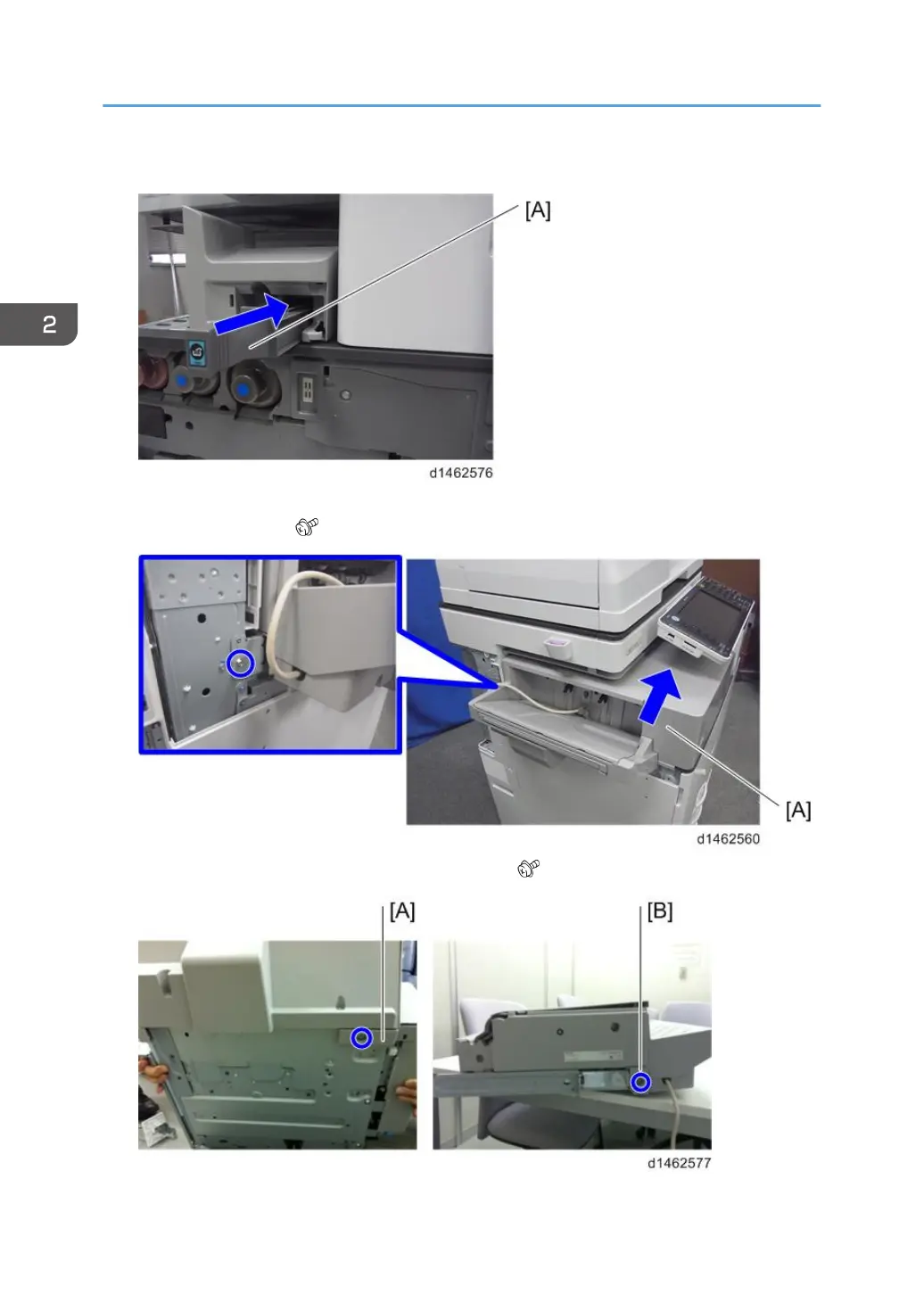

10. Insert the hopper [A].
11. Slide the finisher [A] along the rail of the bottom plate from the left-hand side of the
machine to attach it ( ×1).
12. Attach the components [A] and [B] to the finisher ( ×2).
2. Installation
316
